12V dc Motor,FT-280SA,used for Door Lock

12V dc Motor,FT-280SA,used for Door Lock thumbnail-1
12V dc Motor,FT-280SA,used for Door Lock photo-1
Negotiable MOQ: 10000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DONG HUI
Model Number:
FT-280SA
Contact Supplier Request Quote Chat Now
Shenzhen Xin Dong Hui Motor Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shen zhen or Hong kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name DONG HUI
Model Number FT-280SA
Usage Car, Other
Certification ROHS, Other, ROHS, ISO:9001:2000
Type Micro Motor
Torque 35.3mN.m
Construction Permanent Magnet
Commutation Brush
Speed(RPM) 13480rpm no load
Continuous Current(A) 0.11A
Output Power 5.69W
Voltage(V) 12V
Efficiency Other, 65.2%

Specifications

Door lock actuator motor
dia*L 24*30.5mm
Weight: 30g Approx
Application: Fax Machine / Door Lock Actuator

Specifications

Door lock actuator motor
dia*L 24*30.5mm
Weight: 30g Approx
Application: Fax Machine / Door Lock Actuator

The models we list below are part of our existing designs. We offer specific motor design for every customer.

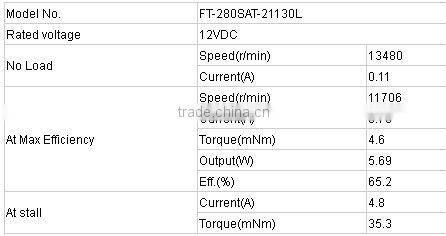

TECHNICAL DATA:

12V dc motor,FT-280SA,used for door lock

Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in   1mm=0.039in   1g=0.035oz

  • Door lock actuator motor
  • Fax machine motor
  • Dimension: dia. 24 x 18.3 Thk. x 30.5 L. shaft O.D. 2.0 mm
  • Basic Structure: SECD housing / Plastic end cap / Female terminal
  • Application: Fax Machine / Door Lock Actuator / Power Scissors
  • Weight: Approx. 30g

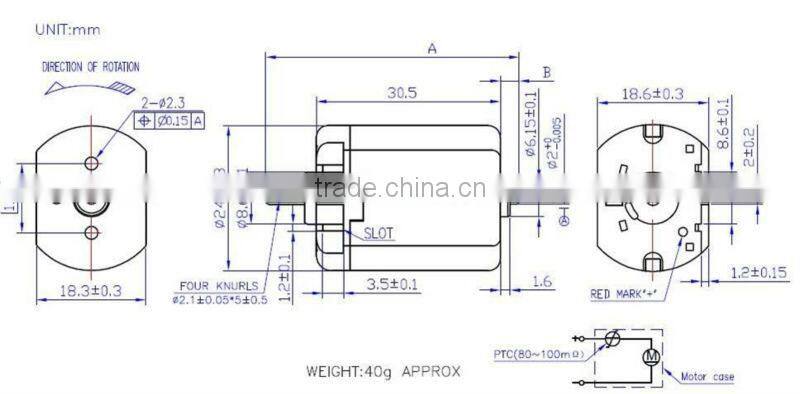

DIMENSION DRAWING:

12V dc motor,FT-280SA,used for door lock

PRODUCTION FLOW:
