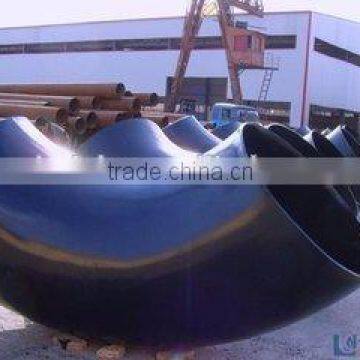

carbon steel 90Degree elbow&sch40 90 degree LR&SR seamless pipe elbow&ASTM A234WPB butt weld pipe fittings

Specifications

1.Size:1/2"-72"
2.Thickness:SCH5S~SCH160
3.Standard:ASME/DIN/JIS/GB/BS,ETC
4.Fast delivery and good quality is our advanta





Seamless Steel Butt Weld Fittings for Oil Pipeline

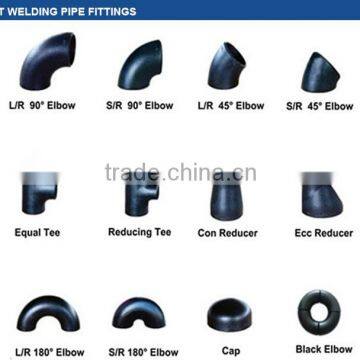

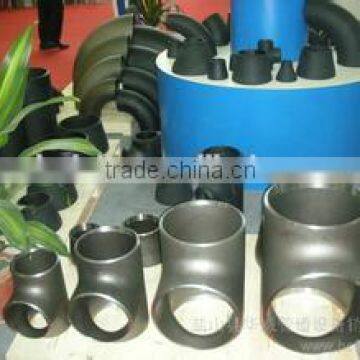

We are offering our clients with a high quality range of carbon steel butt-weld fittings which includes long radius elbows, short radius elbows, equal tees, concentric reducers, eccentric reducers, reducing tees, obtuse elbows, end caps and stub-ends in various schedules and material. Provided with full 3.1b certification, these are available in sizes from ½" - 48" nominal bore.



Butt Welded Fittings Material: Carbon steel  ASTM A234 WPB, ST37.0, ST37.2,ST35.4/8, ST42, ST45, STP G38, STP G42, STP T42, STB42, STS42,



Butt Welding Fittings Size : 1/2" to 72", DN15 to DN1800



Butt Weld Fittings Wall Thickness: SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS,DIN, JIS standard thickness



Seamless Steel Welded Fittings Standard: ASTM A234, ASTM A420, ANSI/ASME B16.9/B16.28/B16.25, JIS B2311-1997, JIS B2311/B2312, DIN 2605-1/2615-1/2616-1/2617, DIN 28011, EN 10253-1 MSS - SP - 75



Seamless Carbon Steel Butt Welded Fittings Surface treatment: Transparent oil, rust-proof black paint or hot dipped galvanized.

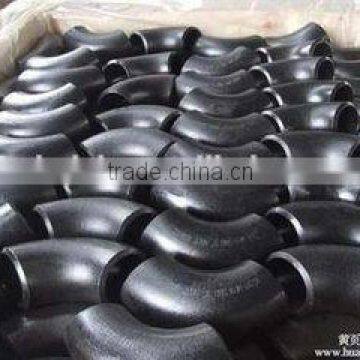

Seamless Steel Pipe Fittings Packing: Wooden case or wooden pallet or as per customers requirement



Carbon Steel Butt  Welded Pipe Fittings Test: Direct reading light spectrum, hydrostatic test ,X-ray detector, ultrasonic flaw detection ,magnetic powder detector.

Carbon Steel Butt Weld Seamless Pipe Fittings Application: Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, construction.







FORGED FLANGE







1) ANSI B16.5, ASME B16.47 FLANGE



Size range: 1/2" to 80"  DN15 to DN2000



Design: welding neck, slip on, blind, socket welding, threaded, lap-joint



Pressure: 150#, 300#, 600#,900#,1500#, 2500#



Wall thickness for welding neck flange: STD, SCH40, SCH80, SCH160. SCHXXS



Material: carbon steel A105, stainless steel  304/304L, 316/316L



Coating: black paint, yellow transparent paint, cold and hot dip galvanize



Package: seaworthy plywooden case, wooden pallet







2) EN1092-1 FLANGE



Size range: DN15 to DN2000



Design: type01 plate flange, type02 loose flange, type05 blind flange, type11 welding necking



             type12 slip on flange, type 13 threaded flange



Pressure: PN6, PN10, PN16, PN25, PN40, PN64, PN100



Material: carbon steel C22.8, S235, S235JR, P235GH, stainless steel: 304/304L, 316/316L



Coating: black paint, yellow transparent paint, cold and hot dip galvanize



Package: sea worthy plywooden case, wooden pallet







3) DIN FLANGE



Size range: DN15 to DN2000



Design: slip on flange DIN2573,2576,2502,2503, 2543,2545



             welding neck falnge DIN2631, 2632,2633,2634,2635



              blind flange DIN 2527 PN6, PN10, PN16, PN25, PN40



              threaded falnge DIN2565,2566,2567,2567



              loose flange DIN 2641,2642,2656,2673



Material: carbon steel ST37.2, stainless steel 1.4301, 1.4404







4) GOST FLANGE



Size range: DN15 to DN 2000



Design : plate falnge 12820-80, welding neck flange 12821-80



Pressure: PN6, PN10, PN16, PN25, PN40



Material: carbon steel CT-20, stainless steel 304/304L, 316/316L



Coating: rust-proof oil, cold and hot galvanize



Package: sea worthy plywooden case, wooden pallet







5) JIS B2220 FALNGE



Size ragne : 15A to 2000A



Design: SOP, BIND, SOH,



Puressure: 1K, 2K, 5K, 10K, 16K, 20K, 30K, 40K



Material: carbon steel SS400, stainless  steel SUS304, SUS316



Coating : rust-proof oil, cold  and hot galvanize



Packing: sea worthy plywooden case, wooden pallet
