Chemical Vacuum Drying for Li Ion Battery / vacuum drying machine
Brief Introduction of the vacuum oven / vacuum drying oven :
CY-DZF-6020-series is the advanced vacuum & Atmosphere drying oven installed with KFD25 adapter
and Gas inlet, Precision flow-meter with optional vacuum pump, which allow the gas purging, gas mixing under desired
pressure level and continuous inert gas flowing compared to conventional vacuum oven.
Specification of the vacuum oven.
Model | CY-DZF-6020 |

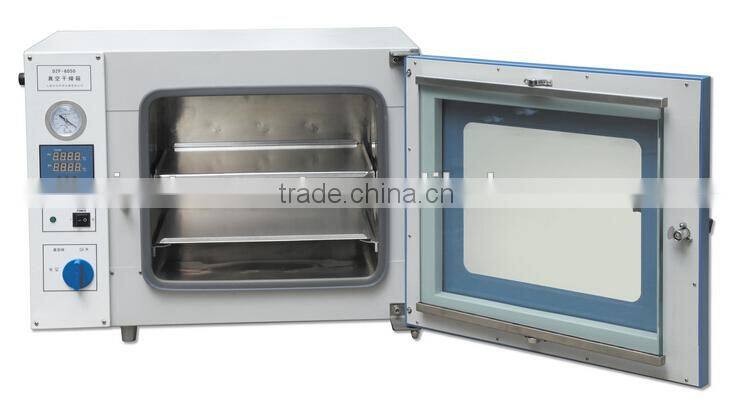

Chamber and Door | The chamber is structured with stainless steel and welded with bracing pieces. A good vacuum seal is achieved by silicone door gasket and positive latch door. Observation window consists of termpered glass and transparent polycarbonate shield. 2 stainless steel shelves are included to facilitate processing efficiency. |
Inner Chamber size | 300 mm x 300 mm x 275 mm (12 x 12 x 11", 25 Liter) |
Gas flowing/purging | A precise flow meter is installed in the front panel which ranges from 200 ~ 2000ml/min. One 1/4" swagelok tube fittings on the back panel to connect the gas supply. The gas is able to be continuously flowing into the chamber at a constant flow rate defined by user during operation. The oven can be purged by inert gas before operation. |
| Vacuum pump dose not include. Please order separately. One stage pump (For achieving a vacuum < 2 torr) Two stage pump (For achieving a vacuum < 700 m-torr) |
Working Voltage | 110VAC or 220VAC +/-10% selectable at option bar, 1000W Max. |
Heating Rate | 4~6 ºC/min |
| RT ~ 200°C for continuous 200°C ~ 250°C for <4hrs Maximum Heating Rate: 4~6 ºC/min |
| 30 segments programmable Built-in over-temperature protection PID precise temperature control Temperature uniformity: +/-5°C @ 100°C, 25" Hg at center 6"x6" area only |

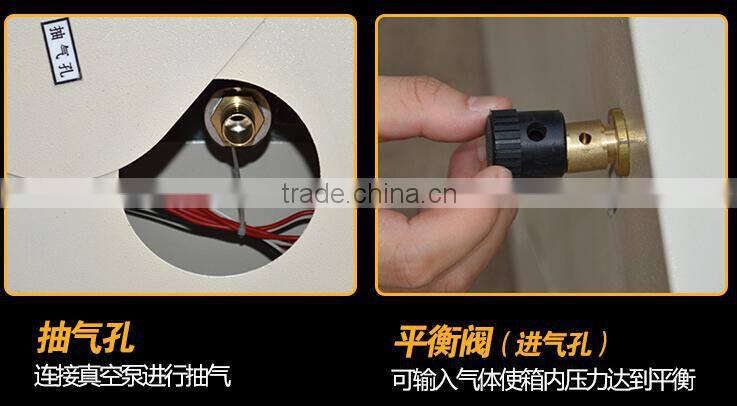

| KF-25 vacuum port connected on the back panel KF-D25 Flexible Stainless Steel Vacuum Hose (Bellows), 1 meter Two sets of KF-25 Quick Clamp with Rubber O-Ring This oven comes with a KF-25 vacuum connector. If you need KF-40 connector, please order the adptor of KF-25 to KF40 One KF25D vacuum port is used for quick connection to vacuum pump |
Dimensions | Oven: 650 x 610 x 530mm (L x W x H) |
Shipping Weight & Dimensions | 40" x 35" x 29" (L x W x H); 200 Lbs after crating |

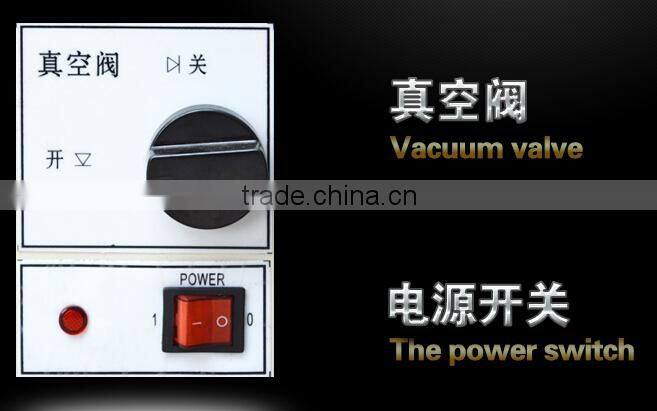

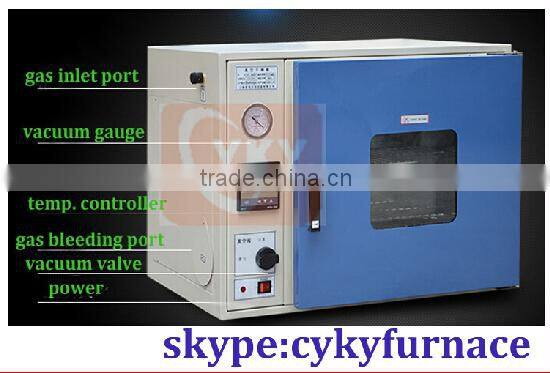

Vacuum oven display.
3 years warranty, whole lifespan free service and repairs.
