Dual Chamber Glove Box With Gas Purification System for Preparing Nano Materials, Li-ion Battery Materials, Catalysts, and Metal

Dual Chamber Glove Box With Gas Purification System for Preparing Nano Materials, Li-ion Battery Materials, Catalysts, and Metal thumbnail-1
Dual Chamber Glove Box With Gas Purification System for Preparing Nano Materials, Li-ion Battery Materials, Catalysts, and Metal thumbnail-2
Dual Chamber Glove Box With Gas Purification System for Preparing Nano Materials, Li-ion Battery Materials, Catalysts, and Metal thumbnail-3
Dual Chamber Glove Box With Gas Purification System for Preparing Nano Materials, Li-ion Battery Materials, Catalysts, and Metal photo-1
Dual Chamber Glove Box With Gas Purification System for Preparing Nano Materials, Li-ion Battery Materials, Catalysts, and Metal photo-2
Dual Chamber Glove Box With Gas Purification System for Preparing Nano Materials, Li-ion Battery Materials, Catalysts, and Metal photo-3
US$ 2,800 - 23,156 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
CYKY
Model Number:
CY- EQ-VGB-10-II-LD
Contact Supplier Request Quote Chat Now
Zhengzhou CY Scientific Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name CYKY
Model Number CY- EQ-VGB-10-II-LD
Power Electronic
Usage Other, glove box

Dual Chamber Glove Box with Gas Purification System for preparing nano materials, Li-ion battery materials, catalysts, and metalDual Chamber Glove Box with Gas Purification System for preparing nano materials, Li-ion battery materials, catalysts, and metal

Product Description

Brief introduction of the dual chamber glove box:

CY-VGB-10-II is a dual stainless steel glove box designed for researches in material science, chemisty, semiconductor, and related topics. The purification cylinder is made of BASF antioxidant materials from Germany and UOP water adsorbent materials from US in order to achieve a low water and oxygen concentration of lower than 1ppm, such that experiments can be conducted in a ultraclean and highly purified gas environment. It is integrated with vapor pressure control system, purity control system, automatic gas purity regeneration control system, autoalarm, and system data log recording. VGB-10-II is widely used in preparing nano materials, Li-ion battery materials, catalysts, and metallorganics.



Specification of the dual chamber glove box:


Working Voltage

220V AC, 50/60Hz, Single Phase

Max. Power Consumption

3KW

Glove Box Chamber
  • Case Material: Stainless Steel 304
  • Dimensions: 2400mm(L) x 800mm(W) x 930mm(H)
  • 12mm thick double layer laminated safety glass with corrosion protection
  • film for operating in a safe and easy manner


Chamber Condition
  • Water concentration: <1 ppm (20C, 1 atm)
  • Oxygen concentration: <1 ppm (20C, 1 atm)

Leak rate

<0.05 Vol% / hr (Depending on oxygen concentration inside the glove box)


Air-lock Chamber
  • Antechamber Dimensions: 385mm(Dia.) x 588mm(L)
  • Small Chamber Dimensions (for tools): 150mm(Dia.) x 300mm(L)
  • Max. vacuum level: 100 Pa


Working Gas
  • Operating gas: Inert gas such as N2, Ar, He
  • Regenerating gas: Mixture of H2 (10%) and Operating gas
    • o For purification system with only water adsorbing function,
    •  Regenerating gas will be the same as Operating gas


Gas Purification System
  • Automated Regeneration Process
  • Automated water and oxygen removal
  • Purification Cylinder: made of BASF antioxidant materials and UOP water
  •  adsorbent materials
  • Moisture removal capacity: 1.5KG
  • Oxygen removal capacity: 180L


Filter System
  • Organic Solvent Filter System filled with replaceable activated carbon

Control system
  • Siemens PLC control system with 6" touch screen display
    • o Water concentration: 0 - 1000 ppm with an accuracy of 0.1 ppm
    • o Oxygen concentration: 0 - 1000 ppm with an accuracy of 0.1 ppm
    • o Pressure: -2500 to 2500 Pa with an accuracy of 1 Pa

Pump
  • 240L/m Heavy Duty Double Stage Rotary Vane Pump for faster gas exhaust
  • Vacuum rate: 7.8 cfm
  • Lowest pressure: 0.4pa

Blower

Flow Rate: 90m/h

Purification Pipeline

304 Stainless Steel, KF40 Port

Gloves

A pair of NORTH butyl glove is included to provide better protection against toxic

materials

Lighting

Built in fluorescent lamp


Slidable Shelf
  • Three slidable shelves are built 0n top of inside glove chamber with dimensions
  • of 300mm x 250mm
  • 300mm away from roof

Product Dimensions

3115mm(L) x 830mm(W) x 1830mm(H) (123" x 33" x 72")

Shipping Dimensions & Weight

Total 2 pallets & Total weight 1800 lb

#1: 86"x41"x84"

#2: 86"x41"x83"



Optional
  • Universal terminal panel is a convenient part with varies feedthrough built-in for VGB-10 series golve boxes to transfer gas/vacuum pipelines, circuit cables,etc.

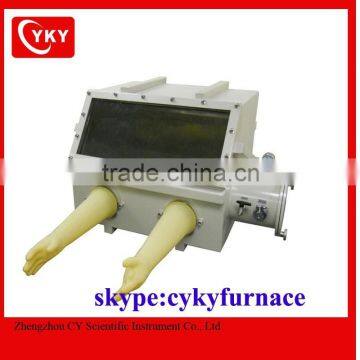

Display of the dual chamber glove box:

Dual Chamber Glove Box with Gas Purification System for preparing nano materials, Li-ion battery materials, catalysts, and metal

other related glove box that we have :

Dual Chamber Glove Box with Gas Purification System for preparing nano materials, Li-ion battery materials, catalysts, and metal

The press machine:

Dual Chamber Glove Box with Gas Purification System for preparing nano materials, Li-ion battery materials, catalysts, and metal

the furnace product:

Dual Chamber Glove Box with Gas Purification System for preparing nano materials, Li-ion battery materials, catalysts, and metal
