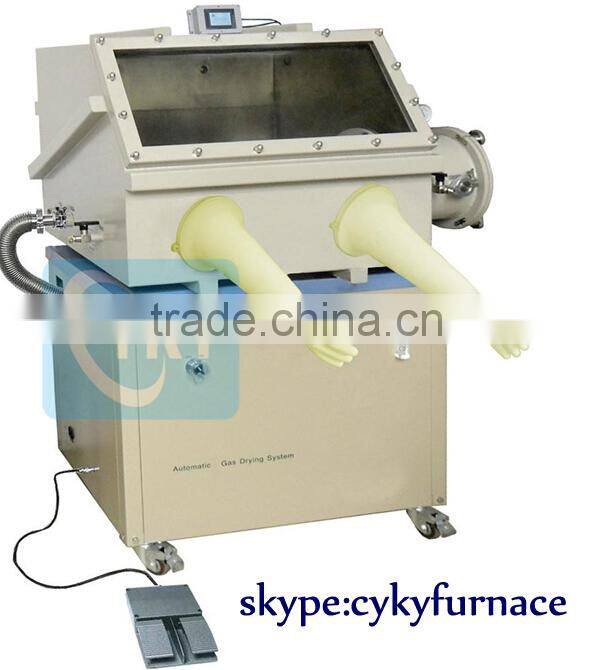

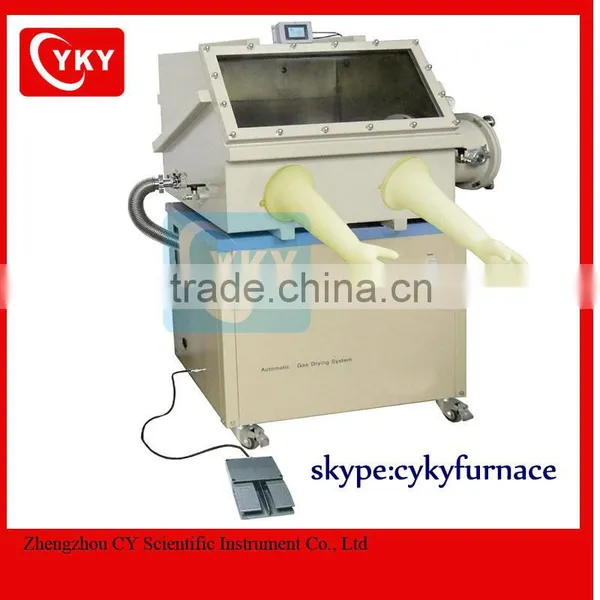

Stainless Steel Glove Box (31"x26"x28") with Automatic Humidity Purification System for Li-ion Battery Assembling (H2O<10ppm)
CYEQ-VGB-3P stainless steel glove box with auto-moisture-purification system can provide an oilless,dry gas environment with moisture level lower than 10 ppm.
It is an ideal tool for assembling Li-ion cells for R&D purposes, such as electrolyte injection and battery case assembling.
Specification of the Stainless steel glove box:
Working Voltage |
220V 50/60Hz, Single Phase (110V AC is available at extra cost) |
Glove Box Chamber |

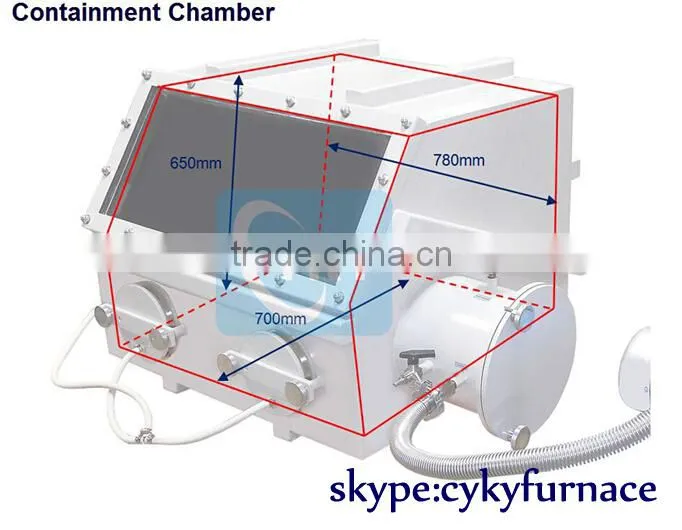

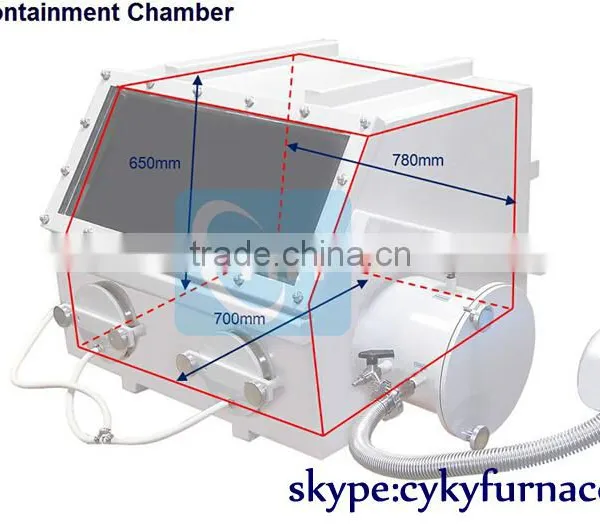

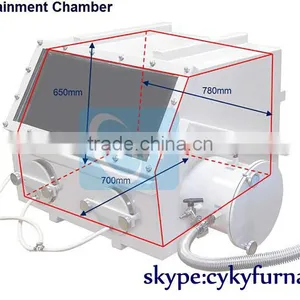

Glove Box: EQ-VBG-3 Case Material: Made of 11 gauge (3mm thickness) 304 stainless steel sheet. Dimensions: 780mm(L) x 700mm(W) x 650mm(H) Max. Positive Pressure: 810 Torr (1.1 atm) Note: Gloves cannot work if pressure is higher than 810 Torr Max. Vacuum Level: 0.5 Torr Note: Stainless Steel case may deform at higher vacuum level |
Air-lock Chamber |

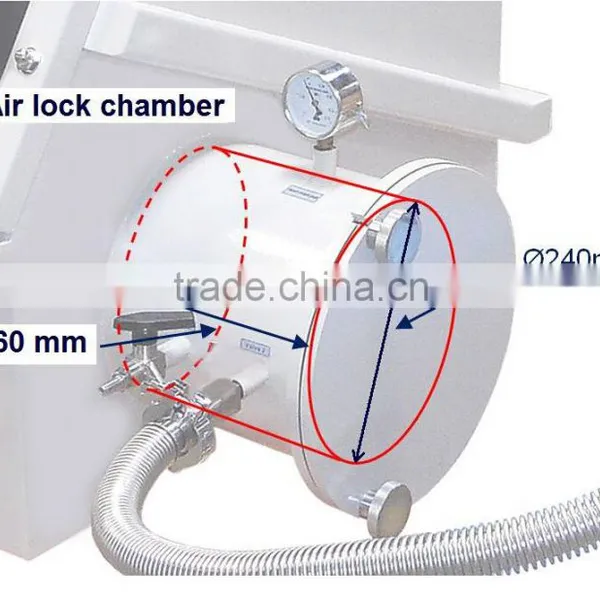

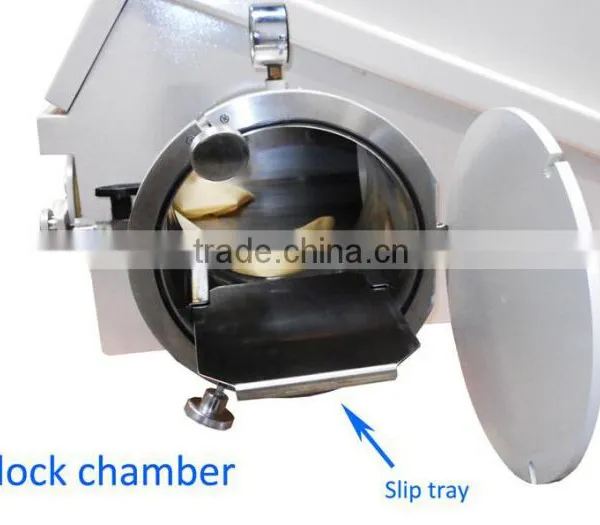

Dimensions: 240mm(ID) x 260mm(L) Max. Vacuum Level: 0.5 Torr |
Vacuum gauge and valves |

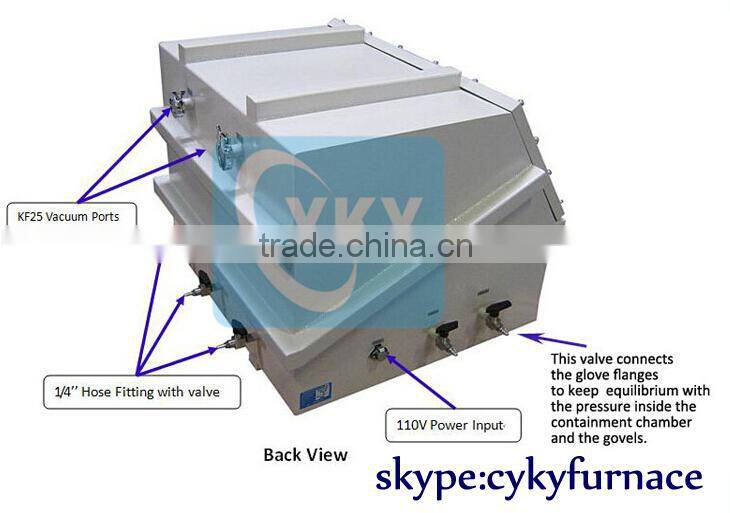

Two vacuum flanges are included for glove box to achieve vacuum to remove moisture and oxygen without expensive inert gas purging Do not operate under vacuum status. Vacuum process is used for purging the glove box chamber before operation. Two KF-25 vacuum fitting ports with Quick Clamps are installed in the back for connecting vacuum pump, electric/fluid feed-through, gas circulating/purifying system, or other testing equipment |
Purification System |
Automatic moisture remove to <10 ppm (Li-Ion battery assembling requires <11 ppm moisture) Moisture filter capacity: 1.5kg max. Automatic pressure control system is built in to keep pressure at constant level 6" color PLC touch panel is included which can set and display the humidity (ppm) and pressure level (mbar). (Please click the first picture below for details, please note O2 level will not be displayed on actual model) The control panel is removable, which can be placed any place for easy operation. |
Purification Pipeline |
304 stainless steel, KF40 port |
Gases Requirement |
Working gases: Atmospheric Gases, N2, Argon Regeneration Gas: N2 One float meter built in bottom of mobile cart for accurate gas filling |
|
Leakage Rate in Glove Box Chamber |
< 6 Torr/hour |
Power Extension |
One extension socket (Max power 1500W) is installed in the glove box main chamber.
Note: 110V power cord was included for immediate use. |
Gloves |
Two pairs of Latex Gloves are included for immediate use Optional: You may order 6'' Butady gloves here because they have: Increased stretching, bending ability and tear strength High effectiveness when vaporized hydrogen peroxide (VHP) is present High resistance to aromatics, hydrocarbons, solvents, fats, and acids Resistozone High static dissipative qualities |
Vacuum pump and fittings (Optional) |
Vacuum pump and fittings are not included. |
Net Weight |
120 kg (264 lbs) |
Warranty |
One year limited warranty with lifetime support |
Detailed picture of the stainless steel glove box:
plywood case
Payment: T/T in advance
Delivery: within 2 weeks
