copper, alloy, metal heat treatment used vacuum electric furnace for sale
CYKY series Vacuum sintering furnace is mainly used for sintering and annealing of powder metallurgy and ceramics. Also this chamber vacuum sintering furnace is used for high-temperature sintering of cemented carbide direct quenching aftering sintering , and annealing of metal parts and high-quality brazing.
Also this vacuum furnace can be used for sintering powder metallurgy products, metal injection molding products, stainless steel base, carbide, super alloy, heavy alloy, ceramic materials, magnetic materials, NdFeB ,etc.
| Specification of the high temperature vacuum heat treatment furnace | ||||
| Furnace construction |
| |||
| Chamber Size | standard chamber size: 100x100x100mm; 120x120x130mm; 150x150x150mm; 150x150x200mm; 200x200x200mm; 200x200x300mm; 300x300x300mm; 300x300x400mm other chamber size is customized. | |||
| Power | 2KW~30KW | |||
| Voltage | AC 204 to 380V 3 phases(please tell us when your place order.) | |||
| Max. Temperature | 1600 °C (< 2 hours) | |||
| Continuous work temp. | 1500°C | |||
| Max. Heating Rate | 15 °C /min | |||
| Temperature controller | • PID automatic control and auto-tune function. • 50 programmable segments for precise control. • Built in protection for over-heated and broken Thermal couple. • digital operation panel, also touch screen controller can be desigend. | |||
| Max. vacuum degree | 7x10-3 Pa (with molecular pump system) | |||
| Temperature Accuracy | +/- 1 °C | |||
| Heating Element | MoSi2 heating element | |||
| Heating Element | B type | |||
| Gross weight with package | 120Kgs~500kg | |||
| Accessories (free charge) |
| |||
| Software to control furnace through computer (if you need, additional order) |
| |||
| Warranty | One year limited warranty | |||
| Certificate |
| |||

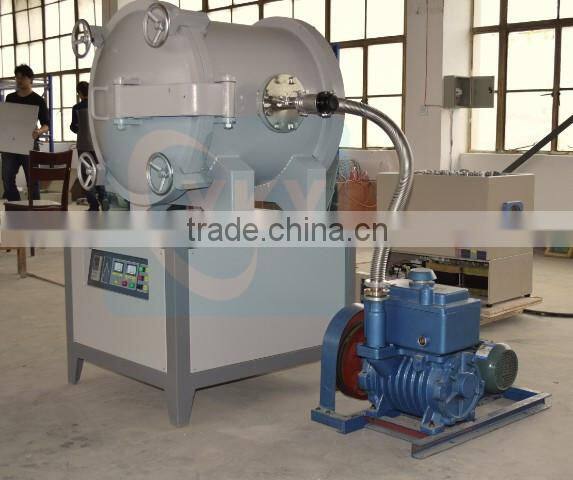

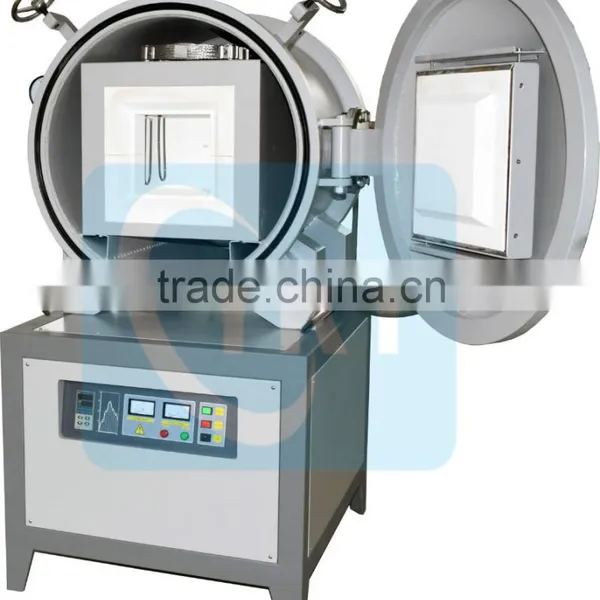

picture of the high temperature vacuum furnace / vacuum heat treatment furnace

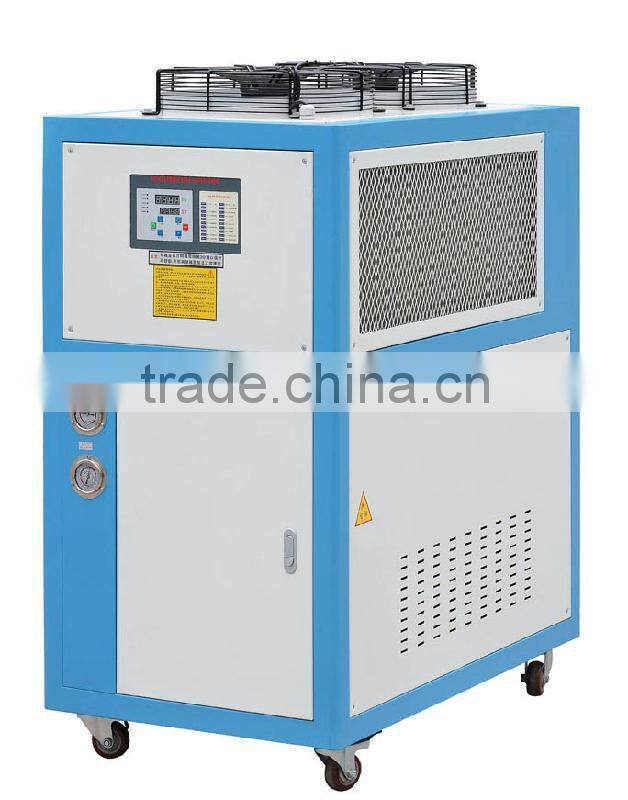

water chiller used for water cooling
