Product Details
Place of Origin: | Henan, China | Brand Name: | CYKY | Model Number: | EQ-SP-15VIM induction heating system |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

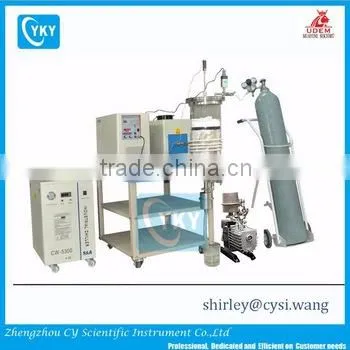

15KW Small Vacuum Induction Melting System with 60mm Quartz Tube & Complete Accessories
Introduction of induction heating system/induction melting furnace
CY Induction Furnace System is a vacuum split induction heating / melting system
with complete accessories, including Induction Heater, Quartz Tube with Flange & Valve,
Graphite Crucible & Refractory Assembling, 4L/m Recirculating Water Chiller, Vacuum
Pump, and Mobile Cart. It is an ideal tool for researching new metallic alloys with both
melting point < 1900ºC and quantity < 100g.
Technical parameters of induction heating system/induction melting furnace
Induction Heater | l Working Voltage: 220V AC, 50Hz, Single Phase l Working Current: 34 Amp (40A breaker required) l Output Power: 2 - 15 KW l Output Frequency: 30 - 80 kHz Adjustable l Duty Cycle: 80% l Induction Coil: 70mm(OD) x 65mm(ID) x 80mm(H) l Auto Heating Time: 1-99 seconds l Auto Dwell Time: 1-99 seconds l Auto Cooling Time: 1-99 seconds l Air Cooling: Rear Fan l Protection: Automatic water pressure, over temperature, and over power protection l Vacuum Flange: l Stainless Steel Flange with high temperature silicone o-ring and self-tighten structure l Graphite Crucible: 1.5"(OD) x 1.25"(ID) x 3.75"(Deep) Crucible included l Refractory Assembling: Complete refractory assembling made of alumina, including bottom crucible support, crucible holder and cover
|
Water Chiller | l Temperature range: 2 - 35°C l Water Flow Rate: 16 L/min l Water Tank: 6 Liters made of stainless steel |
Vacuum Pump | l One 120L/m Rotary Vane Vacuum Pump is included l Rate: 120 L/min l Max. Power Consumption: 375W |
Heavy Duty Mobile Cart | l Structure: Steel Frame Mobile Cart l 600mm(L) x 800mm(W) surface for placing Induction Heater & Quartz Tube with Flange |
Product Dimensions | Induction Heater: 18.5"(L) x 12"(W) x 17"(H) (470mm x 300mm x 430mm) Water Chiller: 18"(L) x 8.7"(W) x 28"(H) (460mm x 220mm x 530mm) Heavy Duty Mobile Cart: 600mm(L) x 800mm(W) x 597mm(H) |
Induction heater for induction heating system
Water chiller for induction heating system
Vacuum pump for induction heating system
Mobile cart for induction heating system
1.One year free warranty.
2.All machines are debugged before shipment.
3.Lifetime technical support and service.
4.24 hours on line or phone or by email technical support.
5.We offer detailed machine manual and software manual.
6.Our factory make a vivid training CD.
7.Life-long free maintenance.
8.Free training in our factory.
Welcome to visit our factory, learn machine face to face.
24-hours online service makes your inquiry be reply immediately.
Zhengzhou CY Scientific Instrument Co.,Ltd locate in hi-tech zone, Zhengzhou city.It is a high-tech companies that engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches.Mainly focus on Our main products include:microwave sintering furnace, dental porcelain furnace, tube furnace,muffle furnace,,zirconia sintering furnace,Phosphor powder sintering furnace,crystal sintering furnace, battery material sintering furnace, CVD system, relative accessories and etc. determined to do advanced materials preparation equipment manufacturers and suppliers of leader.
