Electric Coin Cell Crimping Machine for CR20XX Button Cells /electric Crimper

Name: Electric Coin Cell Crimping Machine for CR20XX Button Cells /electric Crimper
Brand: CYKY
SKU: 112052597
Availability: InStock

Zhengzhou CY Scientific Instrument Co., Ltd.

US$ 2,000 - 3,500 MOQ: 1 Set

Key Specifications

Place of Origin:

Henan, China

Brand Name:

CYKY

Model Number:

CY - MSK-160D

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name CYKY

Model Number CY - MSK-160D

Battery Type Li-ion

Size 220mm(L) x 130mm(W) x 430mm(H)

Nominal Capacity CY - MSK-160D

Nominal Voltage 110 - 240V AC 50/60Hz

Electric Coin Cell Crimping Machine for CR20XX button cells /electric crimp

Product Description

Brief introduction of the electric coin cell crimping machine:

CY-MSK-160D is a CE Certified electric crimper for the CR20XX series coin cells such as CR2016, CR2025, and CR2032.

It is an ideal tool designed to be operated both within and outside of a glove box. This crimper can be used under Argon gas

for half cell testing.

Specification of the electric coin cell crimping machine:

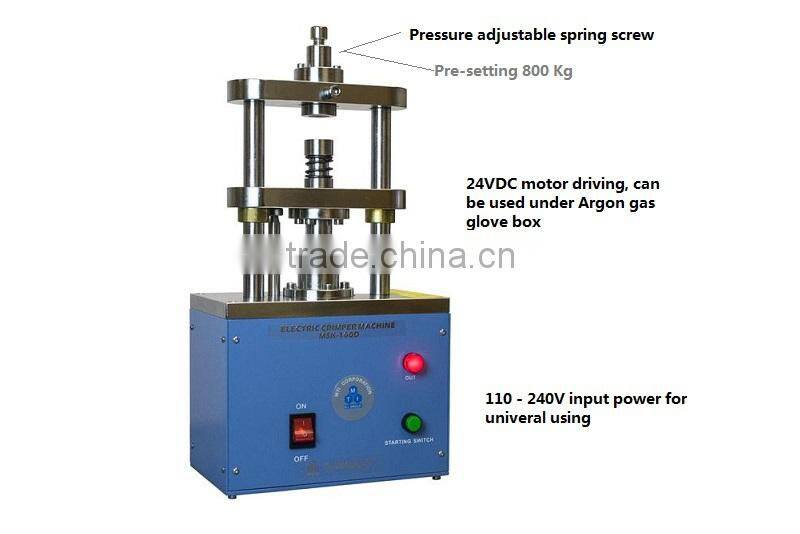

Power	110 - 240V AC 50/60Hz for univeral use 24V DC motor with reducing gear, 15W Can be used inside argon gas glovebox

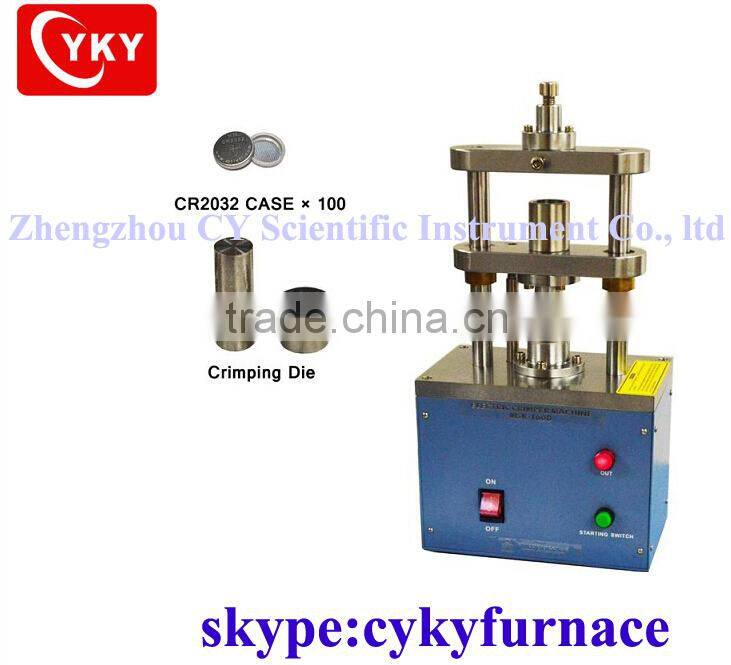

Die Set & Compatibility	Assembling dies for crimping CR2032, CR2025, & CR2016 coin cells. Please read operation manual to see how to change dies; suggest you to order another crimper for deassembling to save time. 100 pcs Coin cell cases are included in the package for testing and immediate use
Pressure	The pressure applied to seal the cell case is pre-set to a constant pressure at about 800 kg before shipping. Pressure adjustment knob at top can be used to adjust pressure applied on the negtive cap of cell casing to prevent case deformation.
Structure	Heavy Duty Steel Platform
Product Dimensions	220mm(L) x 130mm(W) x 430mm(H)
Compliance	CE Certified
Warranty	One Year limited warranty with lifetime support (rusted and damaged parts due to improper storage condition or maintenance are not covered by warranty)
Maintenance Notes	Electrolytes are highly corrosive materials, therefore the die set must be cleaned with alcohol after each use to avoid corrosion and to maintain the equipment's integrity. You may order replacement die by click picture below:
