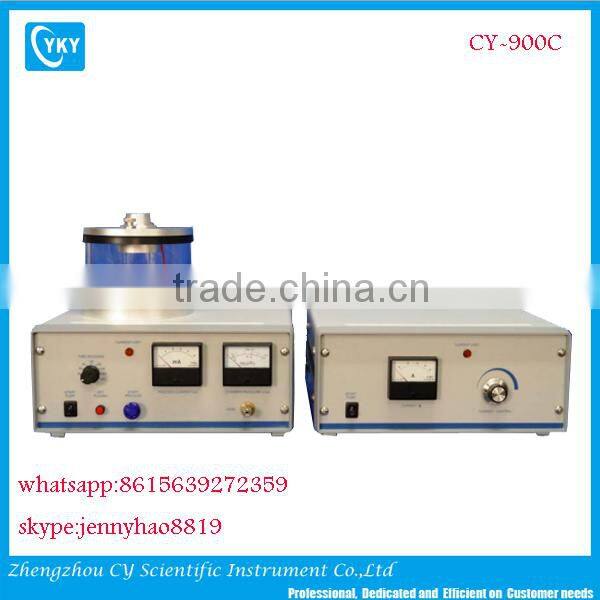

Lab mini type low vacuum DC Iron sputtering coater of gold
Application of sputtering coater of gold
CY-900C is a magnetron sputtering system featuring single target sources:
1) DC source for coating metallic material on one head
2) RF source for coating non-metallic material on the other head.
3) Can be coated: Au, Pt, Ag,Gold, Silver on jewelry
It is equipped with a film thickness tracker to enable the user to easily monitor the coating progress and also record the data.
Features of sputtering coater of gold
1.Hinged type cover on top with air spring sport makes target exchange easy
2.Two precision digital MFC (mass flow controller) are installed to allow two types of gases to be filled in
3.touch screen control panel
4.Made in Germany high speed turbo vacuum pump system,maxi. vacuum degree can reach 10-6 torr
Technical of sputtering coater of gold
| Model no. | CY-900C |
| Outer dimension | 360*300*380mm |
| Vacuum chamber | O.D 160mm*120mm(H) |
| Upper electrode | Target O.D 50mm, Thickness: 0.1mm |
| Target material | Gold |
| Sputtering area | Φ50mm |
| Maximum vacuum degree | < 4*10-²mbar |
| Iron current | 50mA |
| Coating time | 5s-3600s |
| Gas control |
fine-tuning inlet valve,connect 3mm hose,insert gas, adjust vacuum degree and sputtering current |
| Max. voltage | 1200V |
| Vacuum pump | mechanical pump 2L/S |
Pictures of sputtering coater of gold
Packaging of sputtering coater of gold
PLY WOOD BOX as below picture show. or as customer request.
Shipping and transportation
As customer request. Generally, Our mode of transport are as by sea, by air or rail transport
Payment
T/T, L/C, WEST UNION, PAYPAL, ESCROW AND ETC
Warranty
Main product is 15 month, except wearing parts.
Wearing parts as below:
Door stopper 1 pc, glove 1pair, crucible tongs 1pc, manual book
Factory show
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.
