Lab Electric Vacuum Mixer for Sale

Lab Electric Vacuum Mixer for Sale photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
CYKY
Model Number:
CY-MSK-SFM-6E
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhengzhou QingdaoTianjin Beijing Ningbo etc.
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name CYKY
Model Number CY-MSK-SFM-6E
Warranty 12 month
Dimension(L*W*H) 580mm(L) x 320mm(W) x 1340mm(H
Power(W) 750W
Voltage 110V/200V
Weight 75kg

 lab Electric Vacuum Mixer for sale

Product Description

 Introduction of  Electric Vacuum Mixer



MSK-SFM-6E (updated from MSK-SFM-6 from 10/20/03) is designed for making large batches (5 liters)

of chemical compounds via blending and mixing in a single container under vacuum driven only by electricity.

It is programmable in speed, time, and rotational direction, and has a stainless steel mixing tank implemented with water cooling to maintain an

efficient mixing process.

This instrument is excellent for preparing LiCoO3, LiFePO4, Phosphor and various ceramic slurries where gas bubbles must be kept at minimum

The reduction of gas bubbles will result in better dispersion and uniformity of the processed materials.

Technical parameters of  Electric Vacuum Mixer

Features

  • 5-liter, 304 stainless steel container with dual layer water cooling jacket.
  • Advanced sealing mechanism helps maintain vacuum pressure up to 12 hours.
  • Container is opened and closed by an electric motor; the need for an additional pneumatically
  • driven device is eliminated from this operation.
  • Programmable controller for adjusting the time, speed, and rotational direction settings.

Input Power Requirements

  • 208-240VAC single Phase, 50/60 Hz (built-in frequency converter to ensure compatibility with
  •  both frequencies)
  • 30A Max

Motor Output

750 W ( 1 Hp)

Rotor Rod Speed

0 -1400 RPM variable

Mixing Blade Speed

10 - 110 RPM adjustable

Lifting Mechanism

Electric motor (no air compressor or pump needed )

Container & Blades

  • Three different mixing blades are included for immediate use:

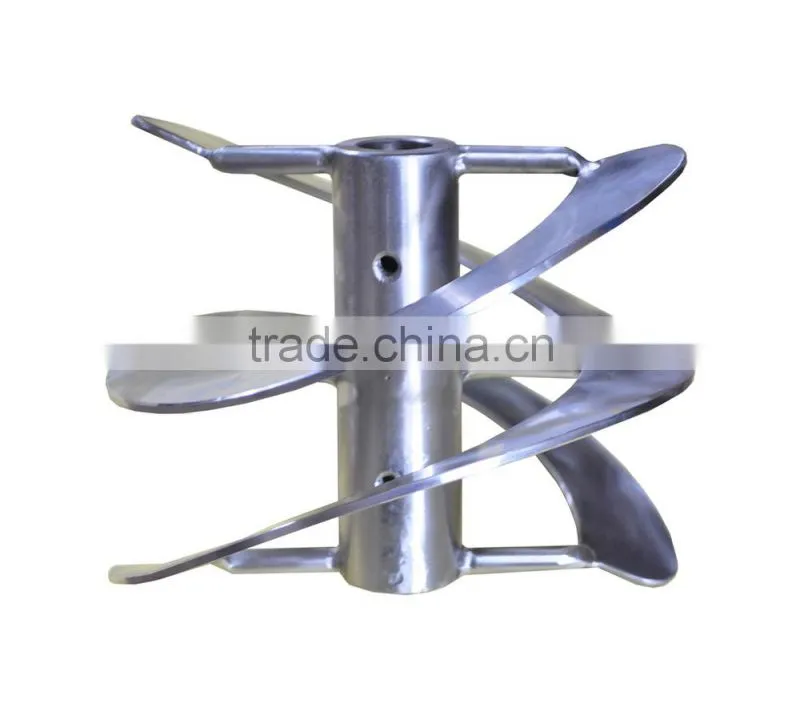

  1. 1. Helical Mixing Blade (120mm H x160 mm Dia.)
  2. 2. Propeller Mixing Blade
  3. 3. Turbine Mixing Blade

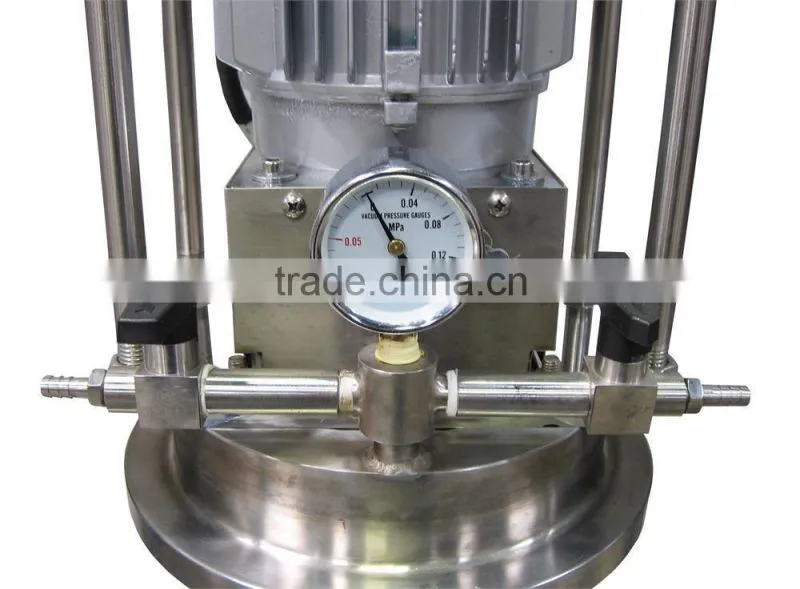

  • Mechanical Pressure Gauge and two 1/4'' gas inlet and outlet on the front for connection of gas source(s)
  • - please click the last picture from above for details
  • Container capacity: 5 Liter.
  • Warning: MSK-SFM-6E is suitable for wet blending and mixing only is not suggested for use with dry mixing
  • or ball milling.


Water Cooling Requirement

  • 16 L/min water flow is required to cool mixing tank
  • 1/4'' water cooling inlet and outlet - connected to built-in cooling jacket - on the back of the mixing tank for water hose connection
  • A recirculating water chiller is recommended for saving water (not included)

Vacuum Pump

  • Single Step Rotary Vane Vacuum Pump with advanced exhuast filter is included for immediate use
  • Vacuum gauge is built in with minimum vacuum level -0.1 MPa

304SS Container Size

270mm O.D. x 210mm I.D. x 230mm H

Instrument Dimensions

580mm(L) x 320mm(W) x 1340mm(H)

Shipping Dimensions

700mm(L) x 600mm(W) x 1500mm(H)

Net Weight

119 kg (262 lbs)

Shipping Weight

140 kg (310 lbs)

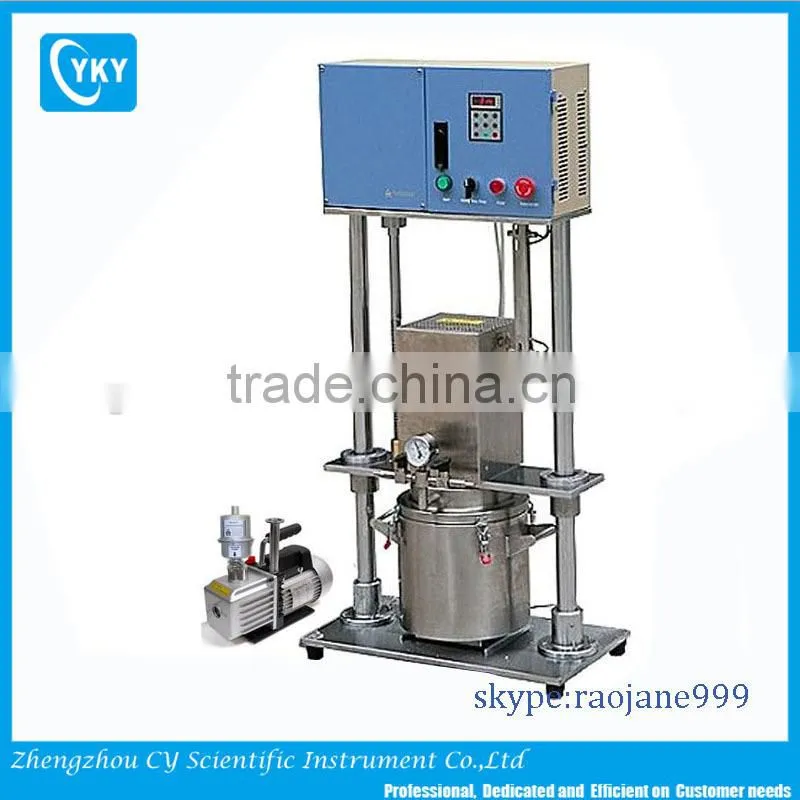

Pictures of   Electric Vacuum Mixer

 lab Electric Vacuum Mixer for salelab Electric Vacuum Mixer for sale





Packaging & Shipping

    Packaging of   Electric Vacuum Mixer

lab Electric Vacuum Mixer for sale



Shipping and transportation

As customer request. Generally, Our mode of transport are as by sea, by air or rail transport

Our Services

 Payment

 T/T, L/C, WEST UNION, PAYPAL, ESCROW AND ETC

Warranty

Main product is 15 month, except wearing parts.
