Grinding & Mixing Automatic Desktop Grinder / Ceramic Grinder Mill

Name: Grinding & Mixing Automatic Desktop Grinder / Ceramic Grinder Mill
Brand: CYKY
SKU: 112051561
Availability: InStock

Zhengzhou CY Scientific Instrument Co., Ltd.

US$ 1,000 - 2,100 MOQ: 1 Set

Key Specifications

Place of Origin:

Henan, China

Brand Name:

CYKY

Model Number:

CY- MSK-SFM-8

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name CYKY

Model Number CY- MSK-SFM-8

Power Source Electricity

Type Mini Grinder

Rated Input Power 150w

Disc Diameter Other, 120mm

Rated Voltage 110- 240V AC

No-Load Speed Mortar: 0 - 10rpm

Disc(Wheel) Type Grinding Disc

Dimensions 240mm(L) x 240mm(W) x 500mm(H)

Weight about 50kg

grinding & mixing Automatic Desktop Grinder / ceramic grinder mill

Product Description

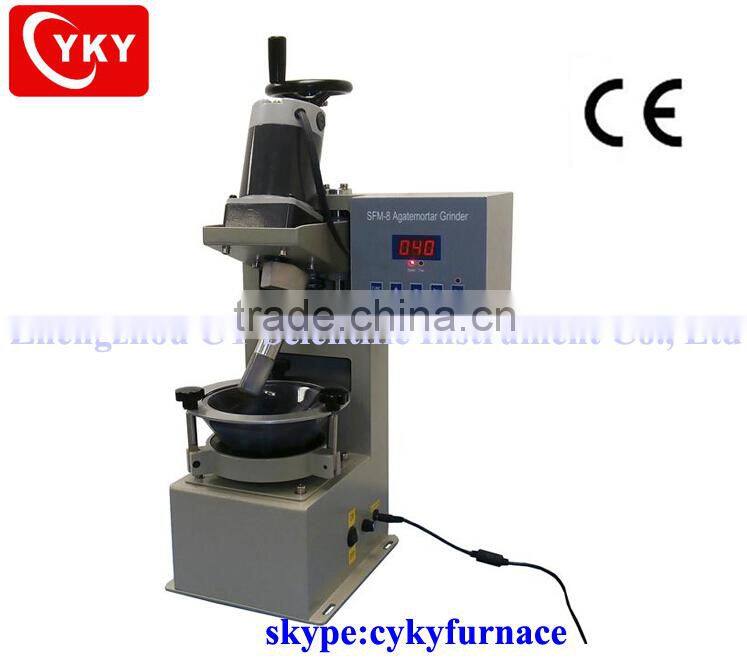

Brief introduction of automatic desktop grinder:

MSK-SFM-8 is designed for grinding & mixing small batch of chemical and compound automatically for R&D laboratory.

Its mortar and height adjustable pestle are designed for efficient, easy, and uniform grinding. The mortar can be taken off

easily for cleaning. It is an excellent tool for preparing various ceramic materials in research lab so as to save labor.

Grinding time can be set using the automated controller. Minimum granularity can be as small as microns even nanometers.

Specification of the automatic desktop grinder:

Working Voltage	Input: 24V DC 110- 240V AC to 24V DC power adapter is included Power adapor is UL , TUV, CSA and CE approval for worldwide use. PSE approval for Japan is available upon request.
Max. Power Consumption	150W

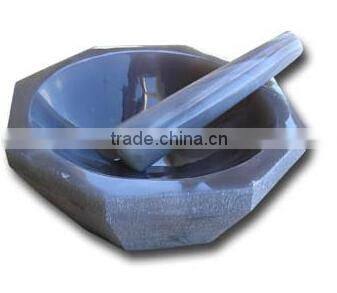

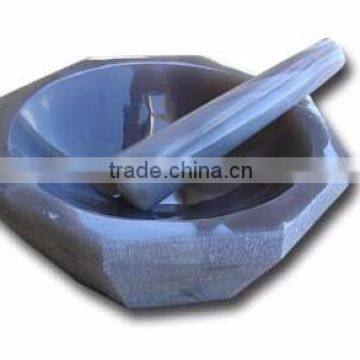

Grinding Bowl	5“ Agate Mortar & Agate Head Pestle included Mortar Dimensions: Ø120mm x 34mm Dia.
Grinding Speed & Pressure	Mortar: 0 - 10rpm Pestle: 0 - 80rpm adjustable Grinding pressure is adjustable by spring
Dimension	240mm(L) x 240mm(W) x 500mm(H) or 9.4" x 9.4" x 19.7"
Net Weight	38 lbs
Warranty	One year limited warranty with lifetime technical support
Compliance	CE, TUV, UL, CSA certified in power supply Machine is safe 24VDC input , which can be used without any safety certification
Application note	Pease crush bulk sample before granding using our electric Jaw crusher This compact automatic grinder can be put into a glovebox via air-lock port and operate under inert gas
