CY-XGB Planetary ball mill machine / laboratory ball mill machine
- 500 Set / Sets per Month
- China port
- T/T Credit Card PayPal
- YORNEW Desktop CNC Lathe Machine, education cnc, vocation cnc, hobby cnc, diy cnc
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial CNC Milling Machine, production, Machine Center for steel, stainless
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | CYKY |
Model Number: | CY-XGB | Type: | Horizontal | CNC or Not: | CNC |
Voltage: | 220 -380v | Weight: | 100KG | Certification: | CE |
Warranty: | 1 year, 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
CY-XGB Planetary ball mill machine / laboratory ball mill machine
Description of the planetary ball mills:
CY-XGB series planetary ball mills can be used for wet or dry mixing,solid grain of different material,suspension,paste.
Vacuum grinding jar can be used for grinding in vacuum or inert gases. It is the ideal ball mill for Geology,metallurgy,
soil,building materials,chemical industry,light industry,medicine,electronics,ceramics,battery,environment protection.
Gear-drive is used to ensure high uniformity and excellent repeatability in experiment.
Fast rotational speed, high efficiency and fine granularity
Four or two different samples can be got in one experiment
Low center of gravity, good rigidity, compact structure,easy operation, safe and reliable operation, low noise,
non-pollution, small loss
Features of the planetary ball mill:
Changeable frequency, program-controlled stepless speed regulation, it can choose speed as you need.
Timing shutdown,timing positive and negative
rotation automatically, it can be setted as you need conveniently.
Working principle:
CY-XGB planetary ball mills have four grinding jars installed on the turning plate. When the plate rotates(revolution), the jar axis makes planetary rotation and the jars grind and mix samples in high speed movement.
Transmission ratio of revolution and rotation is 1:2. The balls and samples in the jars smash and grind various
products of different materials.
Specification of the planetary ball mill:
Rotation method | Gear rotation | |
Grinding method | Two or four jars working simultaneously | |
Max Sample volume | 2/3 capacity of per Jar | |
Max feeding capacity | Soil material≤10mm , others materials≤3mm | |
Discharging granularity | It can achieve 0.1um | |
Rotation rato (revolution:rotation) | 0.4L,2L,4L: | 1:2 |
Rotation speed(rotation) | 0.4L: 2L: 4L: | 0~600 rpm/min 0~580 rpm/min 0~530 rpm/min |
Controlling method | Changeable frequency, program-controlled Stepless speed regulation, Timing shutdown,timing positive and negative rotation automatically and Manually. | |
Max continuous operating time | 48 hours |
Item No. | Specification | Jars | Vacuum jars |
CY-XGB04 | 0.4L | 50ml / 100ml *4 | 50ml *4 |
CY-XGB2 | 2L | 100ml / 250ml / 500ml *4 | 100ml / 250ml *4 |
CY-XGB4 | 4L | 250ml / 500ml / 1000ml *4 | 250ml / 500ml *4 |

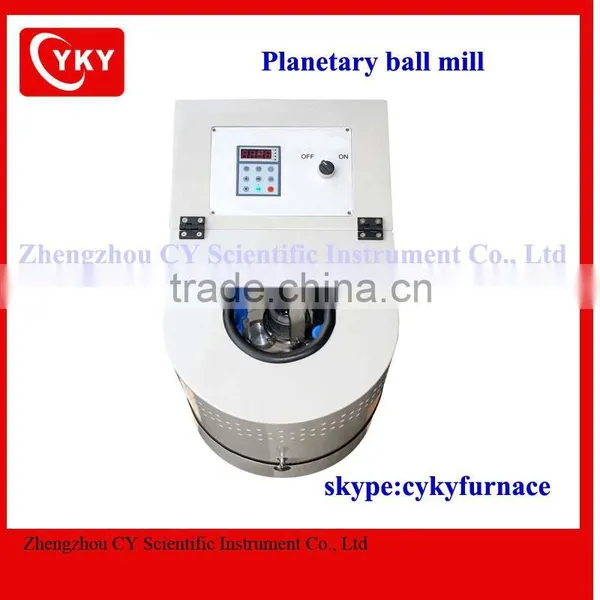

Display of the planetary ball mill machine:
other products that you may interest:
The press machine:
The heat treatment furnace:
Zhengzhou CY Scientific Instrument Co., Ltd.- is a high and new technology enterprise registered in Zhengzhou,Henan province. Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in researching and developing, designing and manufacturing of equipment used in scientific researches.
Our mainly products include high temperature furnace and heating element, like lab muffle furnace, tube furnace, dental furnace, vacuum furnace,gold melting furnace, SiC heating element, MoSi2 heating element, alumina tubes and crucibles, and etc.
Contact person: Alisa Wang
Skype: cykyfurnace
Mobile:+86 15515716046
