Home > Products > industrial furnace > Electrical Car Bottom Resistance Furnaces/Industrial Furnace/Bogie Hearth Furnace
Electrical Car Bottom Resistance Furnaces/Industrial Furnace/Bogie Hearth Furnace
- Zhengzhou Qingdao etc.
- T/T D/P D/A Credit Card
You May Like
-
Industrial use 1200 celsius energy-saving electric car bottom annealing furnace
-
Trolley resistance annealing furnace/OEM trolley type car bottom furnace
-
CE New Condition Car Bottom Type Electric Glass Melting Furnace
-
Car Bottom lab Furnace for annealing and tempering resistance annealing furnace
-
Large capacity car bottom metal hardening furnace elevator furnace
-
Small Car Bottom Ceramic Furnace/Kiln For Ceramic Industry
Product Details
| Condition | New | Type | Resistance Furnace | |
| Usage | Heat Treatment Furnace | Place of Origin | Henan, China | |
| Brand Name | CYKY | Model Number | CY-CBF1200 car bottom furnace | |
| Voltage | 380V-440V | Power(W) | 120KW | |
| Dimension(L*W*H) | 2000x1500x1800mm | Weight | 4T | |
| Certification | ISO/CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High temperature car bottom furnace/industrial trolley furnace
Introduction of car bottom furnace/trolley furnace
Car Bottom Furnace is welded by steel and profiled steel. Furnace chamber is ceramic fiber and high quality electric resistance wire, which can save 40% energy than brick furnace chamber. Car Bottom Furnace is mainly used for annealing, normalizing and stress relieving of bars and tubes, forgings, large weldments and castings.
Features of car bottom furnace/trolley furnace
*The furnace chamber size can be customized;
*Good working performance, nice outlook, less consumption and convenient to move;
*Programmable automatic temperature control system;
*Communication software with USB cable to computer (optional);
*Temperature control can reach to ±1°C;
Standard Size of car bottom furnace/trolley furnace:( Other Sizes are Customizable. )
1. Working Temperature: CY-950 °C
Model | Chamber Size(mm) | Rated Power(KW) | Delivery Time(days) |
CY-CBF-45 | 1100×550×450 | 45 | 15 |
CY-CBF-50 | 1300×650×450 | 50 | 15 |
CY-CBF-75 | 1500×700×600 | 75 | 15 |
CY-CBF-90 | 1500×800×600 | 90 | 15 |
CY-CBF-105 | 1800×900×700 | 105 | 20 |
CY-CBF-135 | 2100×1050×750 | 135 | 25 |
CY-CBF-150 | 2300×1200×650 | 150 | 25 |
CY-CBF-300 | 2500×1500×1500 | 300 | 35 |
2.Working Temperature: CY-1200°C
Model | Chamber Size(mm) | Rated Power(KW) | Delivery Time (Days) |
CY-CBF-65 | 1100×550×450 | 65 | 15 |
CY-CBF-75 | 1300×650×450 | 75 | 15 |
CY-CBF-110 | 1500×700×600 | 110 | 3 |
CY-CBF-120 | 1500×800×600 | 120 | 15 |
CY-CBF-150 | 1800×900×700 | 150 | 20 |
CY-CBF-210 | 2100×1050×750 | 210 | 25 |
CY-CBF-220 | 2300×1200×650 | 220 | 25 |
CY-CBF-450 | 2500×1500×1500 | 450 | 35 |

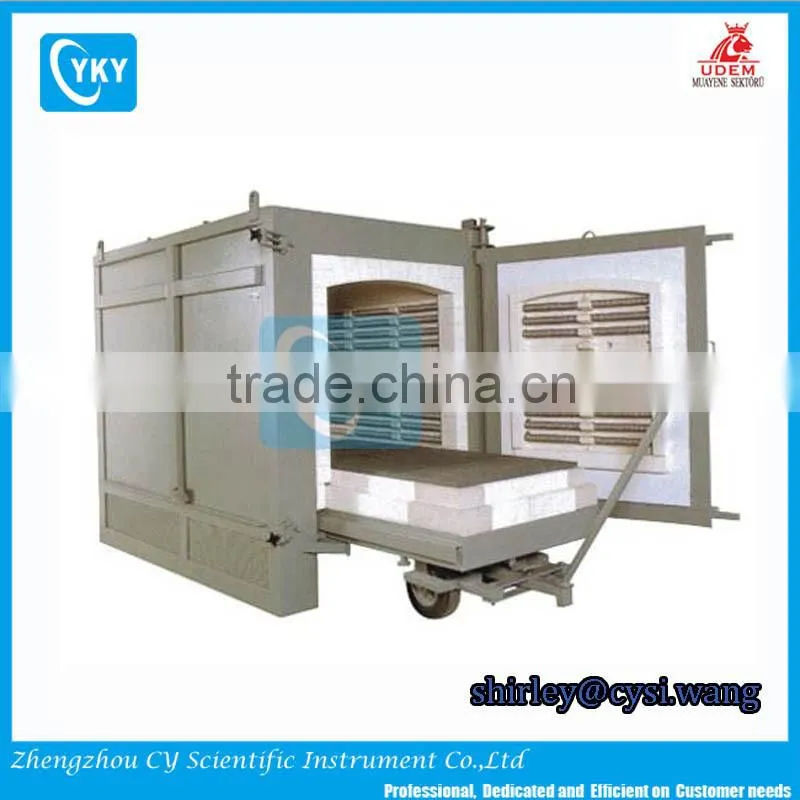

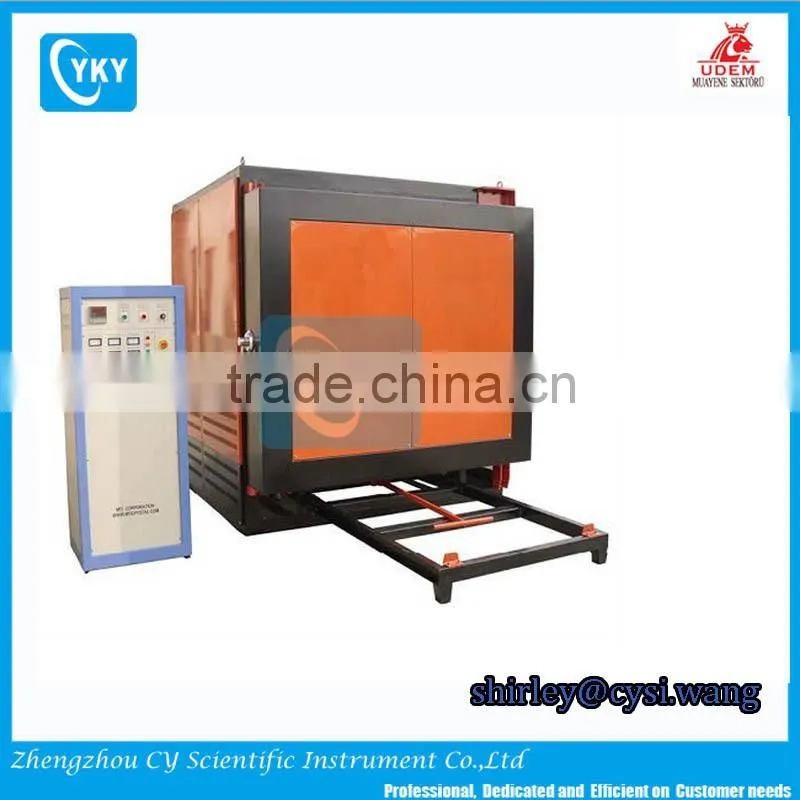

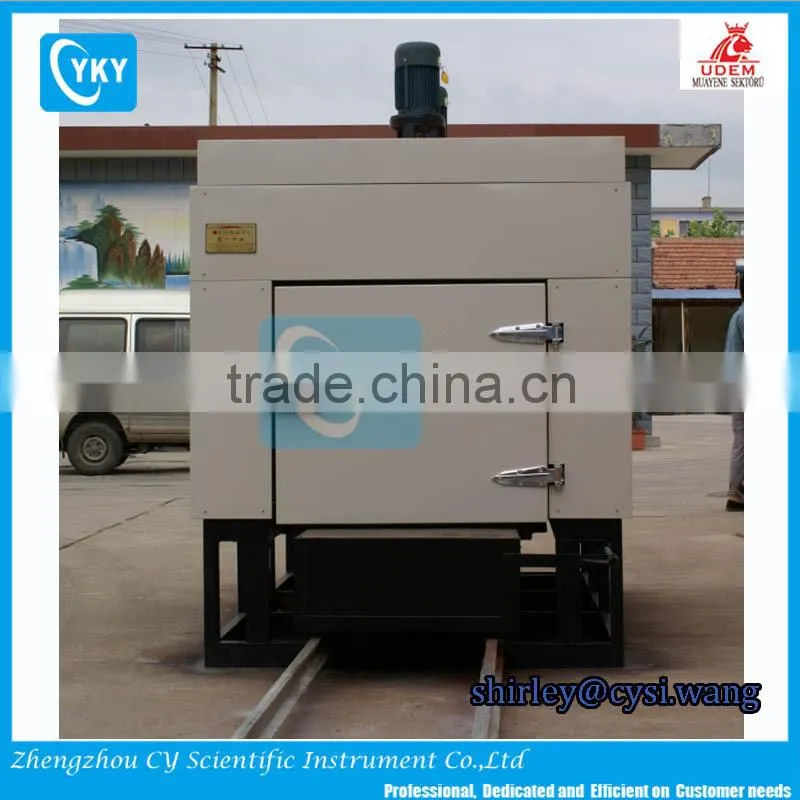

Detailed photos of car bottom furnace
1.We are a manufacturer so that we have the punctual delivery time.
2.One sales representative serves you from inquiry to products shipped out.Communicate directly and conveniently.
3.Professional R&D team.
4.Strict QC.
5.Smooth shipping.
6.Rich experience. We do OEM services.Our customers are all over the world like USA, UK, Russia, Korea, Southeast Asia, etc. so that we are quite experienced.
7.Certificate: All our products are CE approval.
8.Fast reply: Our team will respond your requests within 8-working-hour

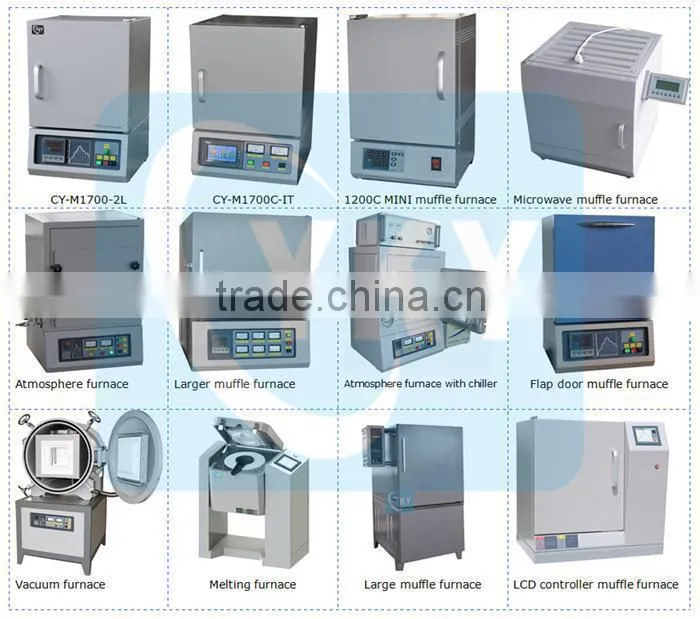

Zhengzhou CY Scientific Instrument Co.,Ltd locate in hi-tech zone, Zhengzhou city.It is a high-tech companies that engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches.Mainly focus on Our main products include:microwave sintering furnace, dental porcelain furnace, tube furnace,muffle furnace,,zirconia sintering furnace,Phosphor powder sintering furnace,crystal sintering furnace, battery material sintering furnace, CVD system, relative accessories and etc. determined to do advanced materials preparation equipment manufacturers and suppliers of leader.
