12T Manual operation Laboratory table Hydralic Press Machine 12T with protective cover
Model YLJ-12 is a CE Certified desktop manual pressing machine up to 12 metric tons for materials /
chemistry research laboratories to prepare compound ceramic sample. YLJ-12 has built in Hydraulic pump
with auto return function and transparent protection cover. It is suitable to be operated in a glove-box under oxgyen and inert gas.
Specification of the 12T Laboratory press machine with built in hydraulic pump
|
12 metric tons Pressure gauge is built in |
||||||||||
|
Gauge Pressure Value to Force Conversion
|
Notes: The actual force applied on the Hydraulic Cylinder (Ton) equal to the force applied on your working piece For calculating the actural pressure (Mpa) applied on your working piece, please follow the equations in below P = T/πr^2 P: Pressure (Mpa) applied on your working piece T: Force (metric ton) Applied on the Hydraulic Cylinder π: ~3.14 r: Radius (cm) of your working piece *1000 Kg = 1 Metric Tone; 1 Mpa = 10 Kg/cm2 |
||||||||||
|
Max Lifting Height of Bottom Cylinder |
25 mm |
||||||||||
|
Top Screw Adjustable Height |
150 mm |
||||||||||
|
Transparent plastic for safety Note: Must close the protection door during pressing |
||||||||||
Dimensions of Machine |

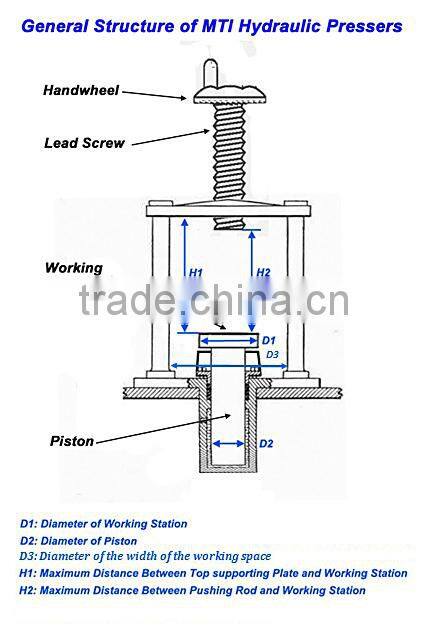

270mm(L) x 200mm(W) x 450mm(H) D1: 90mm D2: 97 mm D3: 105mm H1: 173mm H2: 160mm |
||||||||||
Length of Press Rocker |
16.5'' |
||||||||||
Net Weight |
30 Kg ( 66 lbs) |
||||||||||
Dimensions of Shipment |
40" x 25" x 28" |
||||||||||
Weight of Shipment |
120 lbs |
||||||||||
Press Dies (optional) |
Please order Pressing dies with various diameters at extra cost
|
||||||||||
|
The pressing machine was quality inspected in USA, lifetime support is provided One year limited standard warranty |

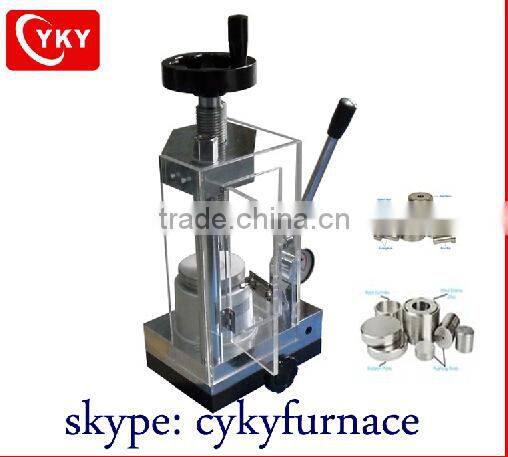

Display of the 12T Laboratory Press machine with built in Hydraulic Pump

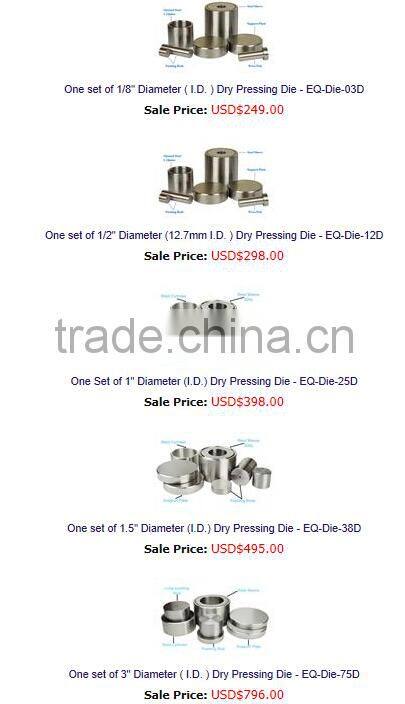

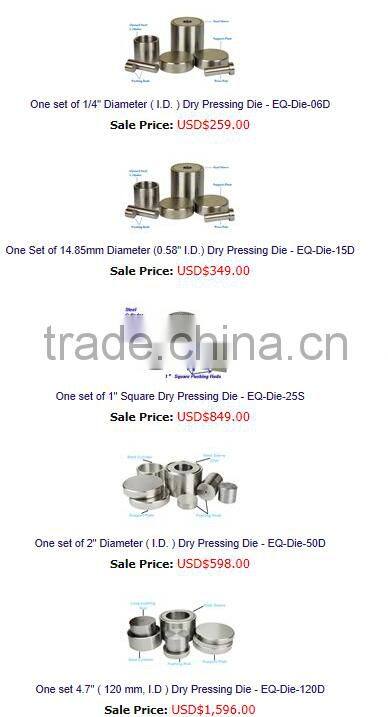

the dies for the press machine

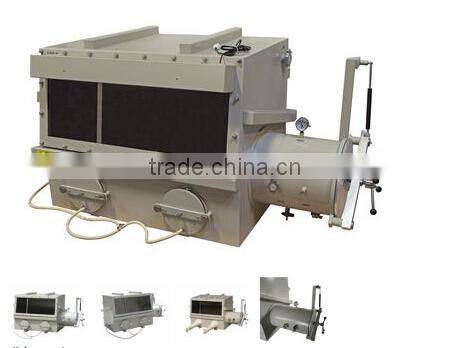

other related products that you may need:
