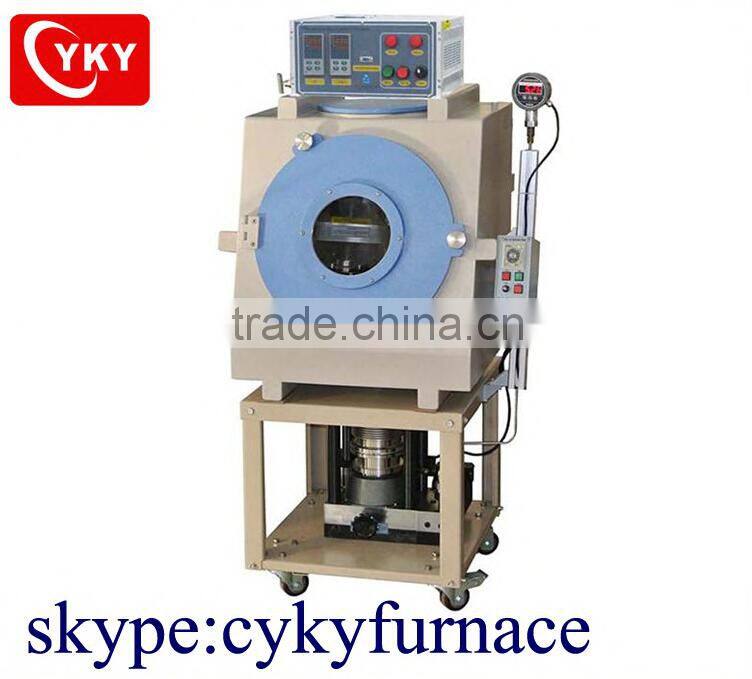

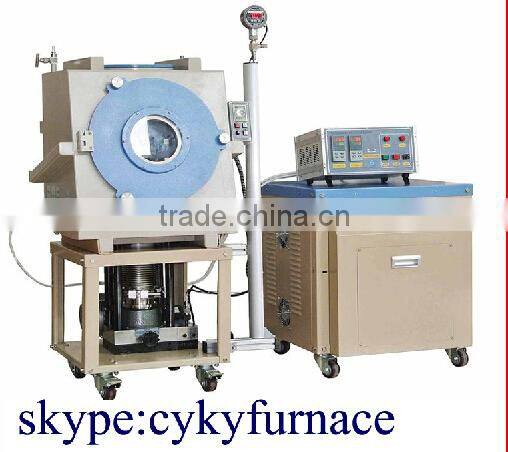

500C 20 T Vacuum Lamination Press with Two Heating Plate and Electric Hydraulic Pump / hot vacuum press machine
Brief introduction of the hot vacuum press laminating machine:
YLJ-VHP5-4 (update from EQ-VHP-5T-4) is a CE Certified electric vacuum lamination hot press designed for wafer bounding
or thin film transformations up to 100mm x 100mm. It has the max. working temperature of 500ºC along with the
max. pressure of 20 Metric Tons.
Specification of the hot vacuum press laminating machine
|

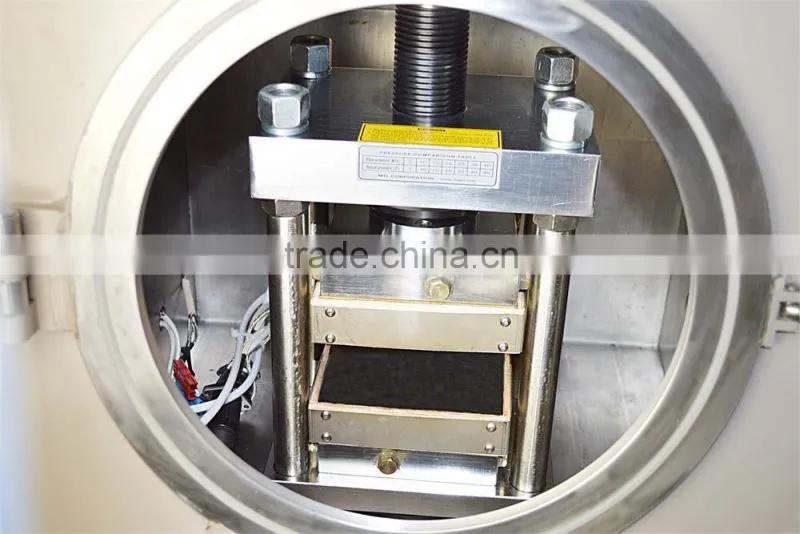

Two 135 x 135 mm flat heating platens made of high temperature resistant Cr steel with max. working temperature of 500ºC 1000W Heating element is inserted into the center of the heating plates for fast heating Max. Load on 135x135mm Heated Platen: 10 Metric Tons at 500°C ( 55 kg/cm2 ) 20 Metric Tons at RT ( 110 kg/cm2 ) Two precision temperature controllers which control two heating plates separately with 30 programmable segements Water cooling jackets are built on the both top & bottom of the heating plates for assisting cooling |
|

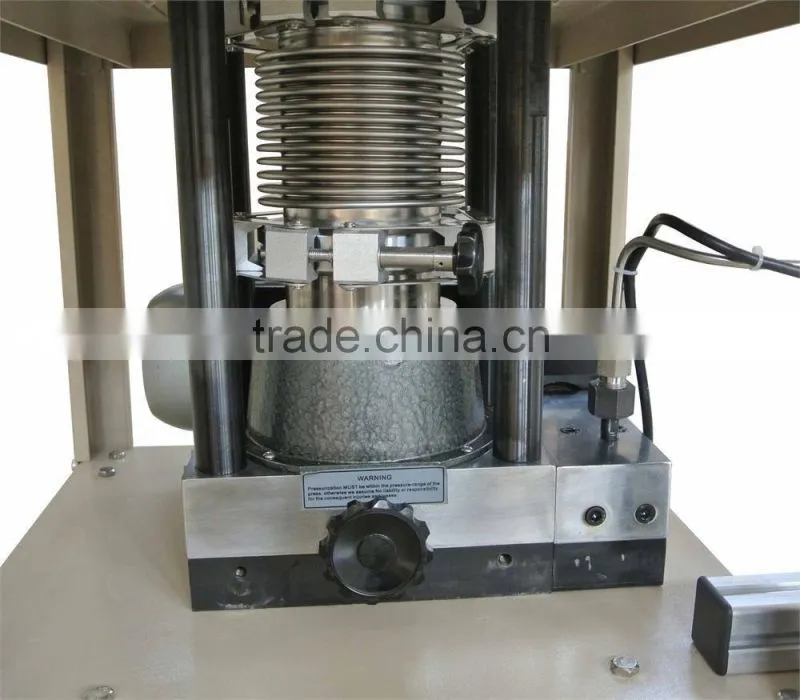

Modified electric hydraulic press is connected to vacuum chamber. Movable distance between two heating plates: 15 mm Automatic max. pressure controlled via a digital pressure gauge. Pressure accuracy: +/-0.01 Mpa ( 0.1 kg/cm²) Two flat heating plates are installed with water cooling plates for Max. 500ºC working temperature Water cooling (>15L/min) is required to cool the heating plates when the operating temperature is over 200 ºC. |
|
and Pressure Display |
Two precision temperature controllers with 30 programmable segments control the heating plates separately with +/1°C accuracy. The temperature controllers have PID auto tune function, over-temperature protection and thermal couple broken protection Max. Temperature: 500°C with inert gas or vacuum with accuracy +/-1°C Max. Heating rate: 2.5°C/min Software and PC interface is built in the controller , which can be connected to a PC for computer controlling via a RS232 connector Digital pressure meter ( controller ) is built outside the vacuum chamber. You can set pressure at the desired value which can stop the electric hydraulic press automatically |
|

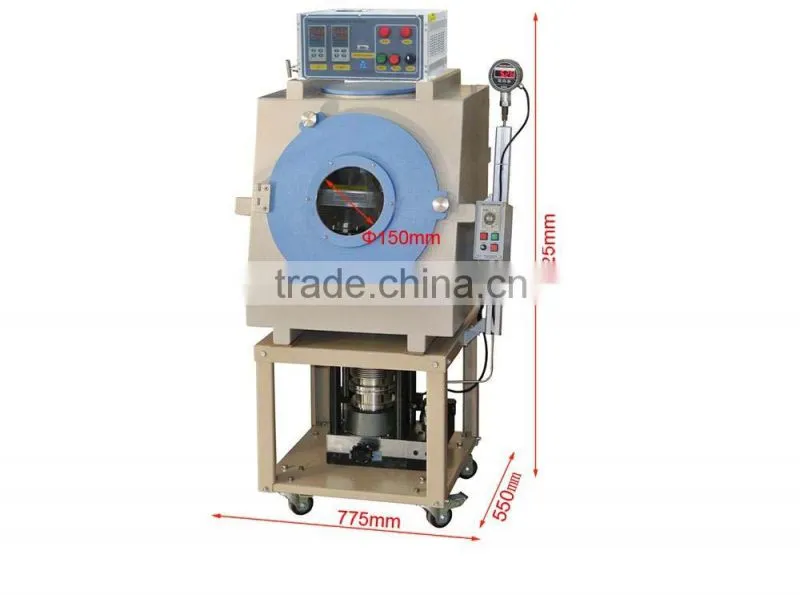

Electric hydraulic press and heating plates are placed inside the vacuum chamber Vacuum chamber is made of SS304 with the size: 525Lx480Wx450H (mm) Vacuum chamber Capacity : about 75 Liters. 300mm dia. vacuum sealed hinged type door with 150mm Dia. quartz glass window is installed for easy sample loading and observation Silicone O-ring can be used for all vacuum sealings One precision digital vacuum guage ( 10E-4 torr ) is installed on the vacuum chamber |
Power Requirement |
Power consuming: 2500 W Power input: 208 - 240V AC, 50/60 Hz single phase |
Water cooling |
One recirculating water chiller is included for cooling heating plate from over-heated and faster cooling. |
Display of the hot vacuum press laminating machine
