4 Row, 6 Row Working Rice Transplanter

Name: 4 Row, 6 Row Working Rice Transplanter
Brand: WISHOPE
SKU: 112046263
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Rice Seedling Transplanting

Type:

Other, transplanter

Shenzhen Wishope Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Rice Seedling Transplanting

Type Other, transplanter

Drive Type Other

Usage Other, Paddy Transplanting

Place of Origin Zhejiang, China

Brand Name WISHOPE

Model Number WSTP40

Dimension(L*W*H) 2180*480*950mm

Weight 150kg

Certificate CE

Warranty 12 month

After-sales Service Provided Engineers available to service machinery overseas

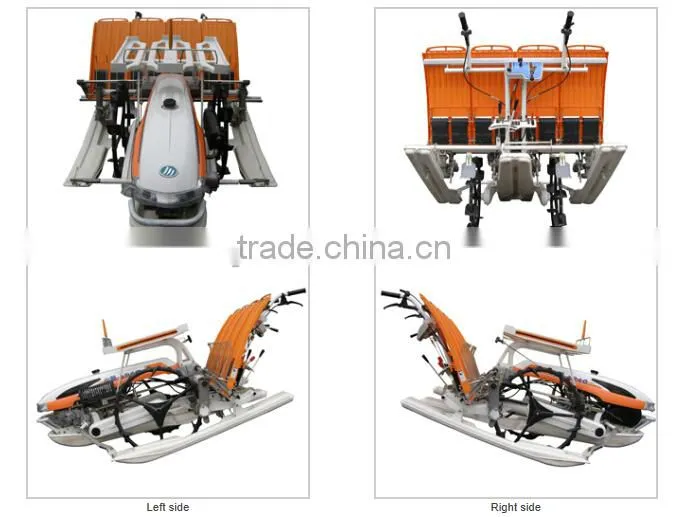

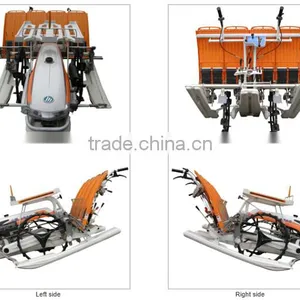

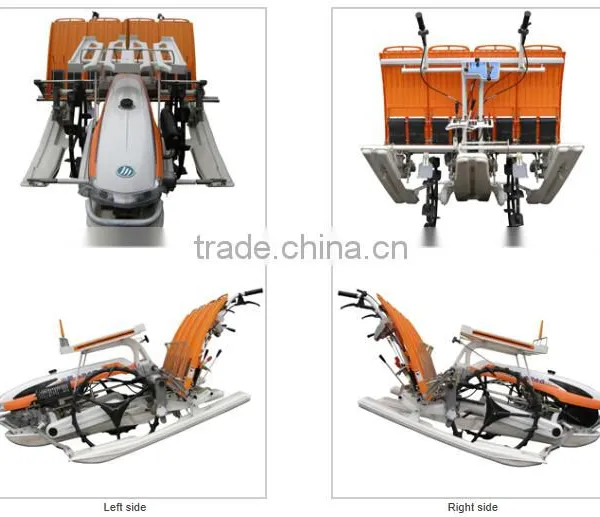

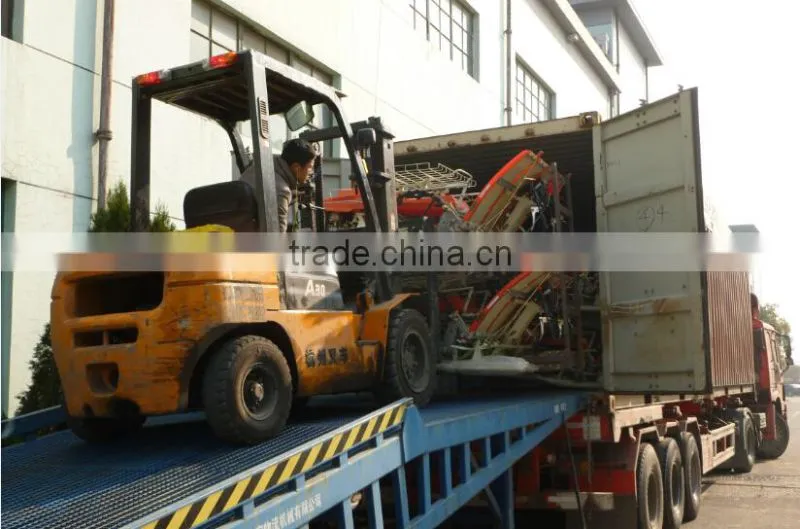

4 Row, 6 Row working Rice Transplanter

Specification of rice transplanter

ITEM		UNIT	SPECIFICATION	ITEM		Unit	SPECIFICATION
Product Type:WSTP40(300)				Walking Part	Wheel	---	Iron Wheel
Dimension	Long	mm	2180		The Diameter of wheel	mm	660
	Width	mm	1480		Width of wheel	mm	90
	Height	mm	950		Transmission	Step	Forward(2 steps) Back(1 step)
Weight		kg	150		Walking Speed	m/s	0.75-1.51
Transplanting Organization		--	Crank Rocker Type		Speed	m/s	0.36-0.73
Crank Radius		mm	35		Line Number	Line	4
Transplanting Frequency		Time/min	≤270		Row Pitch	mm	300
Engine	Model	--	Four –stroke single –cylinder gasoline engine		Planting Distance	mm	126/139/169/174/192/233 (6 steps)
	Rated Power	Kw(ps)	4(5.5)/3.3(4.4)		Planting Depth	mm	10-35 (6 steps)
	Rated Running	r/min	4000/3600		Thickness of taking seedlings	mm	10-18(11 steps)
	Engine Fuel	--	93#gasoline		Transplanting Times	mm	13.4(20)/12.1(22)/11.1(4)
	Starting Method	--	Anchor rope recoil Type		Spare Seedling Boxes	Plate	2
	Oil Tank	L	3.5		Productivity	Acre/hour	2-2.7
