Single Crystal Growing Furnace for Pulling Sapphire, GGG, YAG, LaAlO3, Si, and G
- Zhengzhou Qingdao etc.
- T/T D/P D/A Money Gram Credit Card
You May Like
-
Single Crystal Growth Tube Furnace CZ Crystal Grower System With Vacuum Chamber for Oxide Single Crystals
-
Mini Sliding Tube Furnace Used for Growing Low Melting Point Metallic Single Crystal / Tube Furnace
-
Crystal Growing Furnace Multi-Position Tube Furnace for Growing Electronic Crystals for Semiconductor Industry
-
Silicon Single Crystal Mini Furnace High Temperature Single Crystal Growing Furnace
-
Horizontal Directed Crystallization (HDC) Tube Furnace Single Crystal Growing Furnace
-
Sapphire Crystal Automatic Machine Single Crystal Growing Furnace
Product Details
| Brand Name | CYKY | Model Number | EQ-SKJ-50CZ crystal growing furnace | |
| Place of Origin | Henan, China |
Product Description
CZ Crystal Growing furnace with Vacuum Chamber for Oxide Single Crystals
Introduction of CZ crystal growing furnace/crystal grower system
EQ-SKJ-50CZ is a high quality Cubic Zirconia Crystal Growth Furnace for material research laboratories. This furnace has
been proven to be excellent for pulling various oxide crystals with melting point up to 2100 oC, including Sapphire, GGG, YAG, LaAlO3, Si, and Ge, etc. with diameter up to 3". CY provides technical training on installing and operating this furance to customers before shipping. CY also provides online video technical support worldwide.
Technical parameter of CZ crystal growing furnace/crystal grower system
Working Voltage | 240V AC, 0.2-29 kHz, Three Phases |
Working Current | 100A |
Max. Power Consumption | 50 KW |
Melting Temperature | Max: 2100°C (3812°F) Accuracy: < +/- 0.2°C by Euro-thermo temperature controller |
Max. Vacuum Level | 10-3 torr by mechanical pump (included) 10-5 torr by diffusion pump (optional) |
Vacuum Chamber Size
| 500mm(Dia.) x 700mm(H) |
Water Cooling | Water flows through chamber jacket and crystal seed rod Water Pressure: 0.13 - 0.18 MPa Water Flowrate: 60 L/minute |
Controller | Electronic operation unit for controls of pulling, rotating, temperature |
Puller
| Driven by constant torque DC motors Pulling Rate: 0.1-20mm/h Max. Seed Rod Travel Distance: 400mm Rotating Rate: 0-40 RPM |
Crucible | Crucible Rod Raising Speed: Manual Crucible Rod Max. Travel Distance: 100mm Optional: Iridium Crucible and Refractory components are available upon request at extra cost. |
Product Dimensions | Crystal Growing Controller: 880mm(L) x 1250mm(W) x 2850mm(H) Control unit: 680mm(L) x 540mm(W) x 1700mm(H) RF Power supply: 800(L) x 500mm(W) x 1500mm(H) |

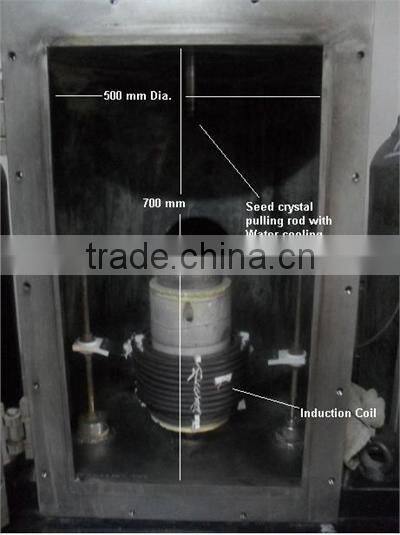

Vacuum chamber of crystal growing furnace
Puller of crystal growing furnace

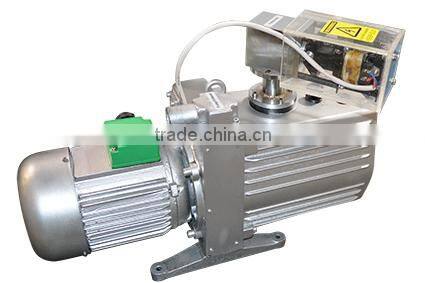

Vacuum pump for crystal growing furnace

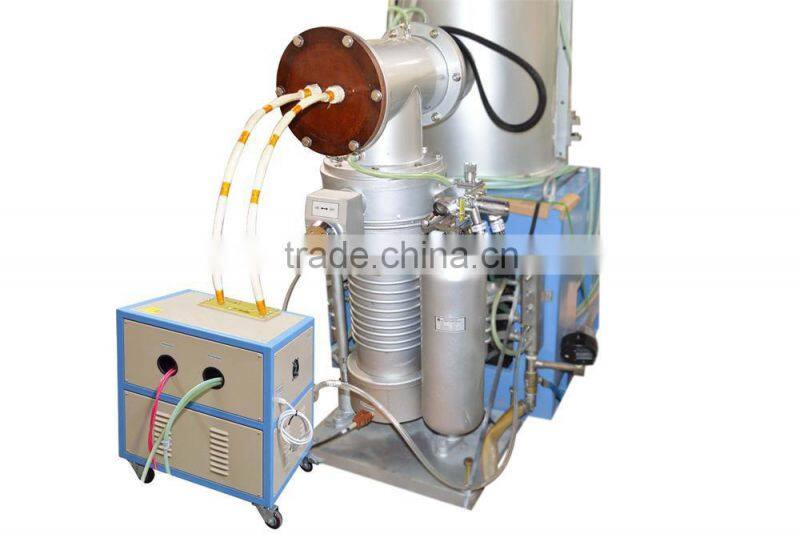

Other types of crystal growing furnace
1.One year free warranty.
2.All machines are debugged before shipment.
3.Lifetime technical support and service.
4.24 hours on line or phone or by email technical support.
5.We offer detailed machine manual and software manual.
6.Our factory make a vivid training CD.
7.Life-long free maintenance.
8.Free training in our factory.
Welcome to visit our factory, learn machine face to face.
24-hours online service makes your inquiry be reply immediately.
Zhengzhou CY Scientific Instrument Co.,Ltd locate in hi-tech zone, Zhengzhou city.It is a high-tech companies that engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches.Mainly focus on Our main products include:microwave sintering furnace, dental porcelain furnace, tube furnace,muffle furnace,,zirconia sintering furnace,Phosphor powder sintering furnace,crystal sintering furnace, battery material sintering furnace, CVD system, relative accessories and etc. determined to do advanced materials preparation equipment manufacturers and suppliers of leader.
