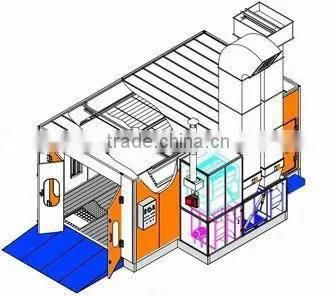

Car spray booth Zonda
- 150 Set / Sets per Month
- Shanghai
- T/T Credit Card
- spray booth car painting for car body repair equipment VPB-E800
- Vico CE Approved Car Spray Booth Paint Booth Baking Booth #VPB-E800
- Vico Hot selling Car Spray Booth Factory Price Car Spray Paint Booth Automotive Paint Box #VPB-E700
- Vico hot sale CE Certificate auto electric spray booth car painting booth VPB-E600
- CE Approved Vico Auto Spray Booth Car Painting/Spray car painting booth on hot sale VPB-SD58
- CE Approved Auto Paint Room Automotive Vehicle Spray Booth Car Body Painting Machine VPB-SD68
Product Details
Power: | 18KW | External Size: | 7000x5400x3400mm | Internal Size: | 6900x3900x2650mm |
Voltage: | 220V/380V | Certification: | CE | Place of Origin: | Jiangsu, China |
Brand Name: | Youda |
Product Description

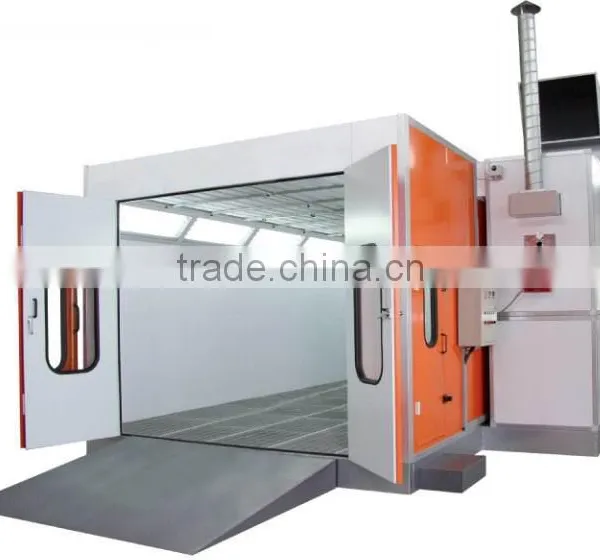

Car spray booth Zonda
Features:
Booth:
Double skinned walls are solid interlock panel construction, pre-coated finish and prevented with plastic film.
Entrance Doors:
Insulated, rubber gasket sealed doors with positive internal lock bar in threshold base and solid header base. Standard tri-fold.
Personnel Door:
Equipped with safety glass observation window, rubber sealed.
Lighting Fixtures:
Lighting units each with four 36W or 18W tubes inclined in ceiling or in wall panels for shadow free illumination.
Basement & Gratings:
Raised metal basement, galvanized grates and support structure, easy installation.
Booth Filtration:
Pre-Filtration: pre-filters reduce contamination of ceiling filters.
Ceiling Filters: European style blanket filters provides maximum air movement. 99% efficiency on 10 micron particles.
Floor Filter: Glass fibre paint stop filters, loacated under the gratings.
Extract Filter: Glass fibre paint stop floor filters as post-filtration in extraction cabinet.
Intake System:
Double-intake centrifugal fan or backward inclined turbo fan.
Filtering of incoming air as well as recycled air.
Extract System:
Double-intake centrifugal fan or backward inclined turbo fan.
Floor filters and post- filtration before extract fan minimize the pollution of atmosphere.
Heated Air Recirculating System:
High efficiency stainless indirect heat exchanger can be fired by either oil, natural gas or propane gas.
85-90% of cabin air is recycled during bake cycle through pneumatic by -pass damper, heat rise up to 80°c.
Indirect heat burner: Italian Riello Burner, heat capacity from 180000 to 280000 Kcal/h. Gas burner as optional.
Infirect fired heating system on request.
Electrical Control System
Designed for easy operation and reliability.
All components are recognized, listed or certified by CCC,UL,ETL, CAS or CE.
Model | 700II | 700I |
Inside Dimensions | 7000(L)X4000(W)X2650(H)mm | |
Outside Dimensions | 7120(L)X5420(W)X3350(H)mm | 7120(L)X5670(W)X3350(H)mm |
Wall Panels | prepainted steel sheet, double skined with insulation(EPS or Glass-wool), tongue and groove interlock construction, thickness: 60mm. | |
Doors | 3-fold main doors, 3000(W) x2600(H) mm. One personnel door, 800(W)x2000(H)mm | |
Basement and floor | Pit base (type 4) or raised metal-base (300mm high) with 3 rows of gratings and 2 rows of indented plates. | |
Intake | One backward inclined turbo fan, capacity: 20000cmh, motor:5.5kW, direct drive | Two double-intake centrifugal fans, capacity: 20000cmh, motor: 3kwx2, belt drive |
Extract | One backward inclined turbo fan, capacity: 20000cmh, motor: 5.5kW,direct drive | One double-intake centrifugal fan, capacity: 20000cmh, motor: 5.5kw, belt drive |
By-pass | Pneumatic damper from spraying to baking cycle | |
Heating System | Stainless heating exchanger, 60c°-80c° working temperature. Italy Riello one-stage oil burner.(gas burner optional) | |
Filter System | 4 sorts of filters: Prefilter, ceiling filter, floor paint-stop filter, extract paint-stop filter | |
Ceiling Filtration Area | 22m2 | |
Lighting | Upper inclined lights, 8 units, 4X36W each | |
Control System | World famous components, digital temperature readout, spray and bake temperature settings, bake timer, houer meter, over temperature alarm, indicator lights, emergency stop, photogenic pressure gauge with motorized damper control | |
Note | Type 1: 300mm high raised metal-base with two (2pcs.) ramps outside. (Standard) Type 2: 300mm high raised metal-base with ramps inside. Type 3: 300mm high raised metal-base, base-down installation, no ramps needed. Type 4: pit style installation, no raised metal-base needed. |
