Help CenterMade in China G24 12W Led PL Light
Related Products
-
2014 New Designg 24 Led Plug in Tube 10WUS$ 8 - 12.8MOQ: 10 Pieces -
2014 New Design 8w G24 Led Plug Lamps Lights DownlightsUS$ 7 - 10.8MOQ: 10 Pieces
-
2014 New Design 10w G24 pl Led Plug LighUS$ 8 - 12.8MOQ: 10 Pieces
-
2014 New Design pl G24 Led Bulbs Light 5WUS$ 4 - 7.8MOQ: 10 Pieces
-
2014 New Design Led pl Corn Light G24 7wUS$ 6 - 9.8MOQ: 10 Pieces
Specifications
G24 led pl light1,High quality E27 G24 B22 PL led
2,High CRI >80
3,6w 8w 10w 12w availiable
4.CE&ROHS 3years warranty

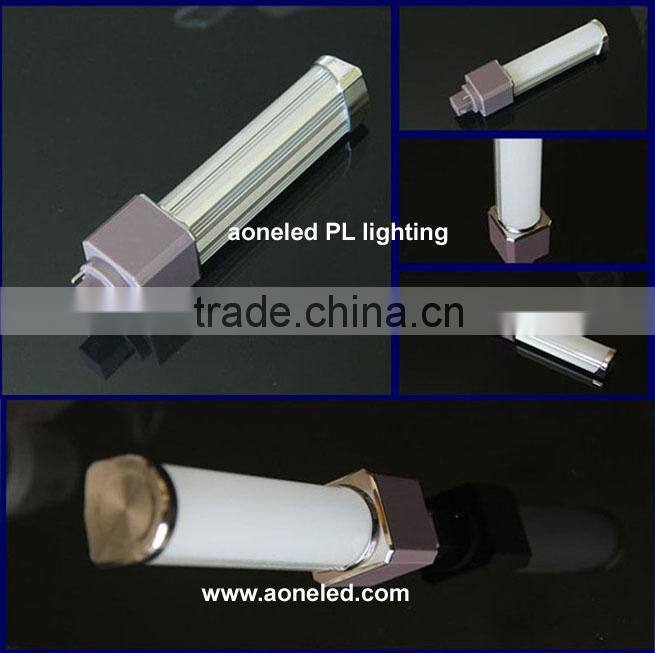

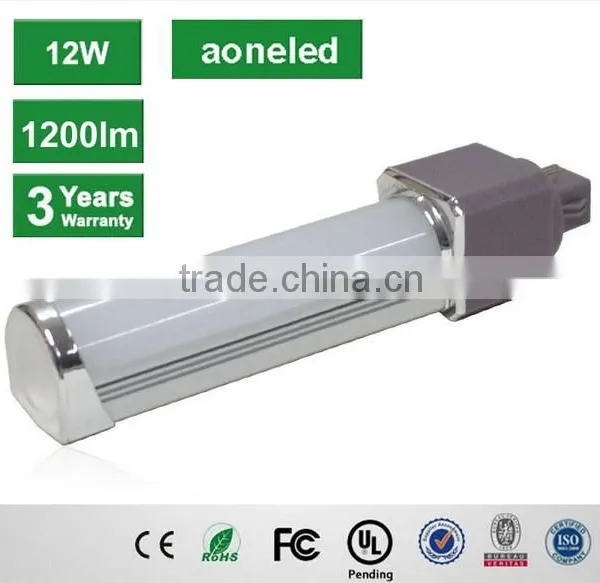

Made in China G24 12W 1200lm led PL light
| Type | G24 led pl light |
| Item No. | G240312W |
| Diameter | 31.5mm |
| Length | 185mm |
| Net Weight | 92g |
| Power | 12W |
| LED TYPE | SMD3014 |
| QUANTITY OF LEDS | 120pcs |
| Luminous Flux | 1200lm |
| Luminous Efficacy | >100lm/w |
| Life Span | ≥50000 hrs |
| Color Rendering Index | 80 Ra |
| Material | Aluminum Alloy + PC cover |
| Power Factor | More than 0.9 |
| Operating Voltage | AC100~240(50/60HZ) |
| Work Temperature | -40°C to 60°C |
| View Angle | 120° |
Product Manufacture Detail:

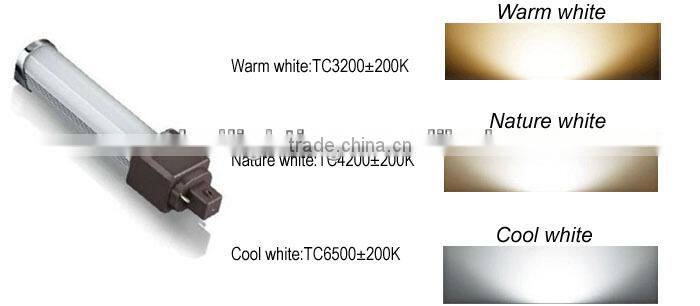

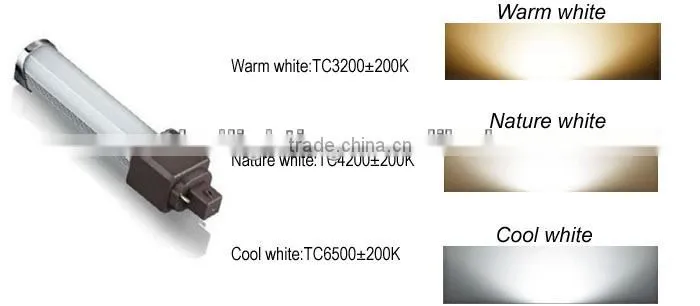

International Colour Temperature standard:
Features:
1. mercury and lead free
LED PL Lamp does not use mercury and lead, plays a protective effect on the environment. LED lighting is recognized as the green light of twenty-first century.
2.long life span
We use the high grade aluminum material, to increase heat dissipation area, long life, up to 30,000 hours.
3. Wide voltage input, suitable for users worldwide.
Traditional lamp is lightened through high voltage released by the rectifier. When the voltage is lowered, you can not light up. The LED lights in a certain range (90V-240V) can be lit within the voltage, also maintain its brightness.

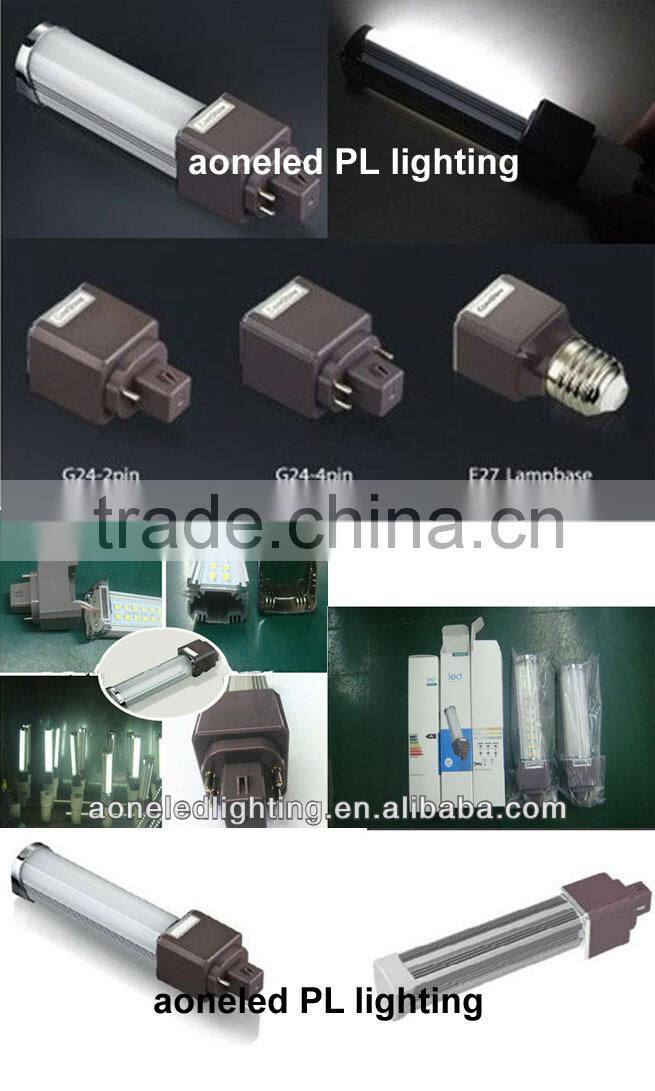

4. G23,E27,G24d,G24q2 etc end cap, directly replace your lamp.
Benefits
• 3014 SMD LEDs with high lumen efficiency > 100 LM/W
• Optimum light uniformity and high color homogeneity
• Extremely robust with aluminum heat sink and polycarbonate cover
• Power Factor: >0.95
• Overpower, short and open circuit protected
• NO noise, NO flicker, NO UV and IR
• Mercury-free and RoHS compliant
• Comply with CE, FCC and UL standards

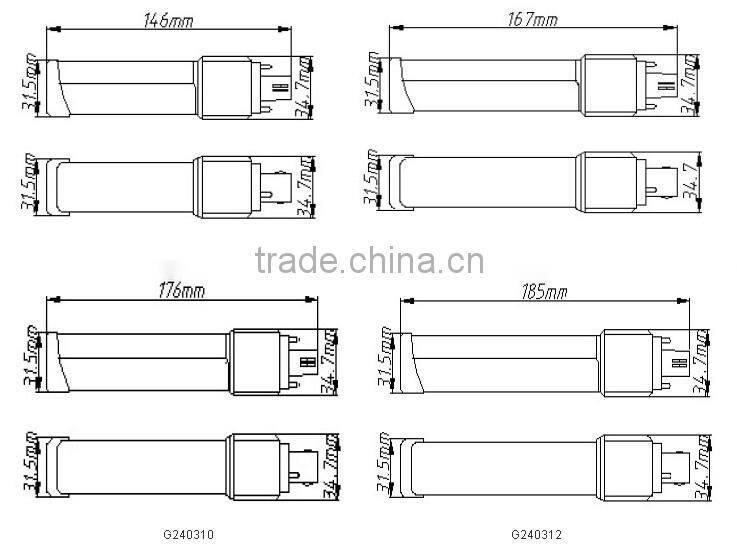

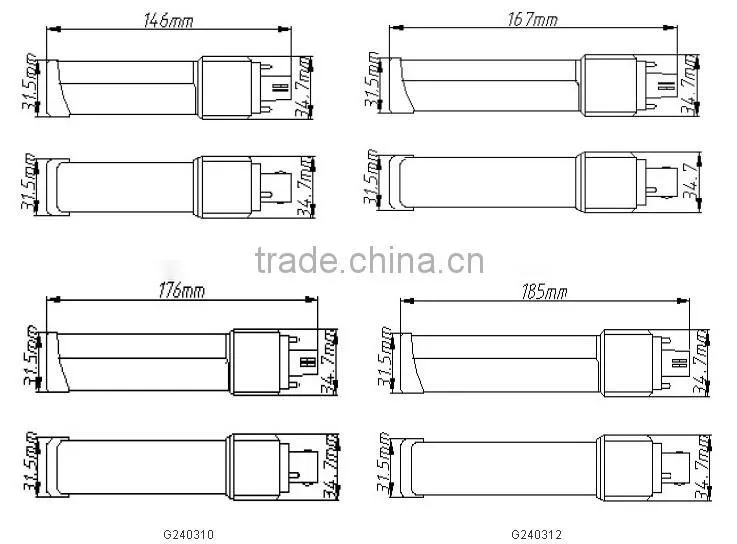

G2403 series detail
| Part No. | Input Voltage | LED Chip | LED QTY | Beam Angle | Dimension | Base | Lumens | Power |
| G24036W | AC85-265V | SMD3014 | 60 | 120 | 146*35*35mm | G24/E27/E26/B22 | 600lm ± 10%LM | 6W |
| G24038W | AC85-265V | SMD3014 | 80 | 120 | 167*35*35mm | G24/E27/E26/B22 | 800lm ± 10%LM | 8W |
| G240310W | AC85-265V | SMD3014 | 100 | 120 | 176*35*35mm | G24/E27/E26/B22 | 1000lm ± 10%LM | 10W |
| G240312W | AC85-265V | SMD3014 | 120 | 120 | 185*35*35mm | G24/E27/E26/B22 | 1200lm ± 10%LM | 12W |
Application:
PL lamps are a comprehensive application of LED optoelectronic fantastic light source that is both energy efficient and decorative allowing us to create an ambient setting or environment a special feature atmosphere.

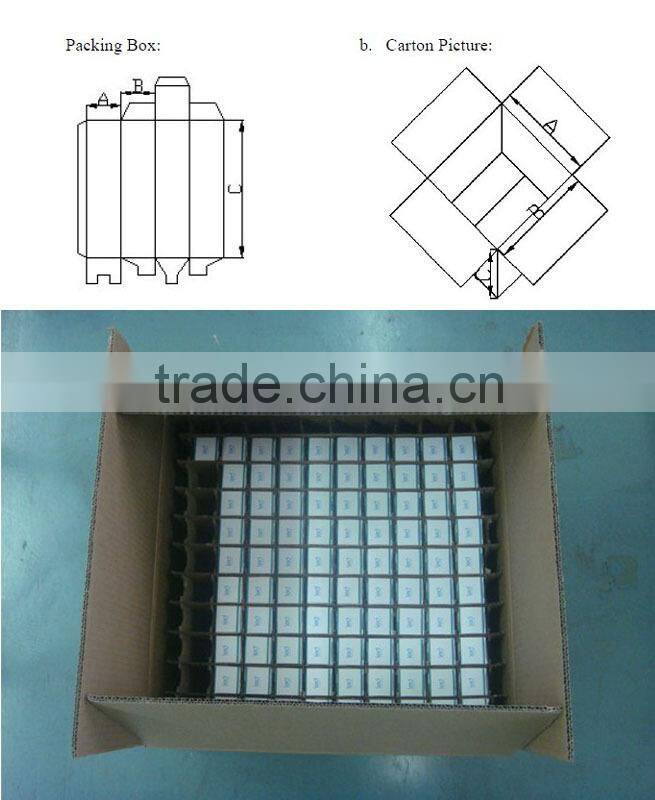

Packing:
1.CTN/QTY:100pcs
2.Gross Weight:13Kg
3.Carton Size(LxWxH):53x29x30mm
1. For all your inquires about us or our products,we will reply you in detail within 24 hours
2. We own well-tranied and passional sales & after –sale services who can speak fluent Engligh language
3. We offer OEM services. Can print your own logo on product, can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
5.Our convenient payment and effective transportation service:
Professional LED indoor Lighting, Choose A-ONE LED Choose satisfaction
Skype:aoneled12
