2014 new designg 24 led plug in tube 10W

Specifications

g24 led plug in tube
1,High quality G24 E27 E26 B22 PL led
2,High CRI >80
3,6w 8w 10w 12w
4.CE&ROHS 3years warranty

Made in China  g24 led plug in tube



Type	G24 led pl light
Item No.	G240310W
Diameter	31.5mm
Length	176mm
Net Weight	155g
Power	10W
LED TYPE	SMD3014
QUANTITY OF LEDS	100pcs
Luminous Flux	1000lm
Luminous Efficacy	>100lm/w
Life Span	≥50000 hrs
Color Rendering Index	80 Ra
Material	Aluminum Alloy + PC cover
Power Factor	More than 0.9
Operating Voltage	AC100~240(50/60HZ)
Work Temperature	-40°C to 60°C
Beam Angle	120°



Product Manufacture Detail:











International Colour Temperature standard:



Features:



1.   mercury and lead free

LED PL Lamp does not use mercury and lead, plays a protective effect on the environment. LED lighting is recognized as the green light of twenty-first century.



2.long life span

We use the high grade aluminum material, to increase heat dissipation area, long life, up to 30,000 hours.



3. Wide voltage input, suitable for users worldwide.

Traditional lamp is lightened through high voltage released by the rectifier. When the voltage is lowered, you can not light up. The LED lights in a certain range (90V-240V) can be lit within the voltage, also maintain its brightness.

      4.  G23,E27,G24d,G24q2 etc  end cap, directly replace your lamp.



Benefits

• 3014 SMD LEDs with high lumen efficiency > 100 LM/W

• Optimum light uniformity and high color homogeneity

• Extremely robust with aluminum heat sink and polycarbonate cover

• Power Factor: >0.95

• Overpower, short and open circuit protected

• NO noise, NO flicker, NO UV and IR

• Mercury-free and RoHS compliant

• Comply with CE, EMC and CE standards

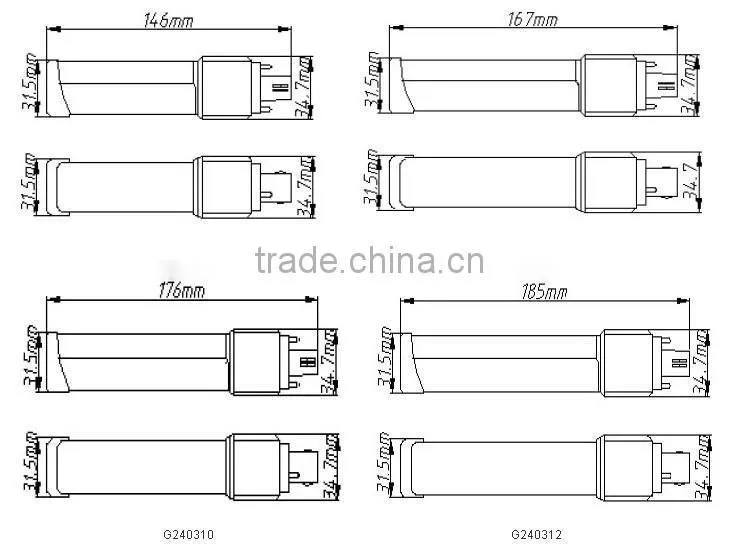

G2403 series detail

Part No.	Input Voltage	LED Chip	LED QTY	Beam Angle	Dimension	Base	Lumens	Power
G24036W	AC85-265V	SMD3014	60	120	146*35*35mm	G24/E27/E26/B22	600lm ± 10%LM	6W
G24038W	AC85-265V	SMD3014	80	120	167*35*35mm	G24/E27/E26/B22	800lm ± 10%LM	8W
G240310W	AC85-265V	SMD3014	100	120	176*35*35mm	G24/E27/E26/B22	1000lm ± 10%LM	10W
G240312W	AC85-265V	SMD3014	120	120	185*35*35mm	G24/E27/E26/B22	1200lm ± 10%LM	12W





Application:

PL lamps are a comprehensive application of LED optoelectronic fantastic light source that is both energy efficient and decorative allowing us to create an ambient setting or environment a special feature atmosphere.



Packing:







1. For all your inquires about us or our products,we will reply you in detail within 24 hours
2. We own well-tranied and passional sales & after –sale services who can speak fluent Engligh language
3. We offer OEM services. Can print your own logo on product, can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.





5.Certificate:



6.Our convenient payment and effective transportation  service:
