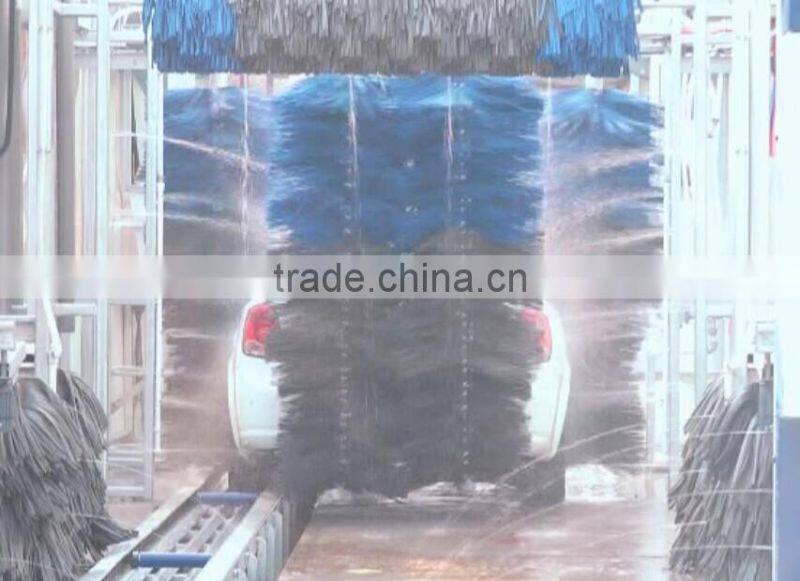

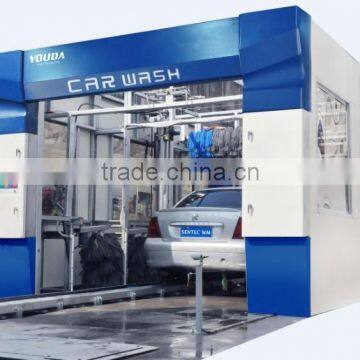

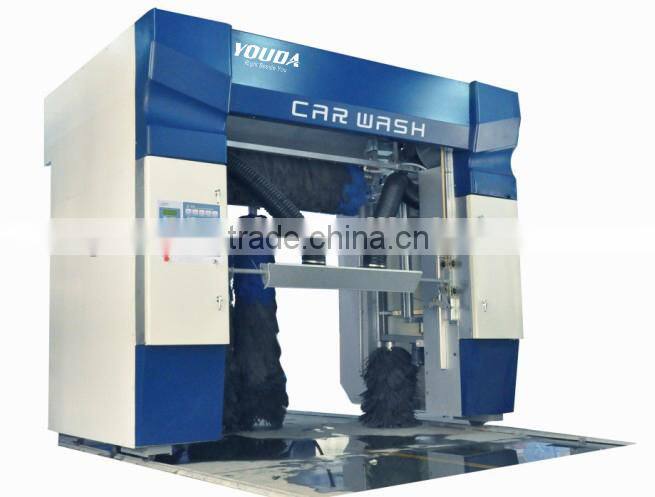

Automatic Tunnel Brush Car Wash Machine/ 5,7,9 Brushes is Optional

Name: Automatic Tunnel Brush Car Wash Machine/ 5,7,9 Brushes is Optional
Brand: Youda
SKU: 112041963
Availability: InStock

US$ 28,000 - 36,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Youda

Model Number:

DA-W900ST

Yancheng Youda Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Youda

Model Number DA-W900ST

Size W3800 x H2950 x L10750mm

Material Steel hot galavanzing

DA-W900ST Automatic tunnel brush car wash machine/ 5,7,9 brushes is optional

DA-W900ST Tunnel car washing machine featured as fast speed of washing and strong cleaning ability,

is equipped with second-generation cloth brush and foam brush; the perfect-angled side brush

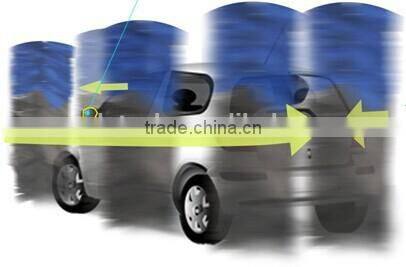

technology improves the cleaning ability extremely; the profiling air-dry technology ensures the

efficient drying; the unique design is qualified to dodge the bumpers to improve the safety; the

hot-dip galvanized frame ensures a longer service time.

Main Futures:

1. Professional washes for cars, jeeps and all kinds of coaches below 9 seats;

2. Adopting advanced technology and full module design, this can be combined to more than ten different functions for different needs;

3. The main electrical components are imported from famous foreign factory, which can ensure safe and reliable;

4. Unique fault self-testing system;

5. Adopting the advanced high pressure system; Pre- swing high pressure water wash does not hurt the car;

6. Hot-dip galvanizing (Zinc layer>70um) frame;

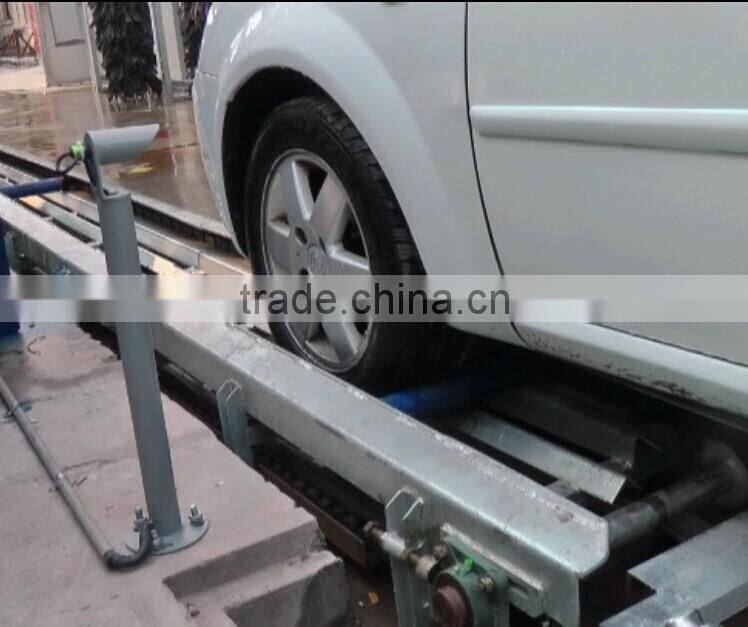

7. Maintenance-free of polymer materials roller and TN lifting mechanism;

8. Japanese EVA brushes to prevent injury car;

Technical Data:

Item	Model	DA-W900ST-1 (Standard)	DA-W900ST-2	DA-W900ST-3
Size	Machine size	W3800 x H2950 x L10750mm
Size	Washable car size	W2250 x H2250 x L5350mm
Installation	Assembling range	W4000 x L13500mm (does not include the area for car in and out)
	Air supply	Pressure 0.6-0.8Mpa
	Total electrical capacity	12KW
Cost consumption	Total power	13.45KW	16.475KW	17.525KW
	Maximum operating power	11.4KW	11.4KW	11.4KW
	Various components Power	Top brush 0.3KWx1	Top brush 0.3KWx1	Top Brush 0.3KWx1
		Side brush 0.3KWx4	Side brush 0.3KWx4	Side brush 0.3KWx2
		Small brush 0.2KWx4	Small brush 0.2KWx2	Small brush 0.2KWx2
		Conveyor Traveling1.1KWx1	Conveyor Traveling 1.1KWx1	Conveyor Traveling 1.1KWx1
		Water Pump0.75KWx1	Water Pump 0.75KWx1	Water Pump 0.75KWx1
		Dryer 5.5KWx2	Dryer 5.5KWx2	Dryer 5.5KWx2
		High pressure pump4KWx1	High pressure pump 4KWx1	High pressure pump 4KWx1
		Swing motor0.025KWx3	Swing motor 0.025KWx3	Swing motor 0.025KWx3
	Water consumption	125L	125L	125L
Wash	Washable car	car, jeep, coach below 9 seats
	Liquid using	shampoo	shampoo	shampoo
	Liquid using	wax	wax	wax
	Washing time	40sets/hour	50sets/hour	60sets/hour
