Super touchless car wash machine with high pressure, Japan cooperate
CE Approved
DA-W200ST Touchless car wash machine is qualified to wash and spray foam, water and wax automatically, which covers small space and operates easily; there is no need for customer to concern the car paint destroyed by the brush since it is brushless. The dual-swing-arm spraying system ensures the easy and complete full-scope cleaning.
Main Futures:
1. The machine is controlled by intelligent CUP.
2. Swing arm move in 360 round, can clean any where of cars.
3. Cover a small area, saving space and easy to operation.
4. Bottom wash and high pressure water gun are as optional.
Technical Data :
Model |
DA- W200ST-1 (Standard) |
DA- W200ST-2 |
|
Parameter |
Machine Size |
L4080mm×W3580mm× H2850mm |
L6080mm×W3580mm× H2850mm |
Assembling range |
L6300mm×W4000 |
||
Wash type |
car, jeep, coach below 10 seats |
||
Washable car size |
L5300mm×W2300mm×H2250mm |
||
Washing ways |
2 roll over shampoo wash ,2 roll over wax wash |
||
Washing time |
2 roll over 1minute 20 seconds (without hand wipe-time) |
||
| |||
Cost consumption |
Water consumption |
120L/set |
|
Power consumption |
0.27kwh/set |
0.15kwh/set |
|
Shampoo consumption |
7ml/set |
||
Wax consumption |
12ml/set |
||
Total electrical capacity |
8.55KW |
6.47KW |
|
| |||
Installation |
Power required |
AC380V50Hz volume 15KVA |
AC380V50Hz volume 11KVA |
Water required |
Pipe diameter DN25 flow≥100L/min |
||
Air supply |
Pressure0.75~0.9Mpa/flow≥0.1m³/min |
||
Surface roughness |
error≤10mm |
||
Photos:
Foam:

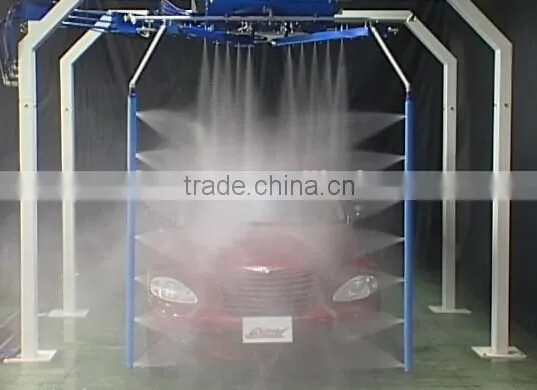

High pressure wash:

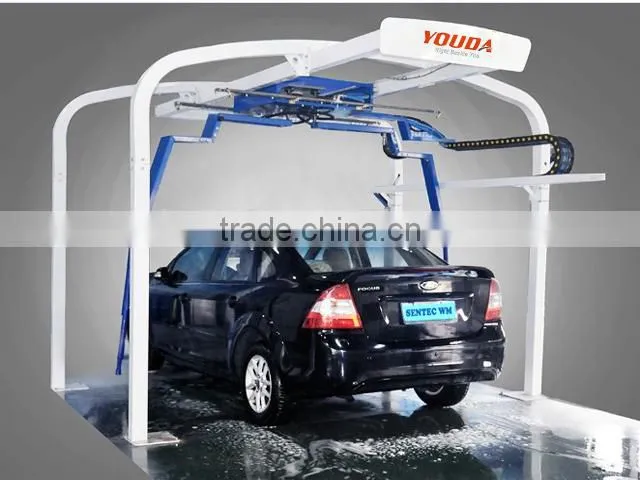

DA-W200ST-1:
DA-W200ST-2: with long length

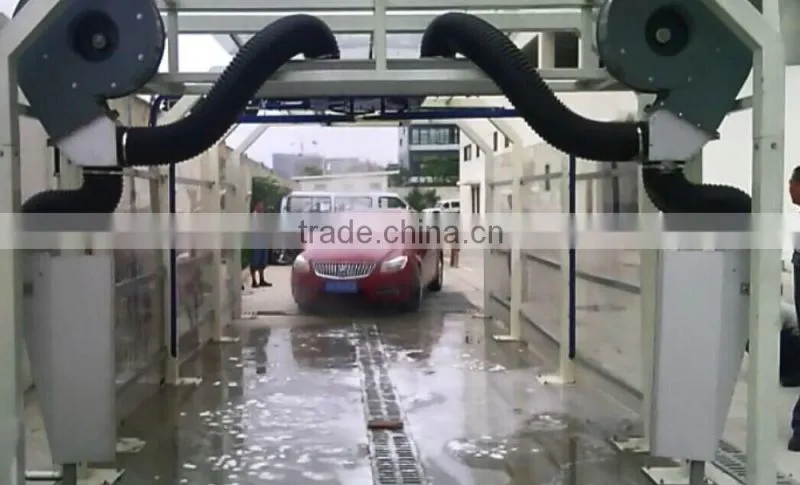

Popular used at the wash shop:

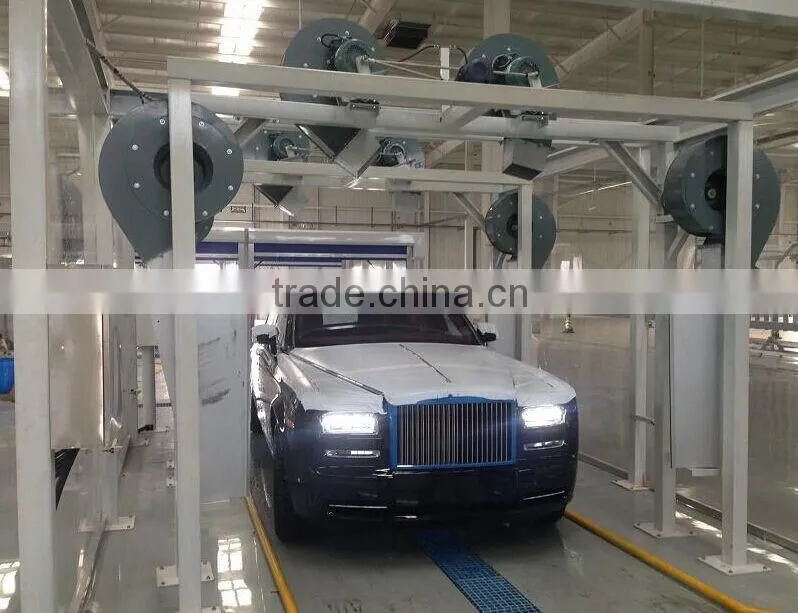

Dry optional: 2 types for choose
Fixable:
Movable:
If you are interested, pelase send us inquiry freely.
