DA-W200A Automatic Touch Free Car Wash, Touch Free Car Wash Machine, Touch Free Car Wash System , CE Approved
The DA-W200A series car washing equipment is fully automatic system and specifically used to clean for cars and various small vans. The equipment is gantry type systems, where the vehicle is driven in position and remains stationary and gantry moves over the vehicle and executes all operations. It is equipped high-pressure nozzle which can wash on the vehicle surface. The complete equipment is built as modular structure and transported in partly-assembled form. The steel structure is galvanized and painted, to avoid corrosion in the harsh car wash conditions.
Main Futures:
1. Economical and practical;
2. Without any direct touching to the vehicle;
3. With high-pressure jet wash technology to remove the dirt adhered to the
car surface;
4. With high pressure water wash and foam systems.
5. Low cost for power and water.
6. With control box, easy to operate.
7. Optional dry systems and water recycle systems.
Technical Data :
|
The main control electric appliance: |
The French Schneider electric |
Track length: |
6000MM |
Foam system: |
1 set |
Machine length: |
900MM |
Swing jet: |
8 sets |
Machine width: |
3000MM |
Under BWash Spray system: |
10 groups |
Machine height: |
2500MM |
High pressure pump |
Taiwan imports |
Effective washing: width |
2300MM |
Material: |
by hot-dip galvanizing plus paint outdoors |
Effective washing Height: |
2000MM |
Optional colors: |
Red, yellow, blue, white, green |
Remote control System: |
1 Set |
Water consumption: |
40-70 liters/car |
Power consumption: |
0.2KWH/car |

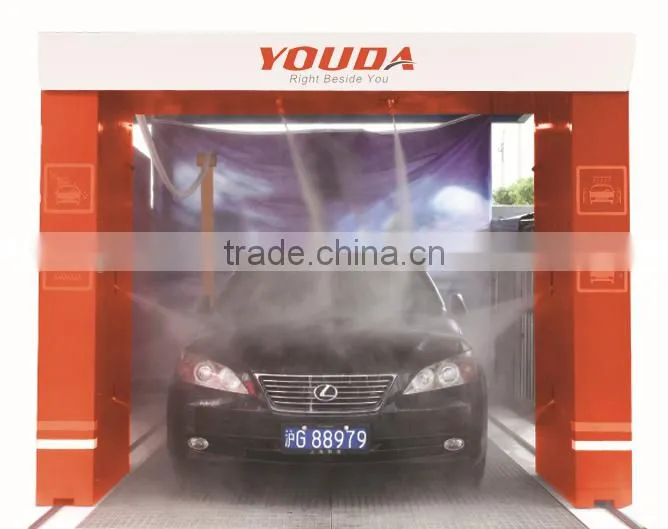

Photos for machine:
color is optional: red, yellow, blue, any other.
Under chassis cleaner systems:
Dry systems optional:
Technical Data:
NO |
Name |
Data |
1 |
High pressure blowers |
6 SETS X 3KW |
2 |
Electric Control |
French Schneider Electric |
3 |
The machine size |
500MMx3300x2900mm(LXWXH) |
4 |
Effective drying width |
2200MM |
5 |
Effective drying height |
2000MM |
Photos for Dryers:
Water recycle systems optional:
Type |
Techinical data |
2T water recycle systems |
Size |
Length |
1750mm |
|
Width |
600mm |
|
Height |
1850mm |
Energy Consumption |
Total power |
1.8kw |
|
Max operating power |
1.05kw |
|
Submersible sewage pump |
0.75kw |
|
Aeration pump |
0.3kw |
|
Backwash pump |
0.75kw |
|
Power |
AC380V50HZ |
Control |
Filter |
Full Automatic |
|
Aeration |
Full Automatic |
|
Back wash |
Manual operate |
Use |
processing scope |
car washing water |
|
Processing ability |
2m3/h |
If you are interested, pelase send us inquiry freely.
