Washing car machine automatic
DA-W300ST is equipped with new-generation car model detection technology which is featured as combination of various ways of car washing and fast speed of cleaning, the profiling air-dry technology ensures the efficient drying; the combination of various ways of washing improves the washing speed; the hot-dip galvanized frame ensures a longer service time.
Main Futures:
1. Professional washes for cars, jeeps and all kinds of coaches below 9 seats;
2. Adopting advanced technology and full module design, this can be combined to more than ten different functions for different needs;
3. The main electrical components are imported from famous foreign factory, which can ensure safe and reliable;
4. Unique fault self-testing system; Waterproof motor; profiling powerful air-dry system
5. Adopting the advanced high pressure system; Pre- swing high pressure water wash does not hurt the car;
6. Hot-dip galvanizing (Zinc layer>70um) frame;
7. Maintenance-free of polymer materials roller and TN lifting mechanism;
8. Japanese EVA brushes to prevent injury car;
car wash machine price, best and high quality
Technical Data:
Item |
Model |
DA-W300ST-1 |
DA-W300ST-2 (Standard) |
DA-W300ST-3 |
Size |
Machine size |
W3600 x H2850 x L2460mm |
||
Rail size |
W3200 x L8150mm |
|||
Swing arm size |
H2850mm |
|||
Washable car size |
W2150 x H2200 x L5350mm |
|||
Installation |
Assembling range |
W3650 x L9800mm |
||
Air supply |
Pressure 0.6-0.8Mpa |
|||
Total electrical capacity |
12KW |
|||
Cost consumption |
Total power |
13.45KW |
16.475KW |
17.525KW |
Maximum operating power |
11.4KW |
11.4KW |
11.4KW |
|
|
Various components Power
|
Top brush 0.3KWx1 |
Top brush 0.3KWx1 |
Top Brush 0.3KWx1 |
|
|
Side brush 0.3KWx2 |
Side brush 0.3KWx2 |
Side brush 0.3KWx2 |
||
|
Small brush 0.2KWx2 |
Small brush 0.2KWx2 |
Small brush 0.2KWx2 |
||
Conveyor Traveling 0.2KWx2 |
Conveyor Traveling 0.2KWx2 |
Conveyor Traveling 0.2KWx2 |
||
Water Pump 0.75KWx1 |
Water Pump 0.75KWx1 |
Water Pump 0.75KWx1 |
||
Dryer 5.5KWx2 |
Dryer 5.5KWx2 |
Dryer 5.5KWx2 |
||
|
High pressure pump 3KWx1 |
High pressure pump 4KWx1 |
||
|
Swing motor 0.025KWx1 |
Swing motor 0.025KWx3 |
||
Water consumption(one roll over wash) |
70L |
125L |
125L |
|
Wash |
Washable car |
car, jeep, coach below 9 seats |
||
Washing ways |
1 roll over economy wash |
1 roll over economy wash |
1 roll over economy wash |
|
2 roll over standard wash |
2 roll over standard wash |
2 roll over standard wash |
||
|
|
2 roll over hand wash |
||
Liquid using |
shampoo |
shampoo |
shampoo |
|
wax |
wax |
wax |
||
|
FK coating |
foam |
||
|
|
FK coating |
||
Washing time |
1 roll over wash: 3mins, 2 roll over wash: 5mins |
|||
Parts of automatic car wash equipment

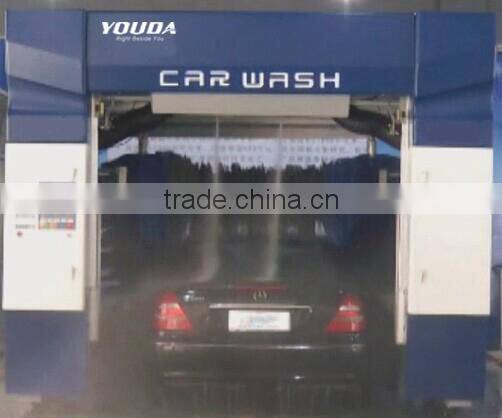

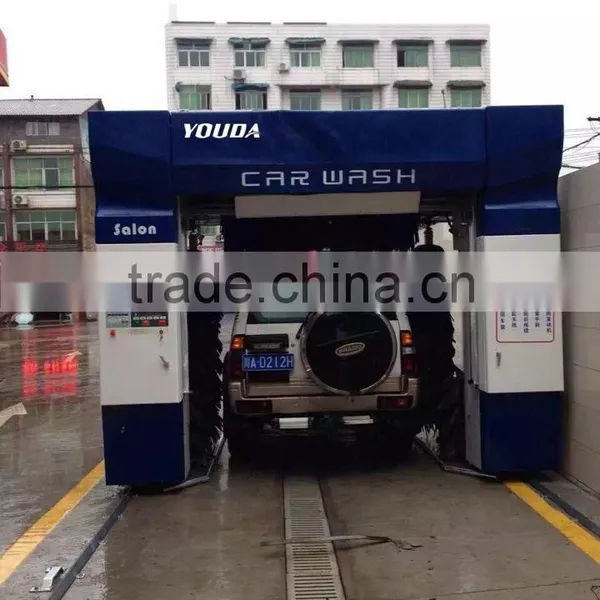

DA-W300ST
High pressure water wash before brush washing( this is optional process)
Japanese EVA Brushes:

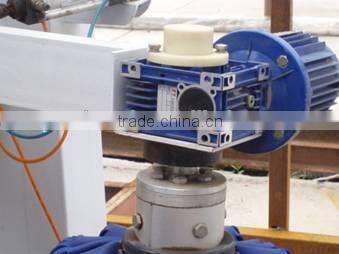

Motor:

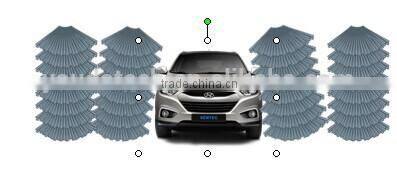

Washing for side brushes:

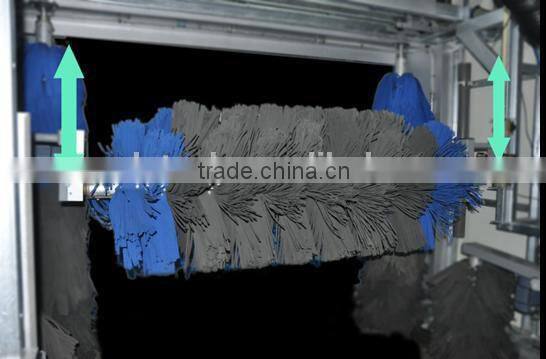

Washing for top brushes:

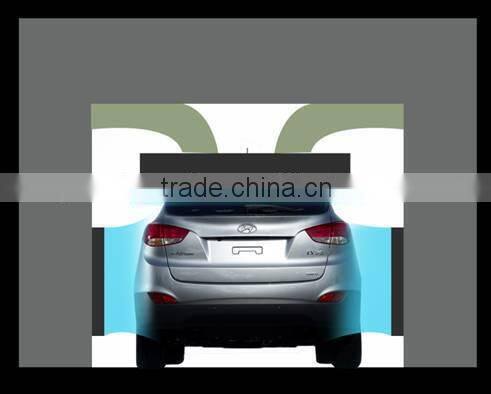

Dry systems:
If you would like to see the video, please feel free to send us your inquiry.
Other models car wash equipment for your reference:

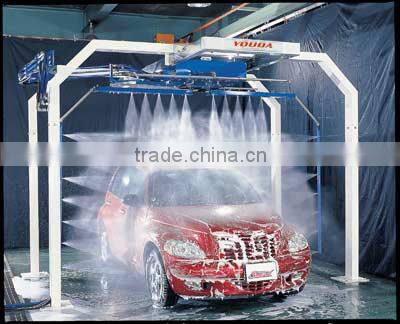

DA-W200ST Toucless Car Wash Machine:
(The blower is optional)

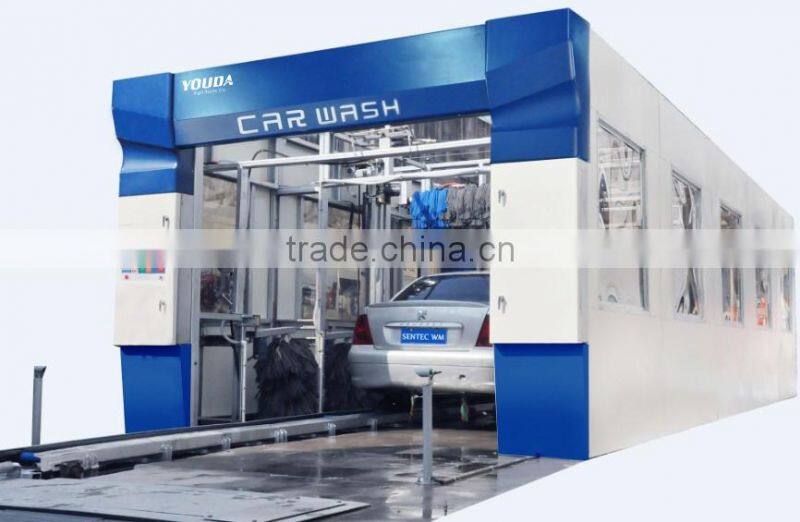

DA-W900ST Automatic Car Wash Machine
(5 brushes, 7 brushes, 9 brushes is optional)
If you are also interested in above model, please click the website and view the details:
http://youdatech.en.china.cn/ and send inquiry to us. Thank you.
