2 post hydraulic garage car lift with 3200kg/4000kg capacity
Features:
1. Floor plate design is idea choice for low ceiling shop.
2. By two cylinder, plate and wire rope chain balance system, lifting and lowering smooth.
3. Hydraulic power unit configuration throttling device, and always adjust the rate of decline.
4. Manual mechanical lock release from two sides.
5. 24V height limit switch. Asymmetric arm design, leaves more space for the cars.
6. Rubber pad with spiral adjust the height and in stages adjust the height.
7. Rubber pad door-opening protection.
8. Feet-protection safety guardrails.
9. It has adopted 115% dynamic loading capacity and 150% staic loading capacity tested.
10. CE certificated.
Technical Data:
Lifting capacity: |
3200KG |
Overall height: |
2830nm |
Lifting height: |
1900mm |
Overall width: |
3420mm |
Min height: |
110mm |
Width between columns: |
2820mm |
Lifting time: |
40-45s |
Motor power: |
2.2KW |
Weight: |
592kg |
Power supply: |
220/240/380/415V |
Packing size: |
2900x530x770mm |
20’ container |
24 sets |

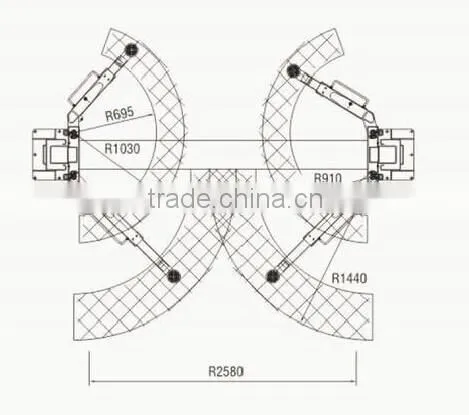

Lift Design:
More details about the goods:
