Specifications
1.Flexible Modular,low cost2.Channels:4,6,8
3.high/low pass filter
4.other types of charge amplifiers are available
1.Introduction
Charge amplifiers convert the charge output by a piezoelectric sensor into a proportional voltage, which is used
as an input variable for analysis systems, and can be digitized in an analog-to-digital (A/D) converter if necessary. A charge amplifier basically consists of an inverting voltage amplifier with a high open-loop gain and capacitive negative feedback. It relies on a metal oxide semiconductor field effect transistor (MOSFET) or a junction field
effect transistor (JFET) at its input to achieve high insulation resistance and minimize leakage current. If the open-loop gain is sufficiently high, the cable and sensor capacitance can be neglected, leaving the output voltage
dependent on just the charge at the charge amplifier input and the range capacitor.
2.Features:
Assembled Multi-channels (4chs,6 chs and 8 chs available);
Small size, high integration ;
Three decimal-system uniformization output(1-10 pC/UNIT);
Switchable for Gain and LPF ;
Low noise and wide frequency band(0.3 to 100kHz);
Low price, suitable for multi-point test;
Overload indication
3.Specification
Model |

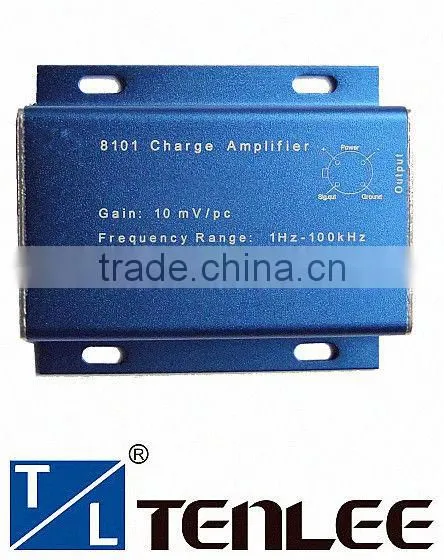

8101A/B |

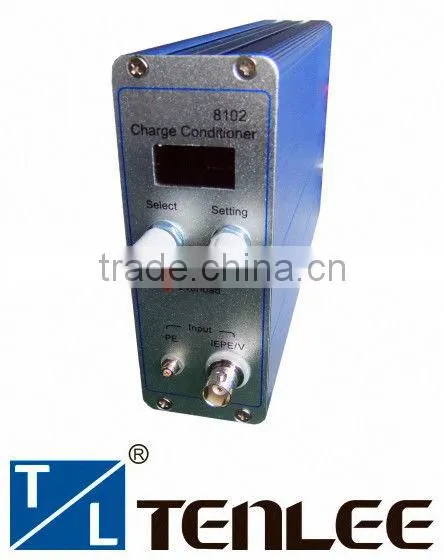

8102 / 8102I |

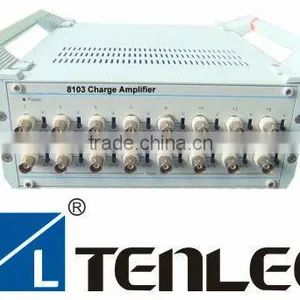

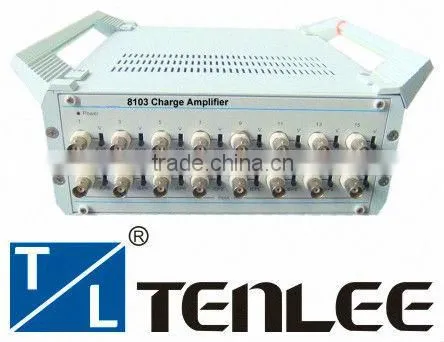

8103 |
Input Range |
±104pC |
Voltage/IEPE:±10V ; Charge:±106pC |
±105pC |
Sensitivity uniformization |
Fixed |
0.100 to 999 |
1.00 to 10.99 |
Gain |
1 to 100mV/pC(Fixed, Customized) |
0.01,0.1,1,10,100,1000mV/pC |
0.1,1,10,100, 1000mV/pC |
High-pass Filters |
1Hz(Fixed) |
A:0.3,1,10,30,100Hz; V:1Hz; D:1Hz |
0.3Hz (Fixed) |
Low-pass Filters |
≤100kHz(Fixed, Customized) |
0.3,1,3,10,30,100kHz |
0.3,1,3,10,30,100kHz |
Accuracy |
±1% |
A:±1%;V: ±3% ;D: ±3% |
±1% |
Noise |
≤10μV |
≤5μV |
≤5μV |
Output Range |
±5V |
±10V |
±10V |
Power Supply |
A type:±14V to ±18VDC B type: +14V to +28VDC |
220V50Hz0.1A /110V60Hz0.2A |
220V50Hz0.3A /DC±18V |
Operating Temperature |
-10 to +50°C |
-10 to +50°C |
-10 to +50°C |
Weight |
90Gram |
1.3kg |
5.0kg(6 channels) |
Size |
L80×W50×H24mm |
W45×H122×D200mm |
W236×H132.5×D300mm |
