Specifications
1.lateral type2.more than 10 years experience
3.210/230/250 mm phase distance
4.IEC,GB
5.export to Europe,oem

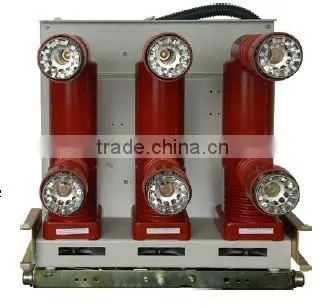

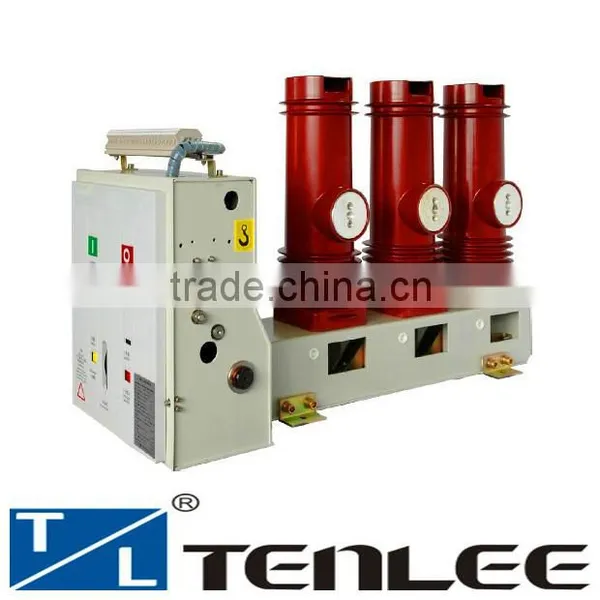

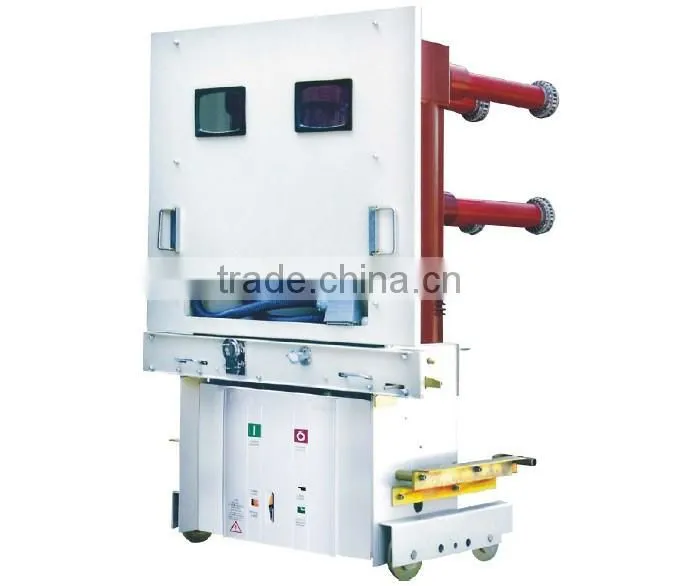

lateral vacuum circuit breaker is developed by ourselves. It embodies our ideas: compact, intelligent,
environmental-friendly, energy-efficient and maitenance-free.
Its three phase main circuits are lengthways displayed. It has small width and dimensions. It can be
fixedly installed in kinds of box type substations, ring main unit and fixed switchgears.
It is widely used in power distribution and transforming systems of power stations, power generators,
mines, industries, airport, subways, and residential area
Applied standards
-GB1984 high voltage AC breaker
-GBT/11022 common technical specifications for high voltage switchgear and control gear standards
-DL/T403 12KV-40.5KV high voltage vacuum circuit breaker ordering technical specifications
-IEC62271-100 high voltage switchgear and control gear part 1: AC breaker
-IEC56 and similar standards in other main industrialized countries
service environment
-Ambient temperature:
-15~+40 Celsius, daily average should not be larger than + 35Celsius -Relative humidity:
daily average relative humidity should be less than or equal to 95%Monthly average relative humidity
should be less than or equal to 90% -Altitude should be less than 1000m
-Anti-seismic ability:
seismic intensity should not be less than or equal to 8 degrees
-No obvious dust, smoke, corrosive gas, combustible gas, steam or salt mist in the surrounding air
Other application environment, please contact us.
Safety
VTL3 series fixed lateral type vacuum circuit breaker has perfect mechanical and electrical interlocking
device. It has high operation reliability and long service life. Used with relevant switchgears, it can offer
safe power distribution function to ensure the safety of the operators and equipments.

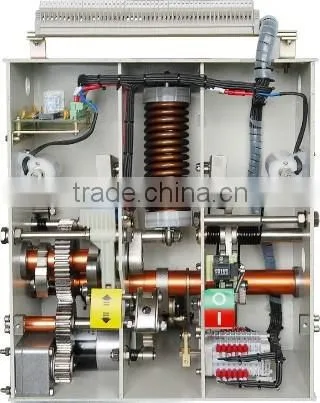

Operating mechanism:
Modularized operating mechanism is another feature of VTL3. The operating mechanism is
located in the chassis which is in front of vacuum interrupter. It is convenient to maintain and
rapid to replace.
Poles:
We can supply three kinds of poles for VTL3 series lateral vacuum circuit breakers. They are
embedded poles, assembly poles type 1 and assembly poles type2.
embedded pole
assembly pole
Specifications:
Item |
Unit |
Parameters |
|
Rated voltage |
KV |
12/17.5 |
24 |
Power frequency withstand voltage 1 min |
KV |
42 |
65 |
Lightning impulse withstand voltage (peak value) |
KV |
75 |
125 |
Rated frequency |
Hz |
50/60 |
|
Rated current |
A |
630/1250/1600/2000/2500 |
|
Rated short circuit breaking current |
KA |
20/25/31.5 |
|
Rated short circuit making current (peak) |
KA |
50/63/80 |
|
Rated short time withstand current (4s) |
KA |
20/25/31.5 |
|
Rated peak withstand current |
KA |
50/63/80 |
|
4S thermal stability current |
KA |
20/25/31.5 |
|
Rated dynamic current |
KA |
50/63/80 |
|
Rated single/back-back capacitor bank breaking current |
KA |
630/400 (800/400 while the current is 40KA) |
|
Mechanical life |
Times |
10000,30000,60000 |
|
Drawings:
Other types of VCB we can supply:
Production line:
We can arrange the following shipping:
sea shipping
air shipping
express
we can supply paid samples for test.
If any problems resulted from quality and mal-manufacturing, our after-sales service will help
you solve these problems.
We will help you with technical problems during installation and marketing.
Combining manufacturing experience, new technology and industrial knowledge, TENLEE aims to build advanced power distribution and protection systems.
TENLEE is specialized in designing and manufacturing a comprehensive range of solutions from 12kv to 36kv for indoor/outdoor systems: complete medium voltage switchgear
vacuum circuit breakers
reclosers
load break switches
disconnector switches
cast-resin transformers from
power automation systems
Tenlee has several years of exporting experience. Our customers are all over the world, including Europe, Asia, Africa, America, Middle East. Most of our products are exported to Europe and are well recognized by them.
1. Do you have other types of indoor vacuum circuit breaker?
Yes, we can offer 12kv,24kv,36kv,40.5kv indoor vacuum circuit breaker both lateral type and frontal type. You can contact us for more details.
2.What is the payment term?
T/T, wire transfer, west union
3. How about the warranty period?
Usually we offer a 12-month warranty period.
4.Do you have type test?
Yes, we have type test in China and we have also passed type test in Europe.
5.How can I order?
Please contact us and tell us your detailed request. Then we will send you our plan
