Specifications
1.long mechanical life2.more than 10 years experience
3.up to 40.5kv available
4.IEC,GB
5.export to Europe,oem

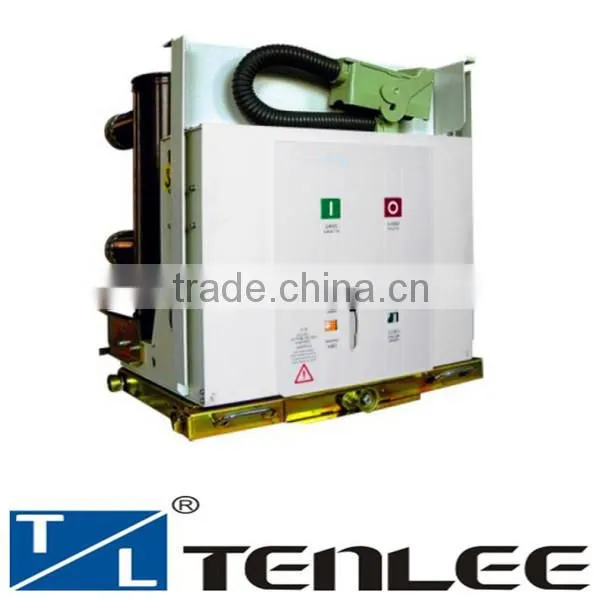

VD4series vacuum circuit breaker is used in indoor high voltage switchgear systems. The overal l structure of it is composed of switch main body and operating mechanism. The operating mechanism is spring loaded type, you can choose electrical operation or manual operation.
It uses composite insulated material, so it does not have pollution and explosion problems.
With particular advantages, it is suitable for some network where there is high switch frequency in the working current range or where repeatedly short circuit breaking operations happen.
VD4 type vacuum circuit breaker can be used as individual units for switchgear type KYN28, AMS, GZS1, ZS1,Unigear and so on.
Applied standards
-GB1984 high voltage AC breaker
-GBT/11022 common technical specifications for high voltage switchgear and control gear standards
-DL/T403 12KV-40.5KV high voltage vacuum circuit breaker ordering technical specifications
-IEC62271-100 high voltage switchgear and control gear part 1: AC breaker
-IEC56 and similar standards in other main industrialized countries
Advantages and features
The rated voltage of VTL4 vacuum circuit breaker is 24KV, the rated current is up to 2500A and the rated short circuit breaking current is up to 31.5KA.
The VTL4 is equipped with a new type modularized single spring operating mechanism. It is convenient to maintain, easy to replace and is more reliable.
VTL4 have two installation type: fixed type and withdrawable type. Both types can realize reliable mechanical interlocking. It can be installed directly in kinds of fixed switchgears and also on the handcart of the withdrawable switchgears.
Specifications
Item |
Unit |
Parameters |
Rated voltage |
KV |
24 |
Power frequency withstand voltage 1 min |
KV |
65 |
Lightning impulse withstand voltage (peak value) |
KV |
125 |
Rated frequency |
Hz |
50/60 |
Rated current |
A |
630/1250/1600/2000/2500 |
Rated short circuit breaking current |
KA |
20/25/31.5 |
Rated short circuit making current (peak) |
KA |
50/63/80 |
Rated short time withstand current (4s) |
KA |
20/25/31.5 |
Rated peak withstand current |
KA |
50/63/80 |

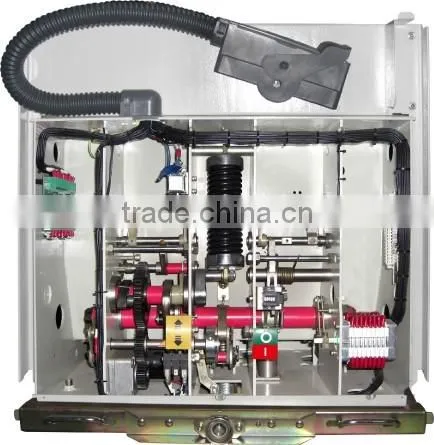

Operating mechanism:

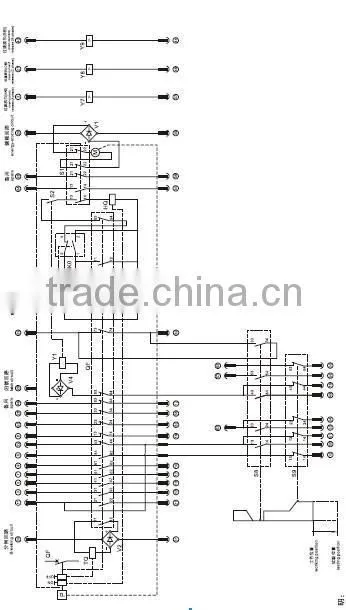

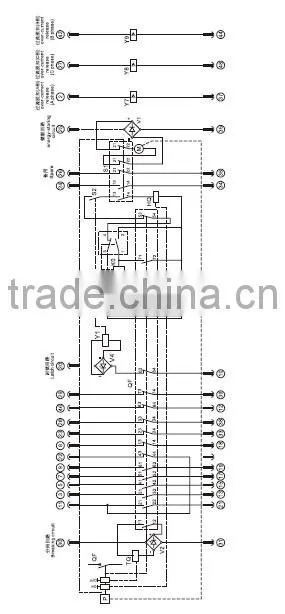

Schematic diagram:
Production line:
we can supply paid samples for test.
If any problems resulted from quality and mal-manufacturing, our after-sales service will help you solve these problems.
We will help you with technical problems during installation and marketing.
Combining manufacturing experience, new technology and industrial knowledge, TENLEE aims to build advanced power distribution and protection systems.
TENLEE is specialized in designing and manufacturing a comprehensive range of solutions from 12kv to 36kv for indoor/outdoor systems: complete medium voltage switchgear
vacuum circuit breakers
reclosers
load break switches
disconnector switches
cast-resin transformers from
power automation systems
Tenlee has several years of exporting experience. Our customers are all over the world, including Europe, Asia, Africa, America, Middle East. Most of our products are exported to Europe and are well recognized by them.

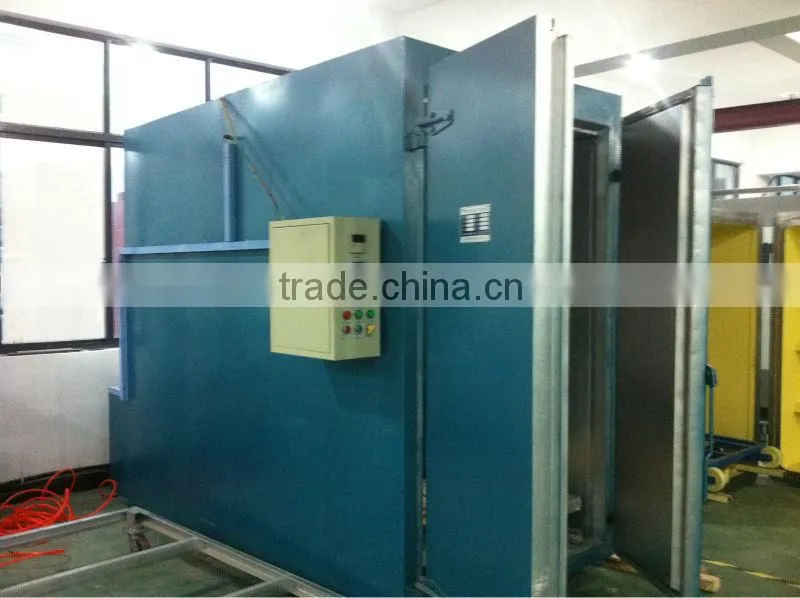

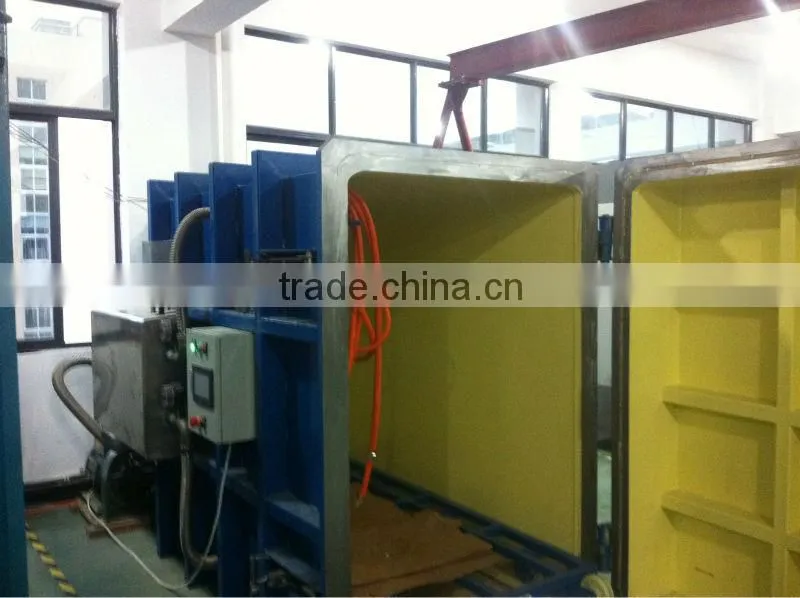

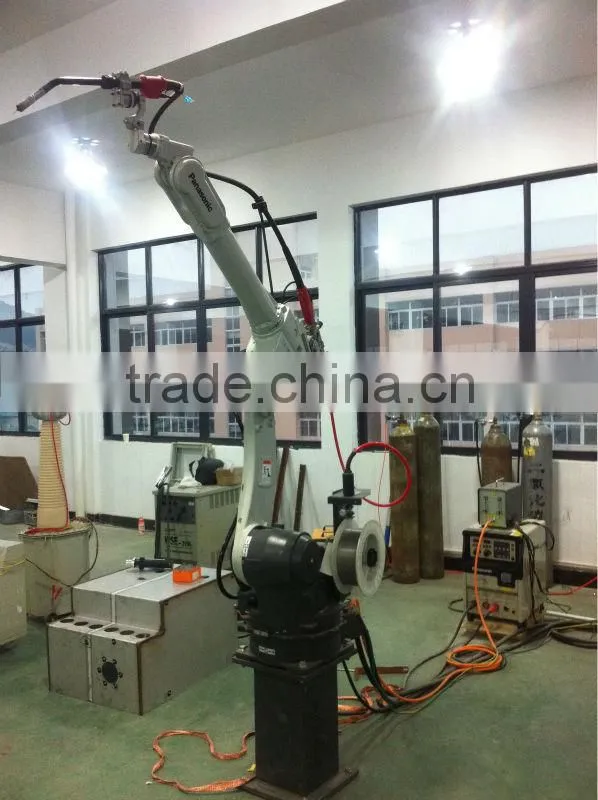

Equipments in our factory:
1. Do you have other types of indoor vacuum circuit breaker?
Yes, we can offer 12kv,24kv,36kv,40.5kv indoor vacuum circuit breaker both lateral type and frontal type, fixed type and withdrawable type, with embedded pole or assembly pole.
You can contact us for more details.
2.What is the payment term?
T/T, wire transfer, west union
3. How about the warranty period?
Usually we offer a 12-month warranty period.
4.Do you have type test?
Yes, we have type test in China and we have also passed type test in Europe.
5.How can I order?
Please contact us and tell us your detailed request. Then we will send you our plan
