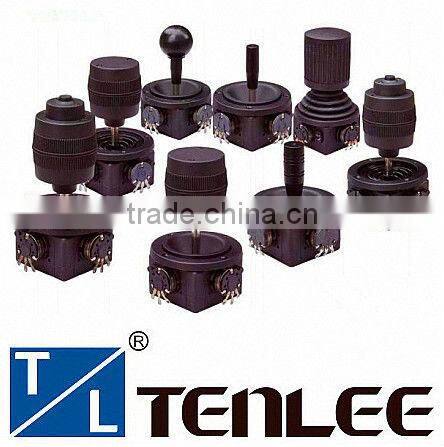

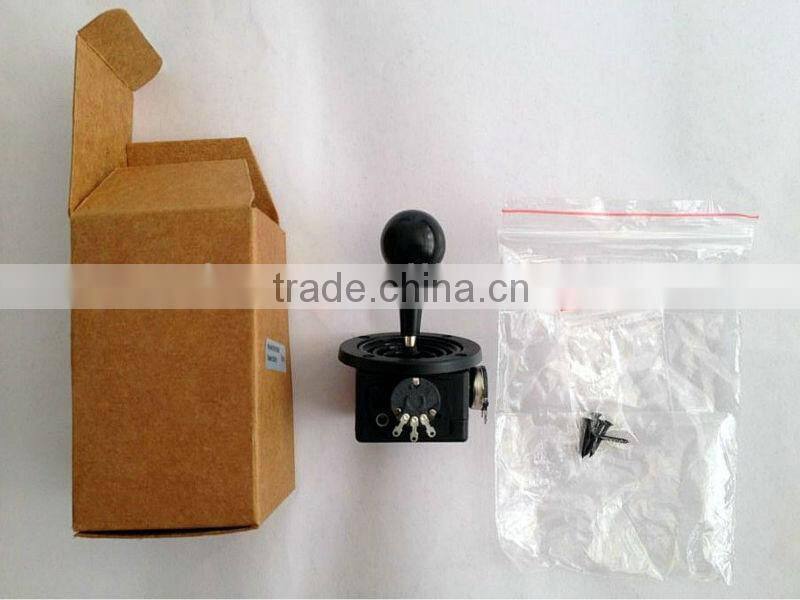

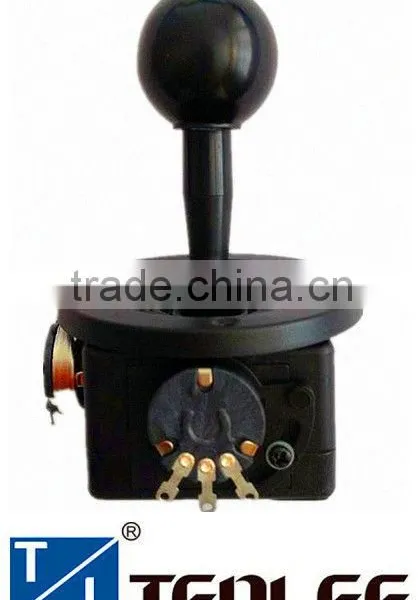

3 Axles Auto Spring Return Camera Control Potentiometer Joystick

Description

3-axis auto spring return potentiometer joystick

Main performance

TL300A/B

TL301

TL400A

TL400B

Switch push button on the top of the handle

without

without

with

with

Resistance

5KΩ,10 KΩ

5KΩ,10 KΩ

5KΩ,10 KΩ

5KΩ,10 KΩ

Resistance tolerance

±5%

±5%

±5%

±5%

Independent linearity tolerance

±1%

±1%

±1%

±1%

Resolution

Infinity

Infinity

Infinity

Infinity

Temperature coefficient

±400ppm/°C

Output smooth

                   MAX 0.5%

X and Y axis Rotational Angle

                    ±25°-- 30°

Z axis rotational angle

                    ±45°

TL300 Z axis potentiometer

TL400 Z axis potentiometer and the wire of knob

AWG28 Teflon insulation silver-plating colored wire.

     Standard line 100mm or according to customer request

Insulation resistance

                 50MΩ@500VDC,60sec

Operation torque

               X and Y axis 440gf, Z axis 880gf

Reposition error rate

±1%

±1%

±1%

±1%

Rotational life expectancy

                   500,000 times

Operating temperature

                    -10°C~80°C

Instruction for modal choosing

M1: the potentiometer is 5K Ohm, MAX from 1.8KΩ±5% to 3.2KΩ±5%,220°

M2: the potentiometer is 5K ohm, MAX from 0 to 5K ohm, 50°

M3: the potentiometer is 10K ohm, MAX from 6.5KΩ±5% to 3.5 KΩ±5%,220°

M4: the potentiometer is 10K ohm, MAX from 0 KΩ±5% to 10 KΩ±5%,50°
