inline impeller blower for industrial ventilation systems
- 200 Set / Sets per Month
- Chongqing or Shanghai
- T/T Credit Card
You May Like
Product Details
| Electric Current Type | AC | Blade Material | Other, carbon steel | |
| Mounting | Duct Fan | Place of Origin | Chongqing, China | |
| Brand Name | ERAN | Model Number | HTF-II | |
| Power | 3.1/0.8-17/8.5 | Voltage | 100-900Pa | |
| Air Volume | 3000-13000m³/h | After-sales Service Provided | No overseas service provided |
Product Description

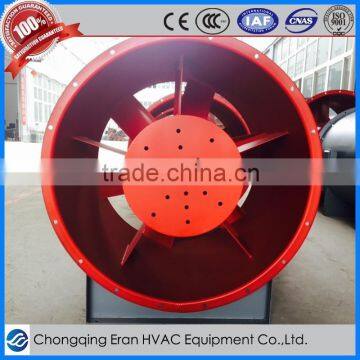

inline impeller blower for industrial ventilation systems
Product Profile: Inline impeller blower for industrial ventilation systems, assembled with high-temperature resistance motor and motor cooling system. Compared with HTFC centrifugal blower, it is affordable and suitable for the places where do not demand low noise and special outlet angle.
Products advantages:
Our company was founded in 2005, the annual output value is nearly one hundred million RMB now. Using pipelined professional mold production methods, so we can meet the production needs of large orders and guarantee our products are reliable quality. Complete accessories production and distribution make it easier to install.
Good quality control processes, all products have been inspected strictly. The balance precision of impellers is less than G5.6. Wind speed, electric current, voltage and noise control all achieve CNS.
Structure of inline impeller blower for industrial ventilation systems
- Wheel hubs and blades are molded by hydraulic tensioning
- Full welding connection
- Flanges of the cylinder are made of spinning flanging process.
Features of inline impeller blower for industrial ventilation systems
- High quality carbon steel, Cost-effective
- Customized paint color
- 100 degrees(Can run 20 hours continuously), 300 degrees (Can run 60 minutes continuously)
- Dual frequency motor
Application:
Inline impeller blower for industrial ventilation system widely used in high-rise building, industrial and mining enterprises, underground garage and warehousing workplace ventilation.
Standard: impeller, chassis (cylinder, guide vanes, the inner cylinder, motor bracket); motor; chassis; cooling duct.
Optional accessories: damping device; control box; grille; mating flange;muffler
Appearance and installationdimension
Performance Table
Device Number | Rotating Speed(r/min) | Air Volume(m³/h) | Total Pressure(Pa) | Motor Model | Power(kw) | Weight(kg) |
8 | 1450 | 31421 | 600 | YDT160M-4/6 | 8/2.8 | 230 |
30364 | 635 | |||||
29172 | 661 | |||||
28598 | 692 | |||||
26012 | 723 | |||||
960 | 20800 | 263 | ||||
20103 | 278 | |||||
19314 | 290 | |||||
18934 | 303 | |||||
17222 | 317 | |||||
10 | 1450 | 45679 | 630 | YDT160L-4/6 | 12/4 | 305 |
42960 | 665 | |||||
40000 | 690 | |||||
38200 | 736 | |||||
35000 | 770 | |||||
960 | 30255 | 276 | ||||
28442 | 291 | |||||
26483 | 302 | |||||
25291 | 322 | |||||
24019 | 338 |
The above table is just part of the performance of our product. We can provide customized product, so please make your performance requirements.
Detailed Pictures
Our company:
Eran was established in 2005, whose plant covering an area of over 10,000 square meters. We are a professional enterprise and specialized in ventilation system products design, manufacture, sale and installation.
There are 3 set of advanced production lines with numerical control, advanced shearing, bending and stamping equipment, and precision plasma cutting & vent processing machine. By using of the advanced BIM technology and assembly line operation, Eran Equipment’s technological level and production capacity has arrived at the leading position of this industry. The company has passed ISO9001 Quality Management System, ISO14001 Environmental Management System and GB/T28001 Occupation Health Safety Management System.
Welcome to contact me for enquiry and latest information.
