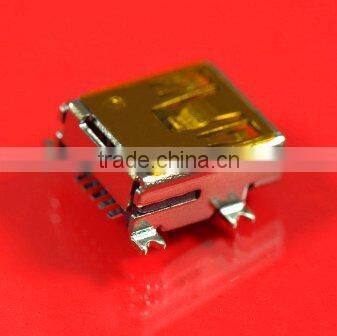

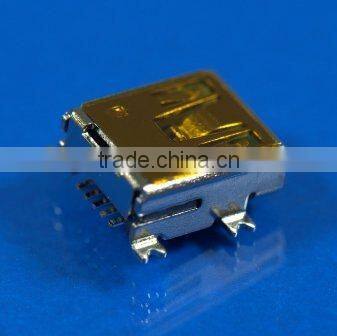

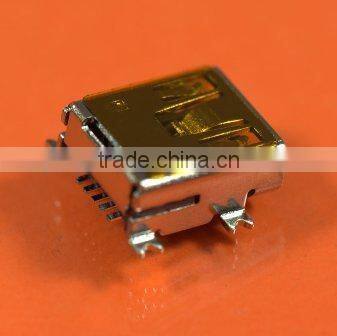

Mini USB Connector 5 Pin Female Connector
Mini USB Connector 5 Pin Female Connector

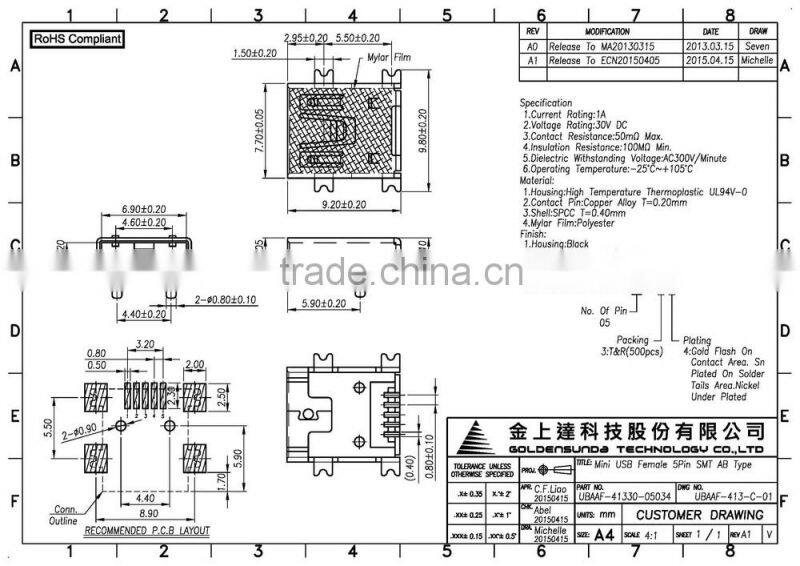

| Specification | 1. Current Rating : 1A |
| 2. Voltage Rating : 30V DC | |
| 3. Contact Resistance : 50mΩ Max. | |
| 4. Insulation Resistance : 100MΩ Min. | |
| 5. Dielectric Withstanding Voltage : AC 300V/Minute | |
6. Operating Temperature : -25°C ~ +105°C | |
| Material | 1. Housing : High Temperature Thermoplastic UL94V-0 |
| 2. Contact Pin : Copper Alloy T=0.20mm | |
| 3. Shell : SPCC T=0.40mm | |
| 4. Mylar Film : Polyester | |
| 5. SCREW : SPCC | |
| Finish | 1. Housing : Black |
| 2. Contact Pin : Gold Flash On Contact Area. Sn Plated On Solder Tails Area. Nickel Under Plated | |
| 3. Shell : Nickel Plated | |
| 4. Mylar Film : Yellow |
Automotive / GPS / Consumer / DVD Players / Notebook PC / Smart Phone and Mobile Devices / Solid State Lighting / Track lighting / Linear lights / PC Industry / Communications Industry / Mobile Industry / Electronic Components
* This product is applicable for a variety of purposes, the above mentioned only represents some of the more common uses.
Goldensunda was founded in 1999, we are professional connector manufacturer for electronic components, such as Wire to Board Connectors, Wafer, Housing, Terminal, Board In, Board to Board Connectors, Pin Header, Female Header, Box Header, FPC / FFC Connectors, Wire to Wire Connectors, Input & Output (I/O) Connectors, PC Board Connectors, Wire Harness, Round Cable Assembly, FFC Cable, Flat Cable...etc. We manufacture all our products in our ISO9001:2008-certified factory in Taiwan. Goldensunda offers comprehensive connector solutions for a wide range of electronic. Quality, Efficiency, Experience, Innovation, customized OEM / ODM, Professional, Technology & Service are our competitive advantages.
Furthermore, for environmental friendly issue, we are in manufacturing RoHS compliant and low/free Halogen connectors. We strive to provide a win-win situation and look forward to cooperating with our valuable customers like a partner for long term. Welcome for your inquiry, and please contact us today!
OEM / ODM requests welcome!
Contact us today for more details.
