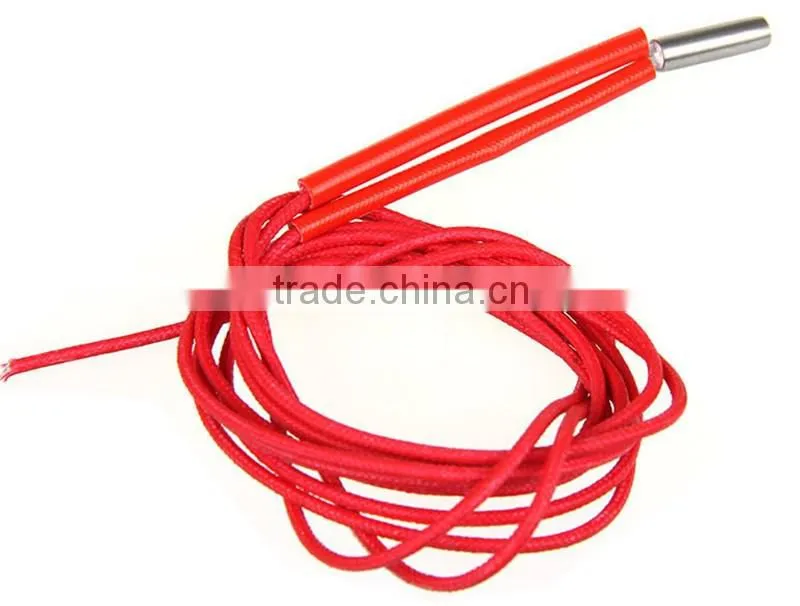

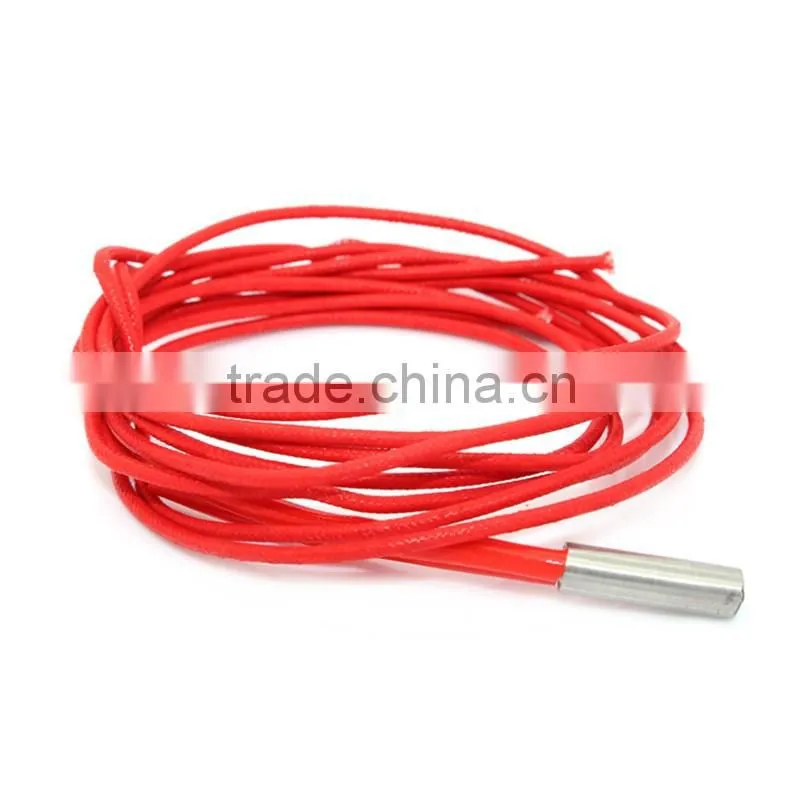

2016 3D printer accessories Reprap prusa i3 DIY Lead wire length 1 m 3d printers single-head electric heat pipe for HeatingTube

2016 3D printer accessories M505 Lead wire length 1 m 3d printers single-head electric heat pipe for 1pcs HeatingTube for Reprap prusa i3 DIY kit 3d printer machine

Feature:

3 d printers single-head electric heat pipe

Specification: 12 v40w

Size: 6 * 20 mm Φ

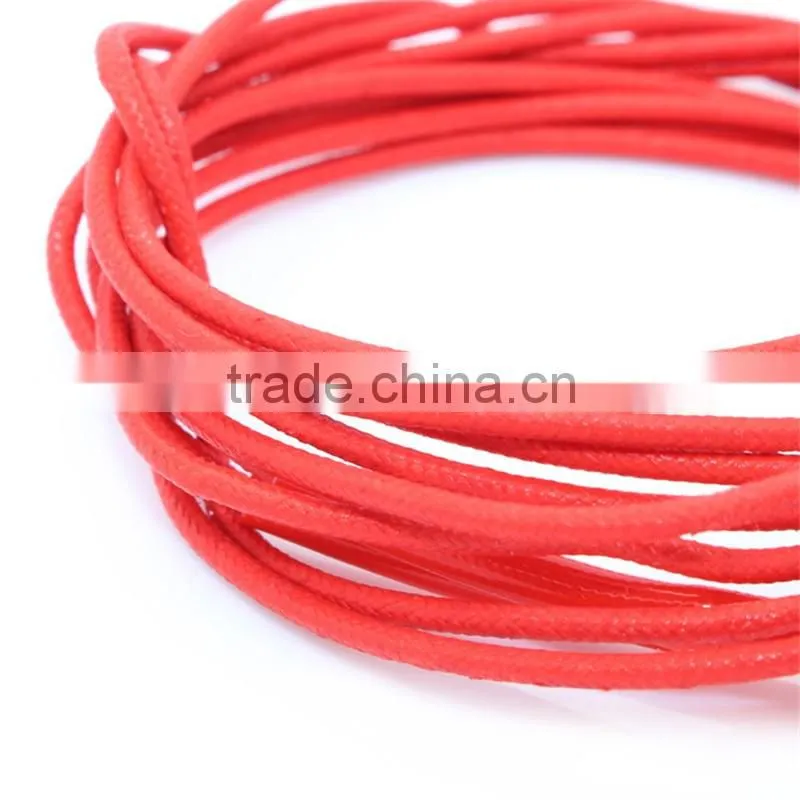

Lead wire length 1 m

Material: stainless steel

Heating pipe Features: fast heating, temperature ≤ 450

Instructions for use:

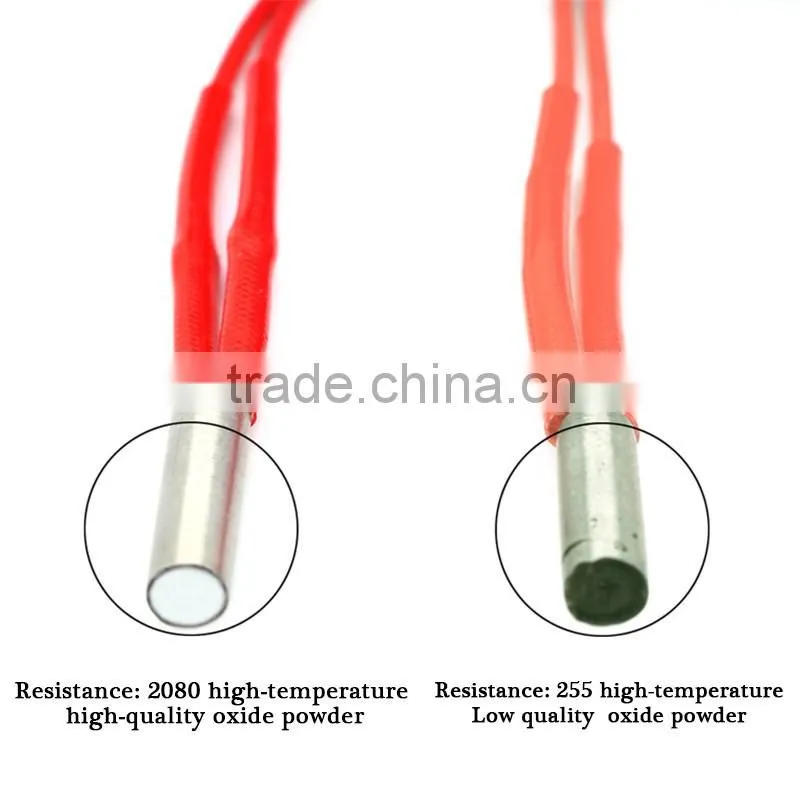

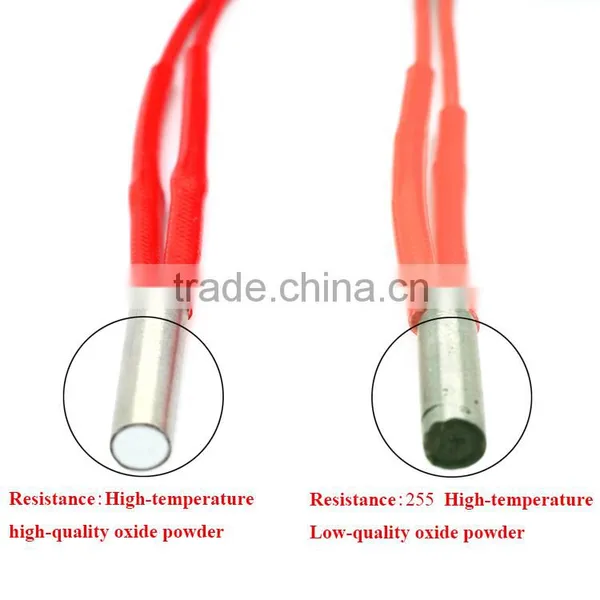

single-ended portion of the heat pipe heat must be kept efficient drying techniques make use of imported nickel-chromium wire internal use 2080 outside of the pipe to ensure the best real materials in order to achieve maximum service life.

Single-ended electric heating pipe joints should be placed outside of the insulation layer and the heating chamber, shall not exceed the rated working voltage is worth 10% of the shell should be effectively grounded.

heating elements working environment temperature less than 95% non-explosive, corrosive gases.

heating elements should be stored in a dry place, not damp.





Item Contain:

1pcs Heating Tube
