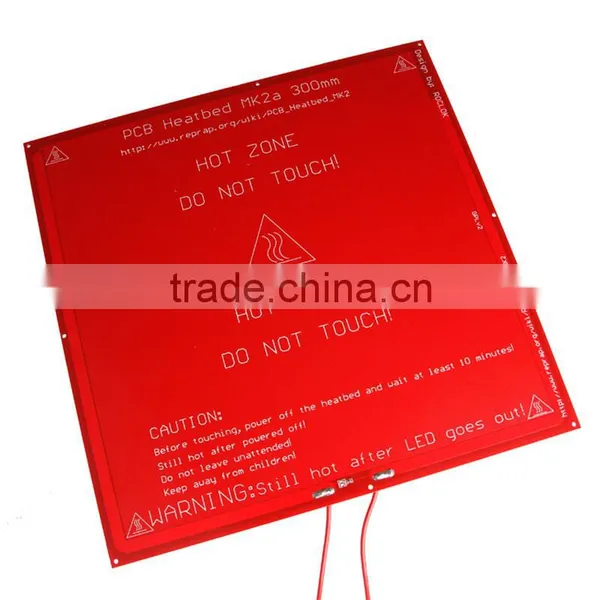

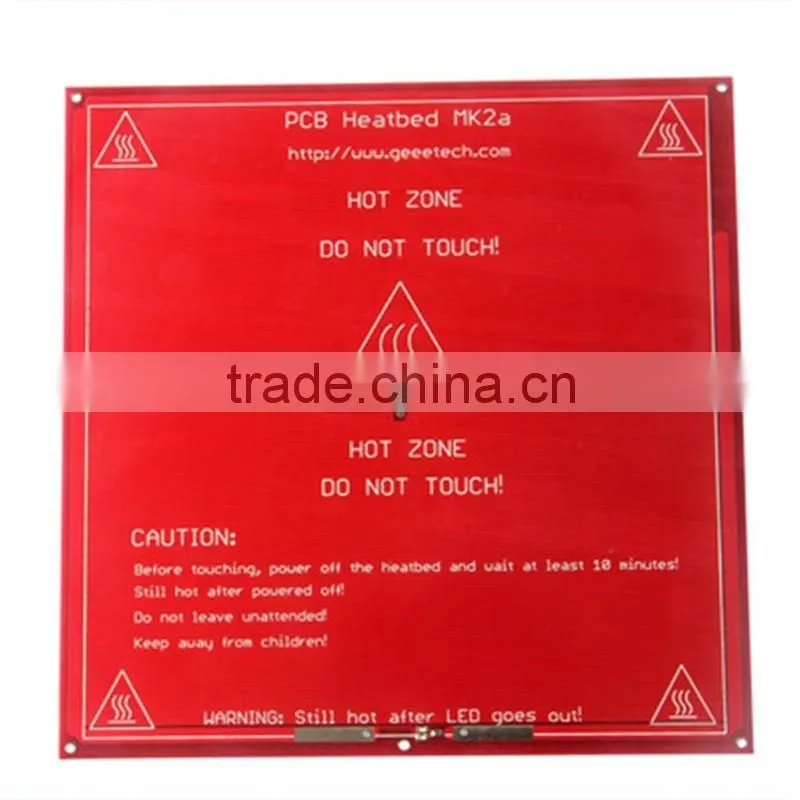

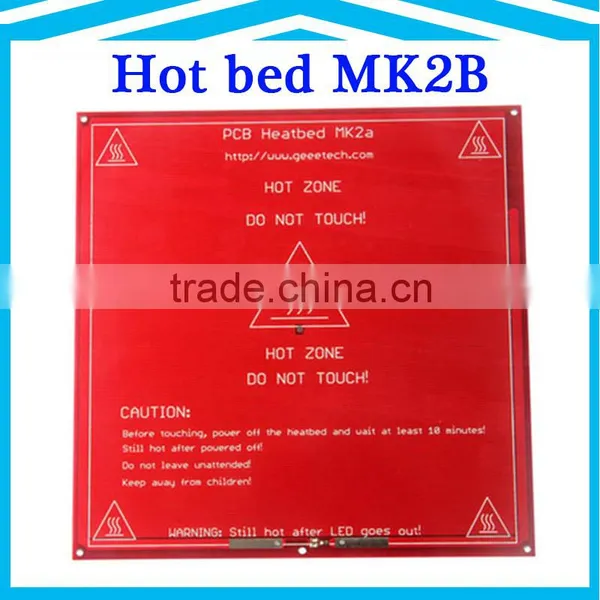

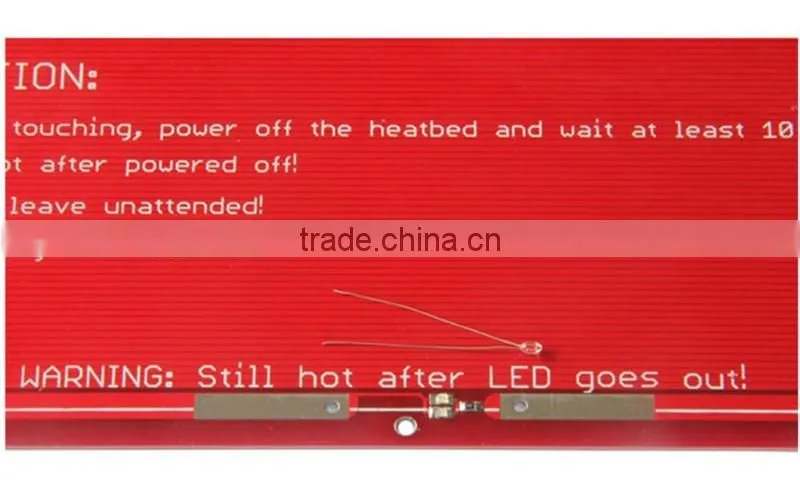

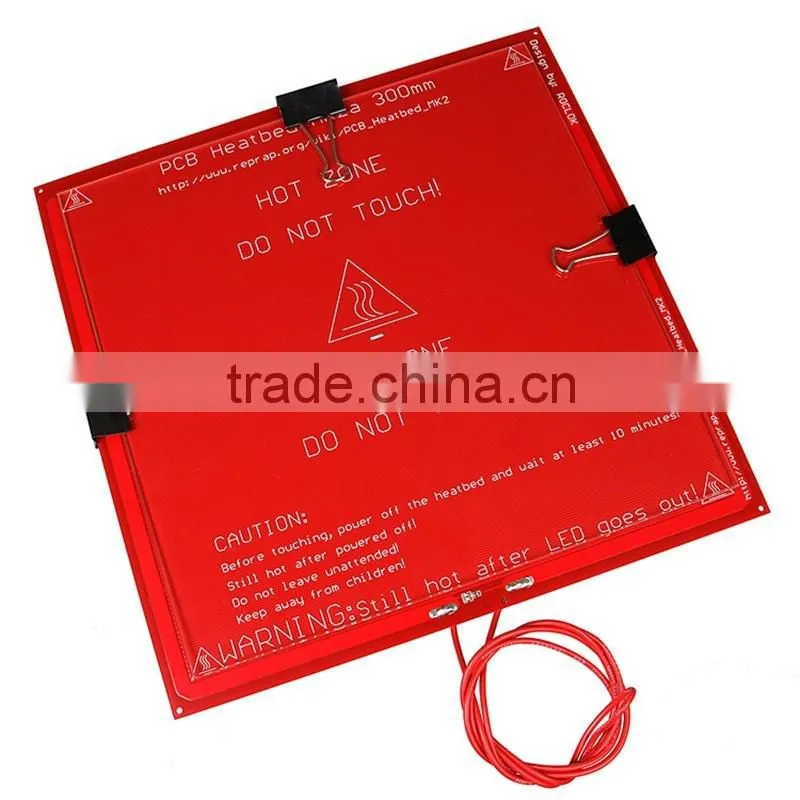

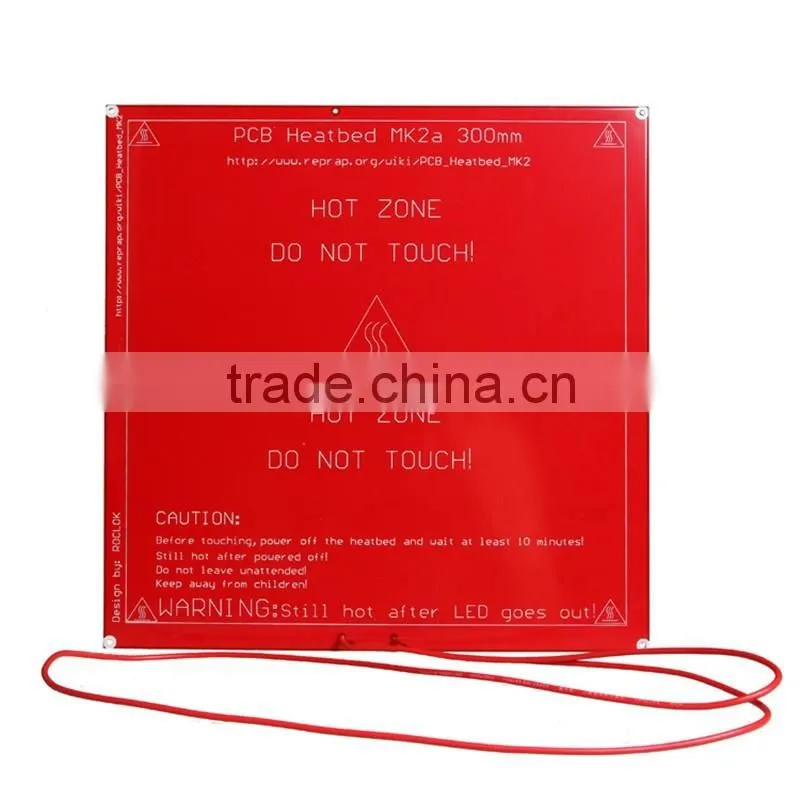

3D printer PCB hot bed Mk2b 12/24 dual power 214x214mm Mk2a Dimensions 214MM * 214MM 209MM hole spacing
Specifications:
Color: Red
Size: 214mm x 214mm
Etching: 35um copper Gold Solder
Laminate: FR4 1.6mm
Product Description
MK2B than MK2A, multi-functional support voltage of 24V, 24V on MK2B is currently the official version of the machine the latest products. The whole system at 24V, can be used for larger stepper motors, while the line loss is smaller. But also the future development direction of a 3D printer. Relative latest version Mk2a, a major upgrade of the 12V 24V dual power.
12V connection: a cable connected 1, 2 and 3 in addition a line simultaneous access.
24V connection: a cable connected 2, the other a line connected 3 (1 vacant do not take).
The new circuit, both connected to 12V, or 24V, the power supply are stable.
product manual
12V 24 power supply are compatible.
double-sided, the other side is no wiring, heating uniformity, print smooth.
wiring, regardless of positive and negative, random wiring
