3x1 Hdmi Switch 301 Hdmi V1.3a With Full hd 1080p and 3d / Remote Control -black

3x1 hdmi switch 301 hdmi v1.3a with full hd 1080p and 3d / remote control -black

Model Number: HSW0301BN

3x1  HDMI Switch

Sample available

The 3X1 HDMI Mini switch (Model No.HSW0301BN) is a high performance HDMI switcher with remote...

Simply pressing a button on the remote you can select your desired HDMI source to be routed to a high definition display. Switcher is tested to guarantee resolution up to 1080p without signal degradation. HDMI repeater technology is built-in for long output cables. If your cable over 15ft distance then with regular switch you would get signal degradation; however with ours signal it can will be amplified to go over 60ft.

Smart Function

• Sense the input source ports automatically ,and bypass the port without signal.
• Switch to the last plugged input source port automatically when hot pluging.
• Remember the active input source port while pressing "RESET" on the remote control,and select this input source port automatically when restart.

Features

• HDMI Stylish Switches with remote control.
• Supports both AC-coupled and DC-coupled inputs
• Supports for 8-bit, 10-bit, and 12-bit deep color per  channel
• Transfer bitrates up to 2.25 Gpbs per channel.
• Optimized Equalization for Enhanced Signal Integrity
• IR controlled  Switching or manual switching.
• Sense the input source ports automatically ,and bypass the port without  signal .
• CEC passby
• HDCP compliant

Specification

• Support 3DTV
• Support resolution: 1080P/1080i/720P/576P/480P/576i/480i
• Support deep color up to 36bit
• Support transfer bitrates up to 2.25Gpbs/per channel
• Support tmds clock frequency range:25~225Mhz
• Support audio format:LPCM,Dolby-AC3,DTS7.1,DSD/Dolby TrueHD/ DTS-HD Master Audio.
• Input Tmds Signal:0.5-1.0 volts p-p
• Input DDC Signal:5 volts p-p (TTL)
• Power supply:DC5V
• HDMI output cable distance:≤15m(if need longer, amplifier is needed )
• Operating temperature range: -5 to +55℃(-41 to +95℉)
• Operating humidity range:5 to 90 % RH (no condensation)
• Product size:117mm L x 64mm W x 25mm H

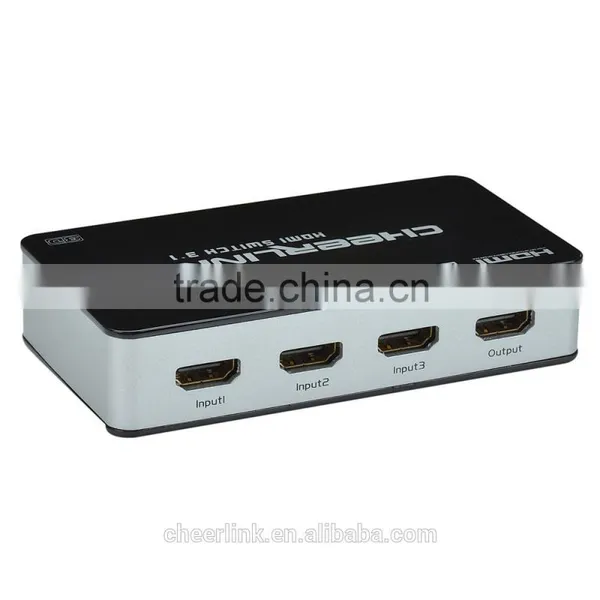

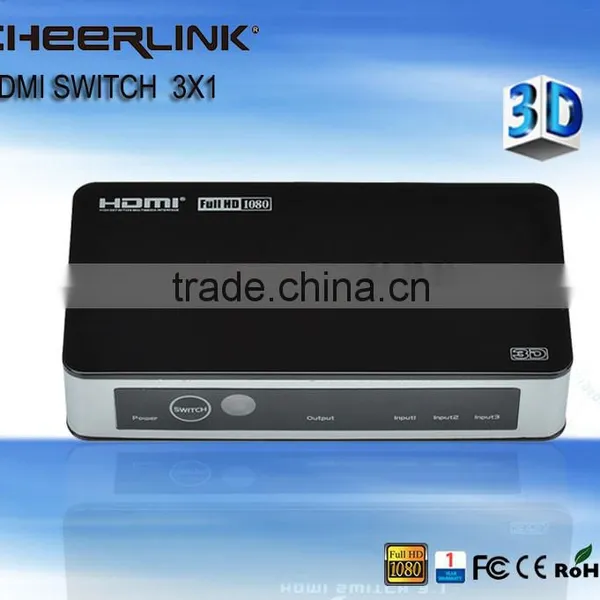

Product photos

Package inclues

• 1x HSW0301BN
• 1x IR Remote control
• 1x 5V Universal Power Supply
• 1x User's Manual
