5x1 Hdmi Switch 501 Hdmi V1.3a With Full hd 1080p and 3d / Remote Control -black
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
CHEERLINK
Model Number:
HSW0301BN
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3D Support Full HD 1080P HDMI Switch 3*1 / 3 Port Switch/IR Remote ControlNegotiableMOQ: 60 Pieces -
Professional Manufacturer CHEERLINK 3 Way Hdmi Mini SwitcherNegotiableMOQ: 100 Pieces
-
2014 Hdmi Video Matrix Switch With Hdcp Cec SupportedNegotiableMOQ: 100 Pieces
-
Stylish Hdmi Switch 5 x 1 For TV Blu-Ray HD-DVD Player PCNegotiableMOQ: 100 Pieces
-
2015 New Product Hdmi Switch Support 4kNegotiableMOQ: 100 Pieces
Brand Name
CHEERLINK
Model Number
HSW0301BN
Place of Origin
Guangdong, China
5x1 hdmi switch 501 hdmi v1.3a with full hd 1080p and 3d / remote control -black
Model Number: HSW0501BN
5x1 HDMI Switch
Sample available
The 5X1 HDMI Mini switch (Model No.HSW0501BN) is a high performance HDMI switcher with remote...
Simply pressing a button on the remote you can select your desired HDMI source to be routed to a high definition display. Switcher is tested to guarantee resolution up to 1080p without signal degradation. HDMI repeater technology is built-in for long output cables. If your cable over 15ft distance then with regular switch you would get signal degradation; however with ours signal it can will be amplified to go over 60ft.
Smart Function
- Sense the input source ports automatically ,and bypass the port without signal.
- Switch to the last plugged input source port automatically when hot pluging.
- Remember the active input source port while pressing "RESET" on the remote control,and select this input source port automatically when restart.
Features
- HDMI Stylish Switches with remote control.
- Supports both AC-coupled and DC-coupled inputs
- Supports for 8-bit, 10-bit, and 12-bit deep color per channel
- Transfer bitrates up to 2.25 Gpbs per channel.
- Optimized Equalization for Enhanced Signal Integrity
- IR controlled Switching or manual switching.
- Sense the input source ports automatically ,and bypass the port without signal .
- CEC passby
- HDCP compliant
Specification
- Support 3DTV
- Support resolution:1080P/1080i/720P/576P/480P/576i/480i
- Support deep color up to 36bit
- Support transfer bitrates up to 2.25Gpbs/per channel
- Support tmds clock frequency range:25~225Mhz
- Support audio format:LPCM,Dolby-AC3,DTS7.1,DSD/Dolby TrueHD/ DTS-HD Master Audio.
- Input Tmds Signal:0.5-1.0 volts p-p
- Input DDC Signal:5 volts p-p (TTL)
- Power supply:DC5V
- HDMI output cable distance:≤15m(if need longer, amplifier is needed )
- Operating temperature range: -5 to +55℃(-41 to +95℉)
- Operating humidity range:5 to 90 % RH (no condensation)
- Product size:117mm L x 64mm W x 25mm H

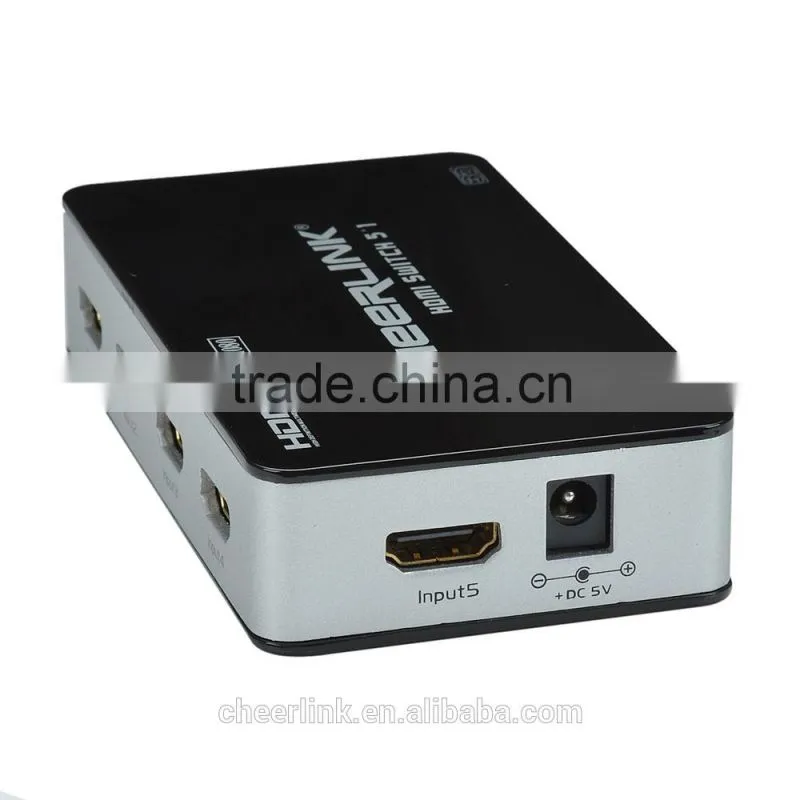

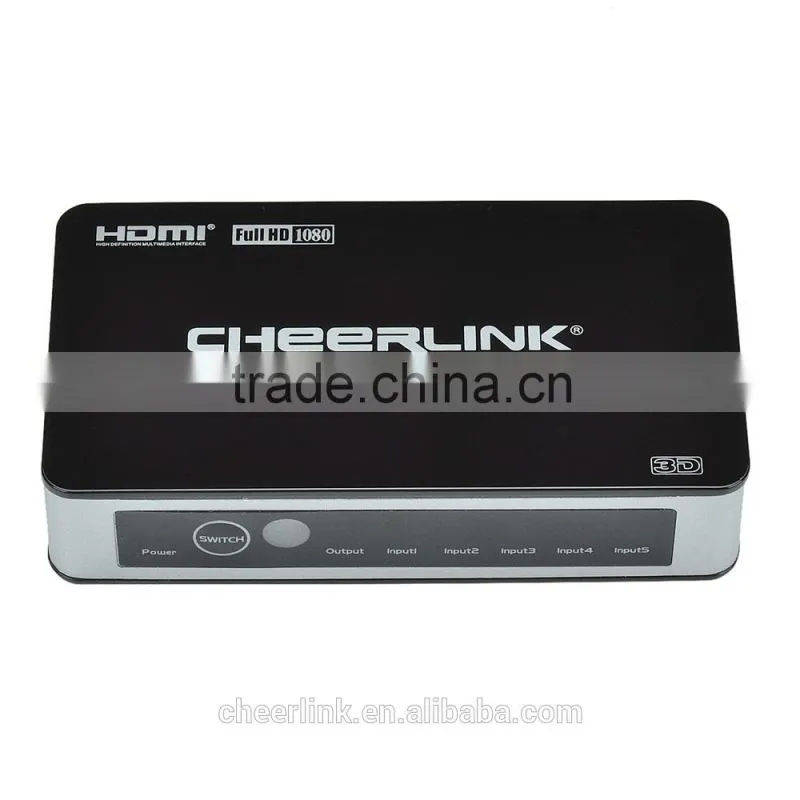

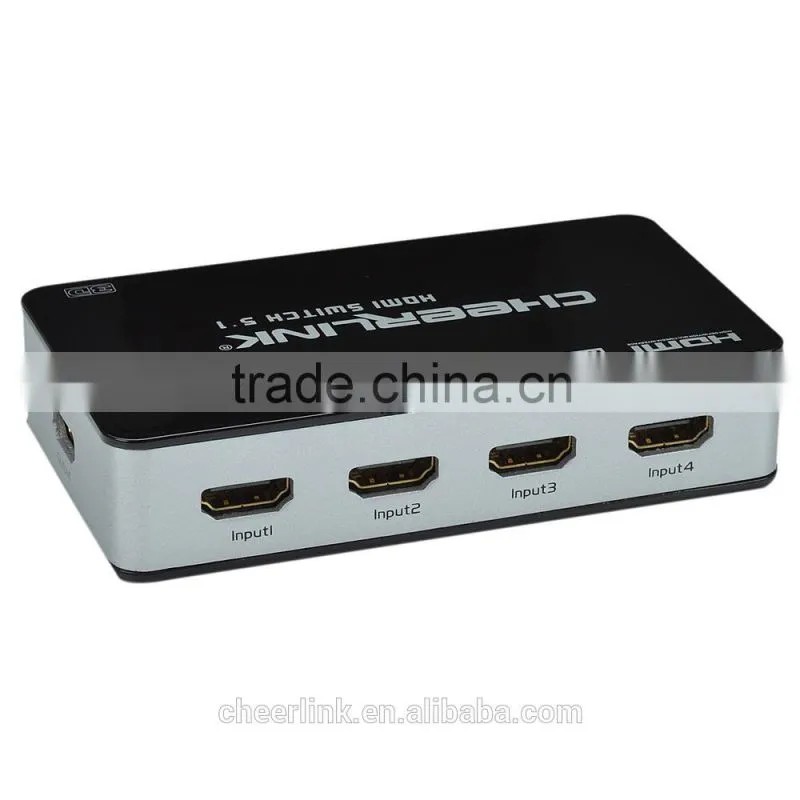

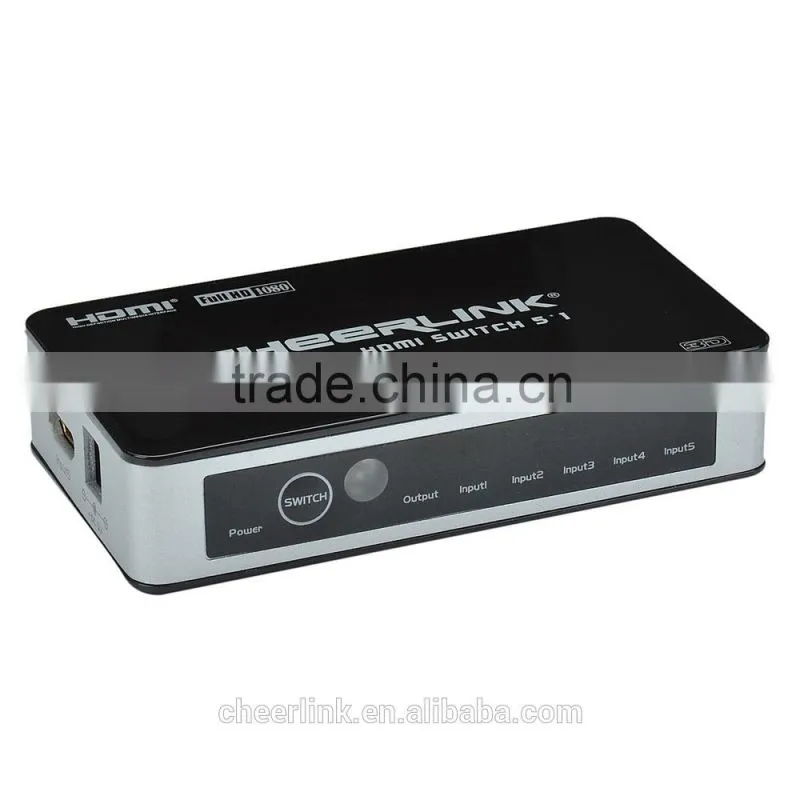

Product photos

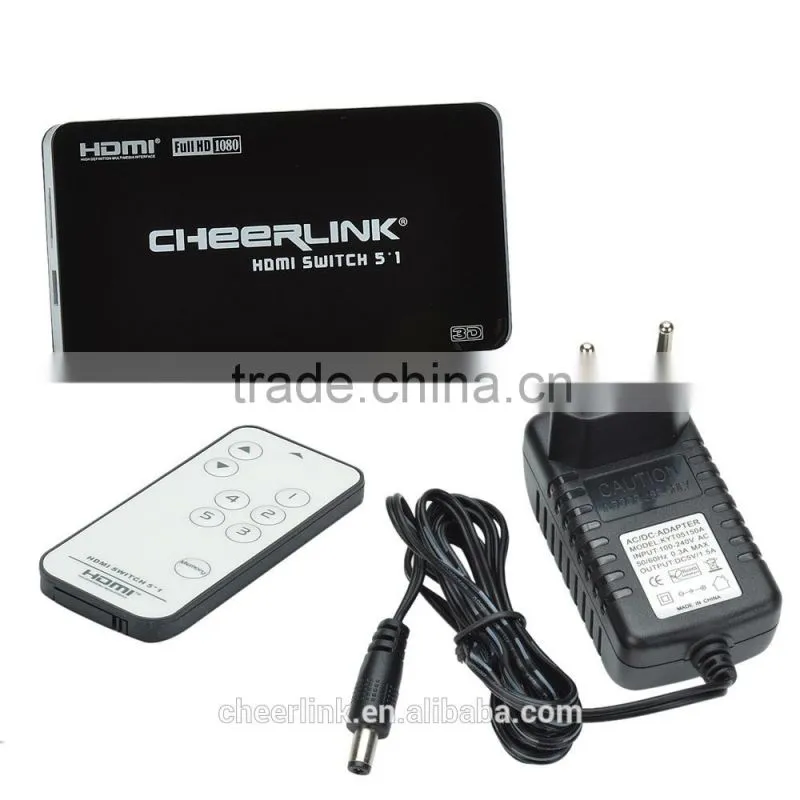

Package inclues
- 1x HSW0501BN
- 1x IR Remote control
- 1x 5V Universal Power Supply
- 1x User's Manual
