Area Velocity Flowmeters AVFM 5.0

Specifications

Area-Velocity Flow Meter
Monitor flow through open channels, partially full sewer pipes and surcharged pipes a flume or weir. Ideal for municipal
stormwater, combined effluent, raw sewage and irrigation water.

Submersible Ultrasonic Sensor

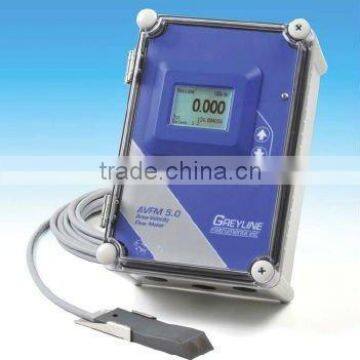

The AVFM 5.0 uses a submerged ultrasonic sensor to continuously measure both Velocity and Level in the channel. The sensor resists fouling, corrosion and abrasion. The flowmeter can be configured with the standard submerged velocity-level sensor, or with submerged velocity plus a separate non-contacting ultrasonic level sensor.
View flowrate and total flow on the large backlit LCD display and connect to external devices with three 4-20mA outputs and two control relays.

General Specifications

Channel Types: Round pipe, Rectangular, trapezoid, egg or custom shapes

Electronics Enclosure: Watertight and dust tight NEMA4X (IP 66) polycarbonate with clear, shatterproof cover

Accuracy: Level: ±0.25% of Range. Velocity: ±2% of Reading. Repeatability and Linearity: ±0.1%

Display: White, backlit matrix - displays flow rate, totalizer, relay states, operating mode and calibration menu
Programming: built-in 5-key calibrator with English, French or Spanish language selection
Power Input:100-240VAC 50-60Hz, 5.28 Watts maximum (with standard features)
Outputs: 3 Isolated 4-20mA, 1000 ohm, (Flow, Level and Velocity) or 0-5VDC by menu selection
Control Relays: 2 Relays, form 'C' dry contacts rated 5 amp SPDT; programmable for flow proportional, pulse (sampler/totalizer), flow and/or level alarm
Electrical Surge Protection: Sensor, 4-20mA outputs and AC power input
Operating Temp. (electronics): -5° to 140°F (-20° to 60°C)
Approximate Shipping Weight: 10 lbs. (4.5 kg)
