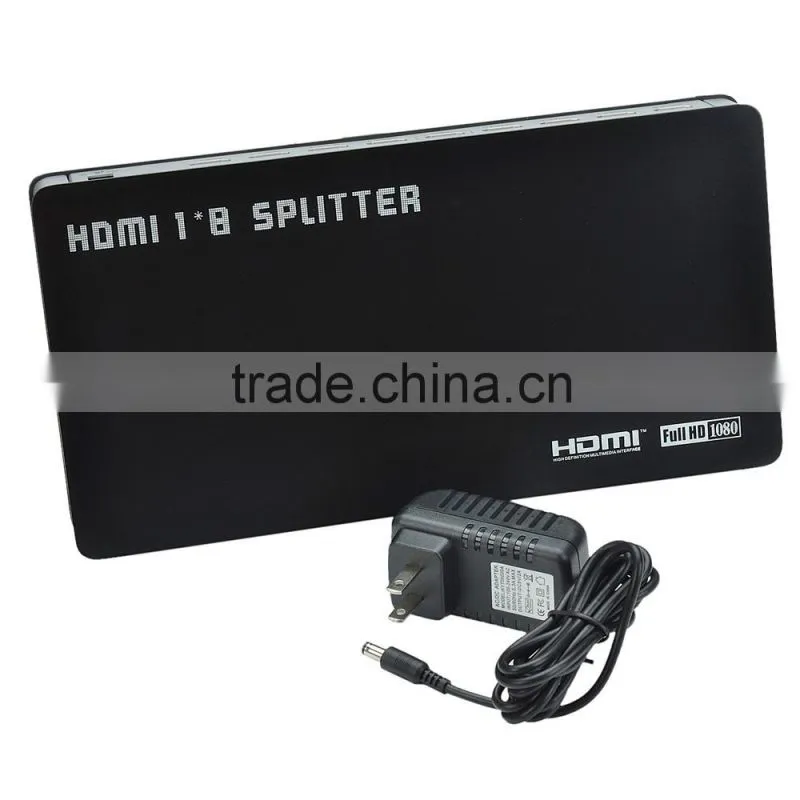

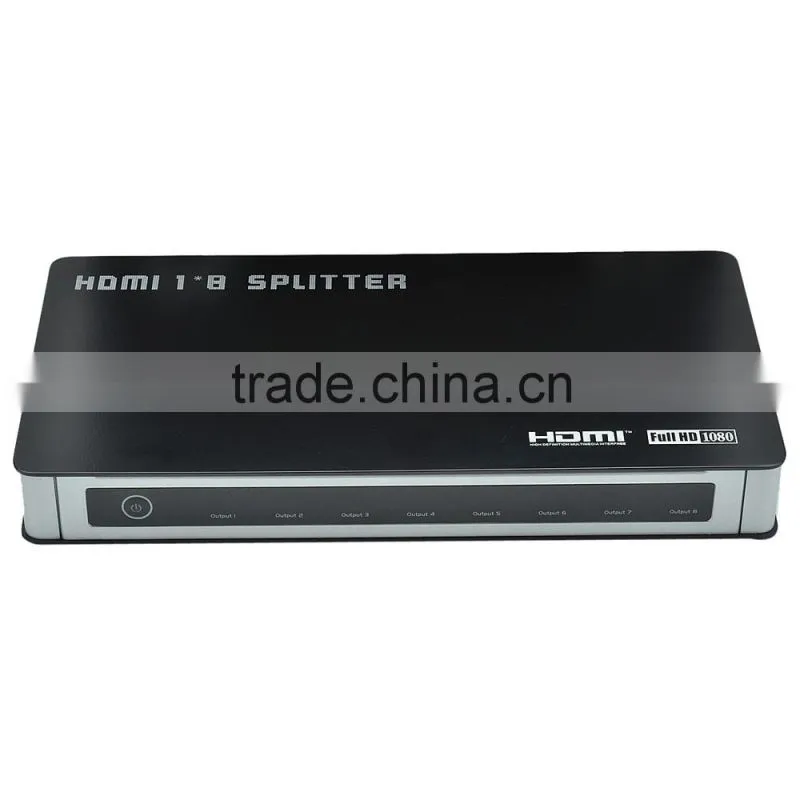

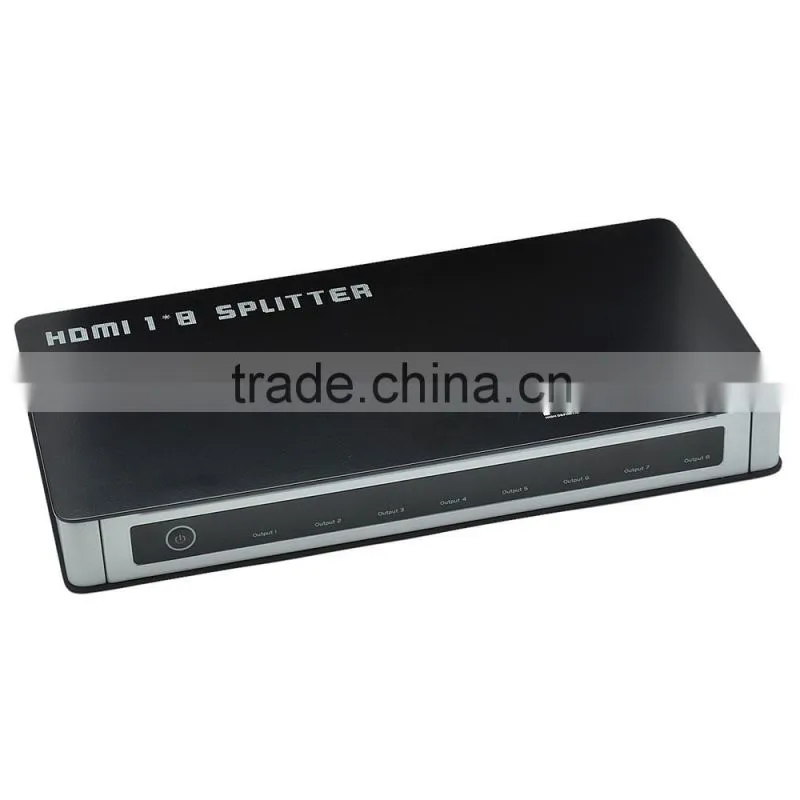

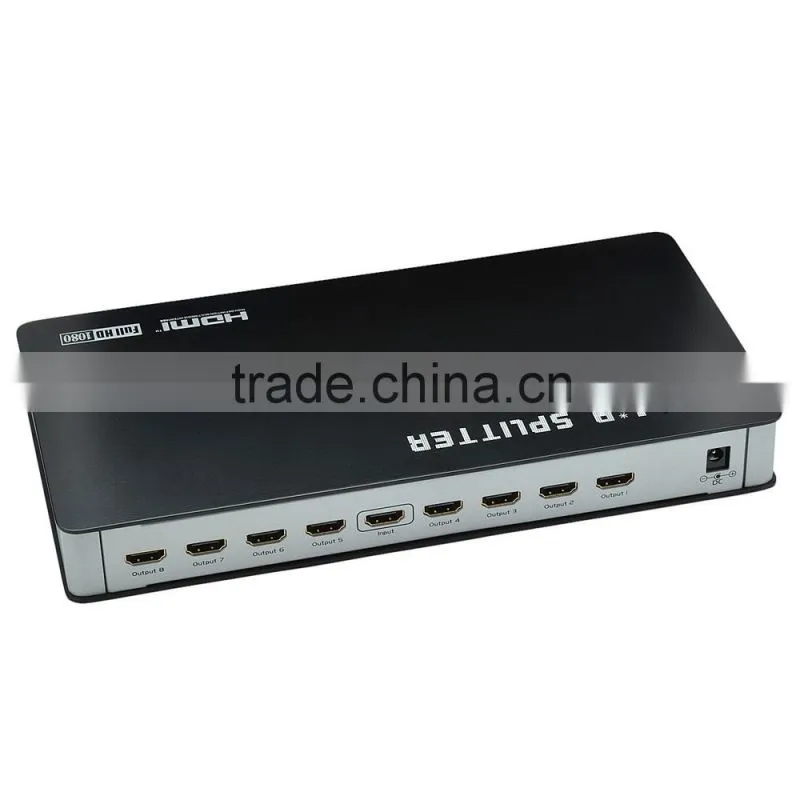

CHEERLINK 1-In 8-Out Full HD 1080P And 4K*2K HDMI V1.3 and V1.4 Amplifier Splitter 1*8 w/ - Black
US$ 65.59 - 69.99
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
CHEERLINK
Model Number:
HSP0108AN
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CHEERLINK 3D Supported 2160P 1*4 HDMI Splitter / 1-in 4-out HDMI SwitcherNegotiableMOQ: 100 Pieces -
CHEELINK HDMI Mini Splitter 2 in 1 Out Full 1080P 3D - BlackNegotiableMOQ: 100 Pieces
-
HDMI Splitter 1 in 4 Out Full HD / 3D 1080P HDMI Splitter 1*4 - BlackNegotiableMOQ: 100 Pieces
-
CHEERLINK Full 4K x 2K 3D HD 1080P HDMI 1.4a Splitter 1*4 W/ Remote Control - BlackNegotiableMOQ: 100 Pieces
-
CHEERLINK 3D Supported Ultra HD 4K HDMI Splitter 1.4 Version 1X2US$ 25.99 - 34.59MOQ: 100 Pieces
Brand Name
CHEERLINK
Model Number
HSP0108AN
Place of Origin
Guangdong, China
Product Description
Model Number: HSP0108AN
1x8 HDMI Splitter
Sample available
The 1x8 CHEERLINK HDMI splitter is a unique device that allows users to connect any digital video source, such as: DVD, Satellite, Cable Box, PC, Xbox, PS3 and more with up to 2 digital HDMI displays. It splits HDMI signal between up to 8 outputs without signal loss maintaining high resolutions up to 1080p or 1920x1200.
Package Includes:
- 1x8 HDMI splitter
- 5V Universal Power Supply
- User's Manual
Features
- Simultaneously distributes one HDMI signal to eight HDMI display devices
- Support deep color up to 12bit per channel
- Support data transfer bitrates up to 2.25Gpbs per channel
- Support resolution 1080P/1080i/720P/576P/480P/576i/480i
- Support HDMI digital audio format: LPCM/Dolby-AC3/DTS7.1/DSD/Dolby true HD/DTS-HD master Audio.
- Support signal retiming, Full-HD 1080P cascade above 3 layers.
Specification
- Support 3DTV
- Support deep color up to 12bit/per channel
- Support data transfer bitrates up to 2.25Gbps/per channel
- Support resolution 1080P/1080i/720P/576P/480P/576i/480i
- Support audio format: LPCM/Dolby-AC3/DTS7.1/DSD/Dolby true HD/DTS-HD master Audio
- Support input video signal:0.5Volts P-P
- Support DDC input volts:5Volts P-P
- Tmds clock frequency range:25~225Mhz
- HDMI output cable distance:≤15m(HDMI extender needed for longer distance)
- Power supply:DC5V
- Power adaptor:input(AC100V~240/50&60HZ);output(5V)
- Operating temperature range:-5°C to +55°C
- Operating humidity range:5 to 90%RH
- Product size: 260mm L X115mm W X22mm H
Packaging & Shipping
Package Includes:
- 1x8 HDMI splitter
- 5V Universal Power Supply
- User's Manual
Color box packing Carton Size: 34*26*44CM Q'TY: 5PCS/CTN G.W.: 6.5KGS/CTN N.W.: 6.0KGS/CTN
The Lead time is 1~4 weeks according to your quantity.
