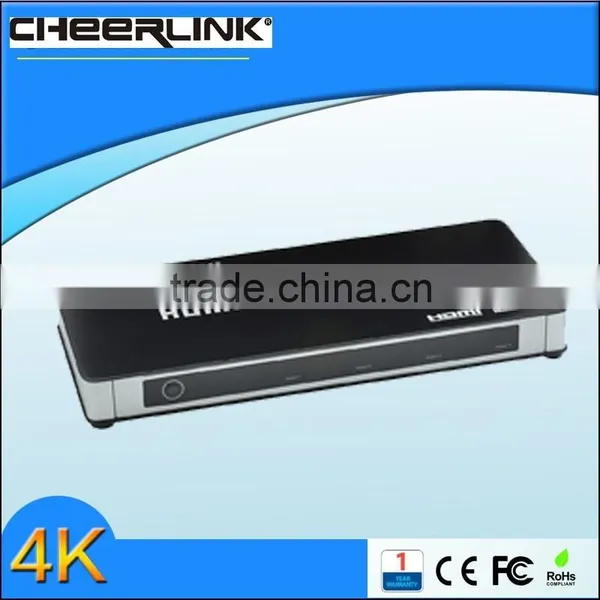

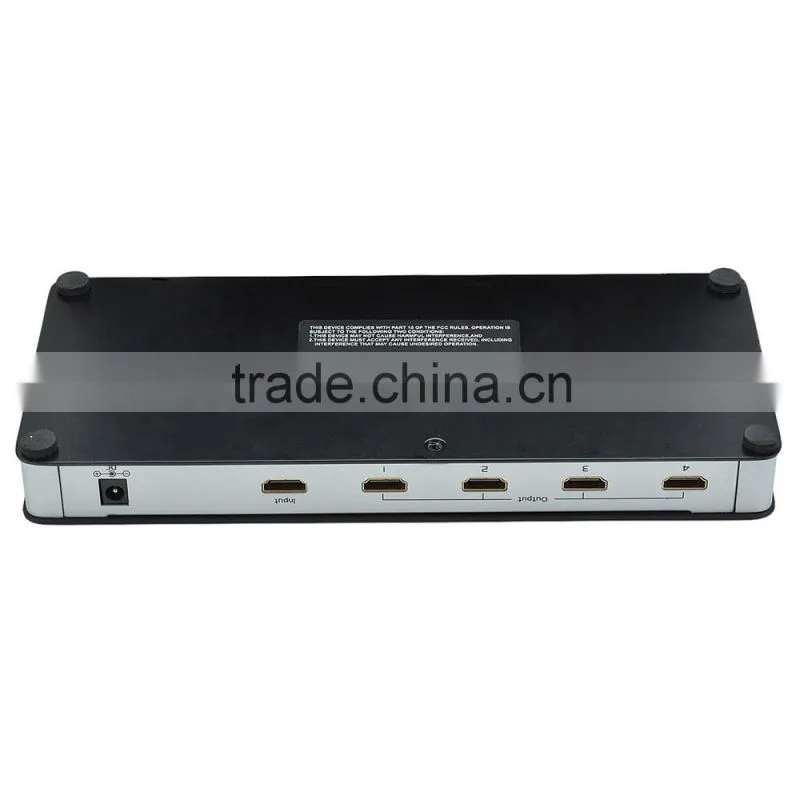

CHEERLINK 3D supported 2160P 1*4 HDMI Splitter / 1-in 4-out HDMI Switcher

• 1x4 HDMI splitter
• 5V 2AUniversal Power Supply
• User's Manual

Features

• Simultaneously distributes one HDMI signal to four HDMI display devices
• Support deep color up to 12bit per channel
• Support data transfer bitrates up to 2.25Gpbs per channel
• Support resolution 2160P/1080P/1080i/720P/576P/480P/576i/480i
• Support HDMI digital audio format: LPCM/Dolby-AC3/DTS7.1/DSD/Dolby true HD/DTS-HD master Audio.
• Support signal retiming, Ultra-HD 2160P cascade above 3 layers.

Specification

• Support 3DTV
• Support deep color up to 12bit/per channel
• Support data transfer bitrates up to 2.25Gbps/per channel
• Support resolution 2160P/1080P/1080i/720P/576P/480P/576i/480i
• Support audio format: LPCM/Dolby-AC3/DTS7.1/DSD/Dolby true HD/DTS-HD master Audio
• Support input video signal:0.5Volts P-P
• Support DDC input volts:5Volts P-P
• Tmds clock frequency range:25~225Mhz
• HDMI output cable distance:≤15m(HDMI extender needed for longer distance)
• Power supply:DC5V/2A
• Power adaptor:input(AC100V~240/50&60HZ);output(5V/2A)
• Operating temperature range:-5°C to +55°C
• Operating humidity range:5 to 90%RH
• Product size: 260mm L X115mm W X22mm H
