dust humidifier and mixer
- 20 Set / Sets per Month
- Qingdao/Shanghai
- T/T
- Internal gear 40cr 41A0076 for Liugong loader parts ,axle parts
- Liugong Wheel loader parts Liugong spare parts SP104817 Gland
- Liugong Spare parts Castle nut 03B0050 Standard parts for Liugong Wheel loader parts
- Conical roller bearing 23B0019 Standard parts for Liugong Wheel loader parts
- Liugong spare parts flasher relay 31B0005 fpr Liugong Wheel loader parts
- Air tank assembly ,pressure controller 13C0015 for Liugong Wheel loader parts
Product Details
Place of Origin: | Henan, China | Brand Name: | Zoomline | Model Number: | FJQ |
Product Description
Specifications
dust mixer:1.environment-friendly
2.can be used in many industry
3.easy operation and long working life
4.no pollution
Introduction Of the Dust Humidifier And Mixer:
The FJQ Series Dust Humidifier And Mixer manufactured by our factory is mainly applied to humidifying and mixing dust which is discharged from the underneath of the bag house to prevent dust spilling over and avoid produce secondary pollution on the environment. The function of Dust Humidification Mixer is to humidify and mix fine dust, and then centrally store and process the fine dust. The Dust Humidification Mixer is the effective method and equipment to solve the secondary dust discharging problem of the bad house. It’s more environment-friendly and greener.
Feature of the Dust Humidifier And Mixer:
1.FJQ Series twin shaft Dust Humidifier And Mixer use speed-reducer drive, running smoothly and low noise
2.Twin shaft Dust Humidifier And Mixer has reasonable structure: feeding inlet on the top and discharge outlet in the bottom
3.Junction surface is sealing well, no dust leaking and running smoothly.
4.Twin shaft Dust Humidifier And Mixer is equipped with water spray system to ensure the uniform distribution of water spraying and adjust water supply to meet the demand
5.Adopting the oil hand pump to supply lubricating grease for the four drive bearings, which is convenient to use and maintenance. It’s more effective and time-saving.
6.Easy operation and less occupied area.
7.Uniform mixing, no residual and long working life.
Major occasion of application:
1.The secondary dust humidification for the bag house in the asphalt mixing equipment
2.Recycling dust humidification for bag house in the power station
3.Dry powder mixing ( no adding water)
4.Building materials mixing ,such as putty powder
FJQ Series Dust Humidifier And Mixer Technical Parameter:
Model | Capacity(T/H) | Power(kw) | water content | water-spraying pressure(MPa) | Structure | Remark |
FJQ15 | 10-20 | 7.5 | 15-20% | 0.4-0.8 | Twin shaft |
|
FJQ25 | 20-30 | 11 | 15-20% | 0.4-0.8 | Twin shaft |
|
FJQ35 | 30-40 | 15 | 15-20% | 0.4-0.8 | Twin shaft |
|

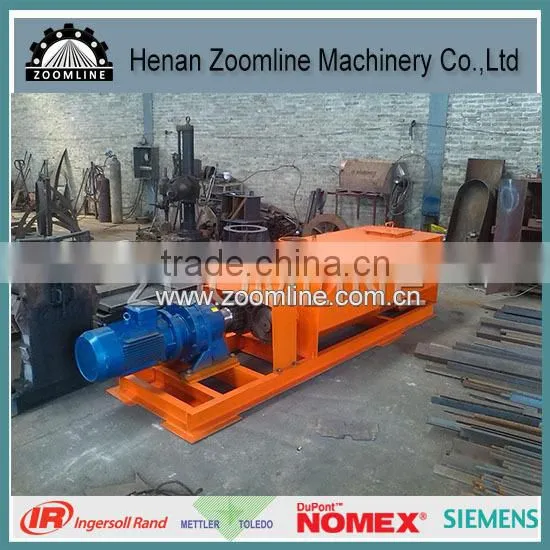

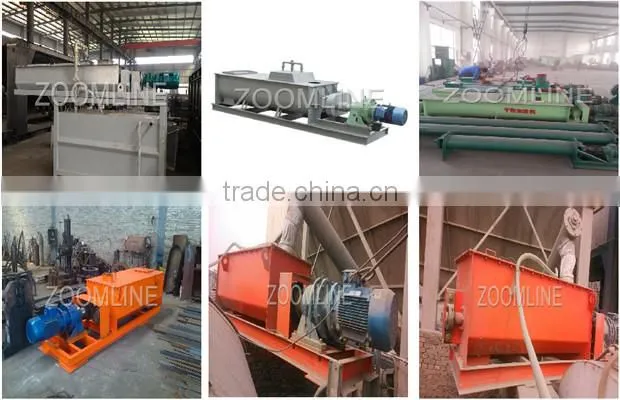

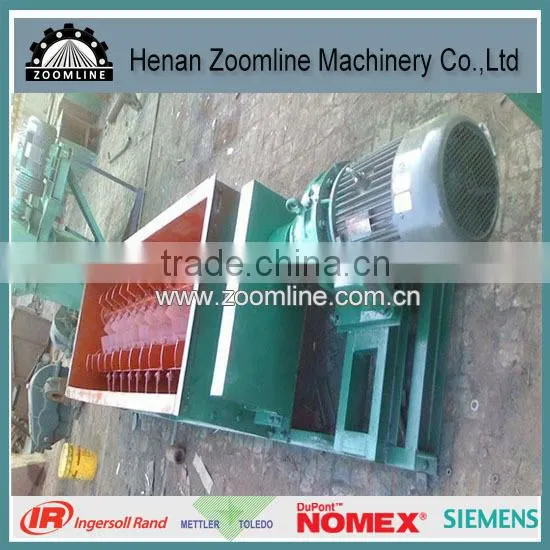

Factory Picture:
