OEM full hd 1080p 8-port hdmi splitter 1x8/ black

Model Number: HSP0108AN

1x8 HDMI Splitter

 Sample available

The 1x8 CHEERLINK HDMI splitter is a unique device that allows users to connect any digital video source, such as: DVD, Satellite, Cable Box, PC, Xbox, PS3 and more with up to 8 digital HDMI displays. It splits HDMI signal between up to 8 outputs without signal loss maintaining high resolutions up to 1080p.

Features

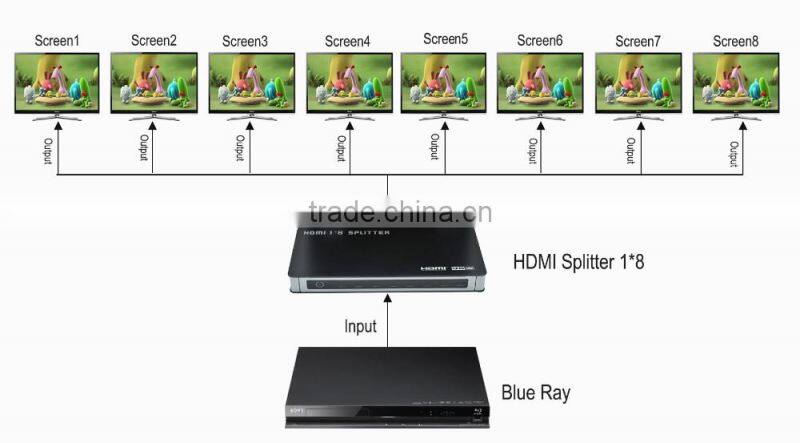

• Simultaneously distributes one HDMI signal to eight HDMI display devices
• Support deep color up to 36bit
• Support data transfer bitrates up to 2.25Gpbs per channel
• Support resolution 1080P/1080i/720P/576P/480P/576i/480i
• Support HDMI digital audio format: LPCM/Dolby-AC3/DTS7.1/DSD/Dolby true HD/DTS-HD master Audio.
• Support signal retiming, Full-HD 1080P cascade above 3 layers.

Specification

• Support 3DTV
• Support deep color up to 12bit/per channel
• Support data transfer bitrates up to 2.25Gbps/per channel
• Support resolution 1080P/1080i/720P/576P/480P/576i/480i
• Support audio format: LPCM/Dolby-AC3/DTS7.1/DSD/Dolby true HD/DTS-HD master Audio
• Support input video signal:0.5Volts P-P
• Support DDC input volts:5Volts P-P
• Tmds clock frequency range:25~225Mhz
• HDMI output cable distance:≤15m(HDMI extender needed for longer distance)
• Power supply:DC5V
• Power adaptor:input(AC100V~240/50&60HZ);output(5V)
• Operating temperature range:-5°C to +55°C
• Operating humidity range:5 to 90%RH
• Product size: 280mm L X145mm W X34mm H

Produce photos

Package Includes:

• 1x8 HDMI splitter
• 5V Universal Power Supply
• User's Manual
