CHEERLINK HDMI V1.4 Switch 5 in 1 Out Full 2160p 1080p Support 3D HDMI Switch 501 w/ Remote Control
US$ 41.99 - 45.99
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
CHEERLINK
Model Number:
HSW0501BV
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CHEERLINK HDMI Splitter 1*2 Full 4K*2K and 2160P 1080P Support 3D w/ Remote Control - BlackUS$ 25.95 - 30.25MOQ: 50 Pieces -
CHEERLINK 1080P 3D Mini HDMI Splitter 1x2US$ 15.58 - 16.5MOQ: 50 Pieces
-
CHEERLINK 1080P 2X6 60m HDMI Splitter / Switch / Extender w/ EU Plug - BlackNegotiableMOQ: 100 Pieces
-
CHEERLINK Full 3D Mini HDMI 1.4a Splitter 1 Input 2 Output- BlackNegotiableMOQ: 50 Pieces
-
CHEERLINK 1in 2 Out Full HD/3D HDMI Amplifier Splitter Multiple DisplaysNegotiableMOQ: 100 Pieces
Brand Name
CHEERLINK
Model Number
HSW0501BV
Place of Origin
Guangdong, China
Product Description
Model Number: HSW0501BV
5x1 HDMI Switch
Sample available

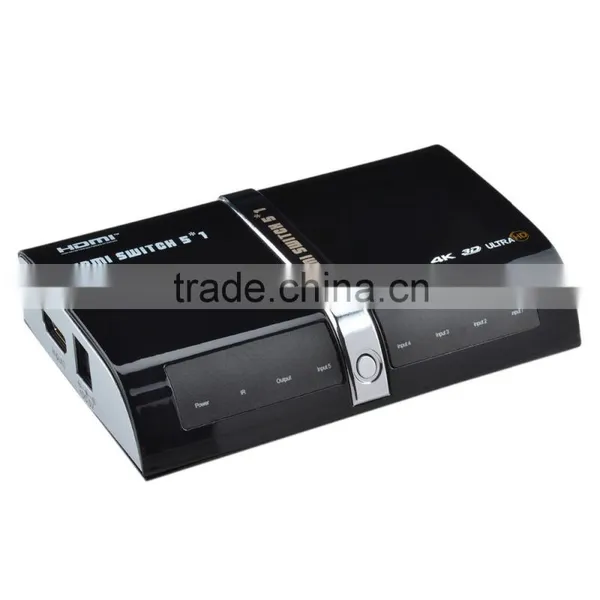

The 5X1 HDMI Mini switch (Model No.HSW0501BV) is a high performance HDMI switcher with remote...
Simply pressing a button on the remote you can select your desired HDMI source to be routed to a high definition display. Switcher is tested to guarantee resolution up to 2160p without signal degradation. HDMI repeater technology is built-in for long output cables. If your cable over 15ft distance then with regular switch you would get signal degradation; however with ours signal it can will be amplified to go over 60ft.
Smart Function
- Sense the input source ports automatically ,and bypass the port without signal.
- Switch to the last plugged input source port automatically when hot pluging.
- Remember the active input source port while pressing "RESET" on the remote control,and select this input source port automatically when restart.
Package Includes:
- 1x HSW0501BV
- 1x IR Remote control
- 1x 5V Universal Power Supply
- 1x User's Manual
Features
- HDMI Stylish Switches with remote control.
- Supports both AC-coupled and DC-coupled inputs
- Supports for 8-bit, 10-bit, and 12-bit deep color per channel
- Transfer bitrates up to 2.25 Gpbs per channel.
- Optimized Equalization for Enhanced Signal Integrity
- IR controlled Switching or manual switching.
- Sense the input source ports automatically ,and bypass the port without signal .
- CEC passby
- HDCP compliant
Specification
- Support 3DTV
- Support resolution: 2160P/1080P/1080i/720P/576P/480P/576i/480i
- Support deep color up to 36bit
- Support transfer bitrates up to 2.25Gpbs/per channel
- Support tmds clock frequency range:25~225Mhz
- Support audio format:LPCM,Dolby-AC3,DTS7.1,DSD/Dolby TrueHD/ DTS-HD Master Audio.
- Input Tmds Signal:0.5-1.0 volts p-p
- Input DDC Signal:5 volts p-p (TTL)
- Power supply:DC5V
- HDMI output cable distance:≤15m(if need longer, amplifier is needed )
- Operating temperature range: -5 to +55℃(-41 to +95℉)
- Operating humidity range:5 to 90 % RH (no condensation)
- Product size:117mm L x 64mm W x 25mm H
Packaging & Shipping
Shipping: 1~4 weeks according to your quantity.
Packaging: 1 x HDMI switcher
1 x IR remote controller (1 x CR2050 battery, included)
1 x AC power adapter (Input: AC 100~240V, 50/60Hz, 0.3A; Output: DC 5V / 1.5A, 140cm-cable)
1 x English user manual
Company Information
FAQ

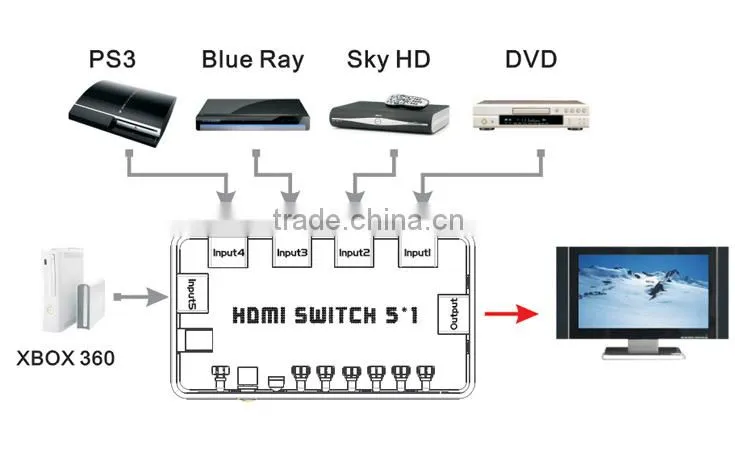

1) What's the main function of the HDMI Switch?
- The HDMI Switch allows up to three Ultra High Definition 4K x 2K or Full HD 2160p and 1080p sources to be routed to one 4K Ultra HD display, it is the best solution to simplify your connection of high definition home theater.
2) What's the HDMI Version of the HDMI Switch?
- It is HDMI V1.4, with latest 4Kx2K and Full 3D supported.
3) What's Smart auto-switch function?
- When the HDMI Switch is powered on, it senses input ports automatically and switches to the input port source automatcially in sequence 1->2->3->4->5 It bypasses input ports without signal.
- When a new device is turned on, the HDMI switcher automatcially selects that new input port. For example, if you switch on your PS3, the HDMI Switch will automatically switch to the PS3.
- Turn the currently selcted device off, the HDMI Switch automatically selects the next higher numbered input that has an active signal.
- The HDMI Switch selects the last selected source input automatically when restart.
4) Does the HDMI Switch support 3D?
- Yes, it supports Full 3D.
5) What happens if my device supports resolutions higher than 1080p?
- No problem with the HDMI Switch, it supports resolutions up the latest 4Kx2K.
