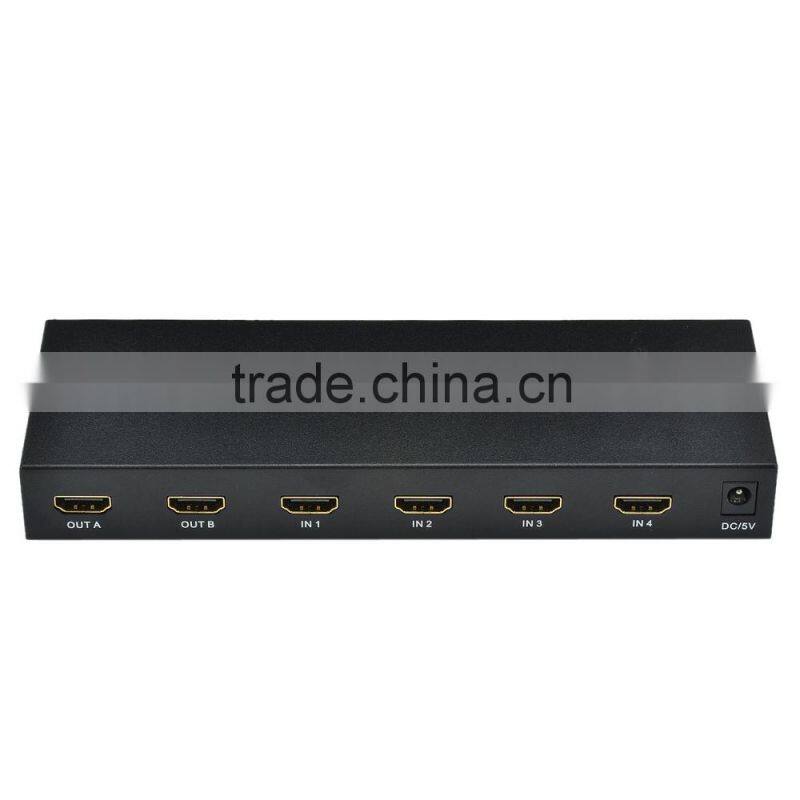

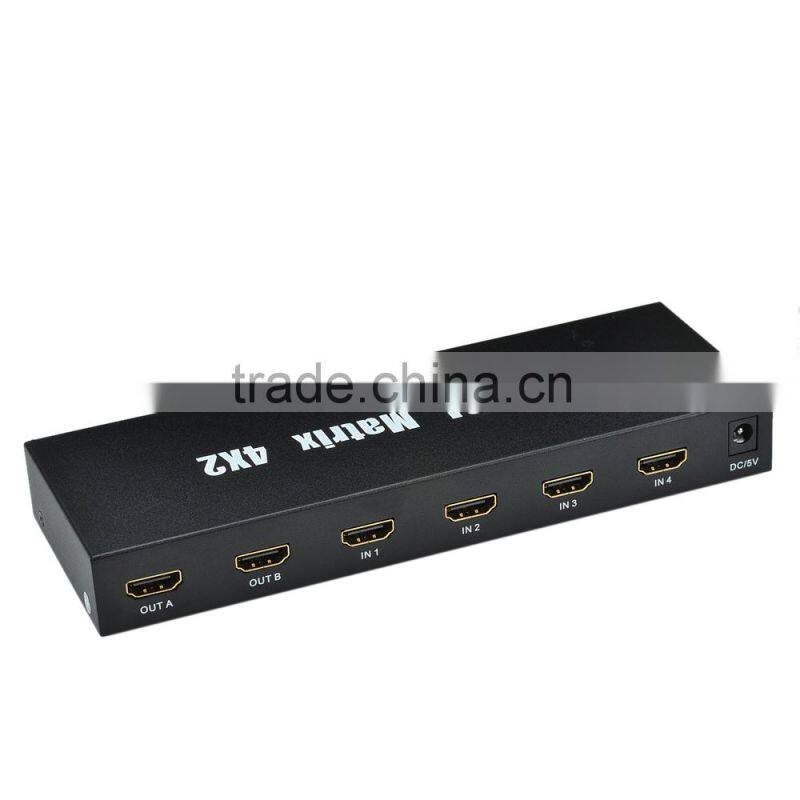

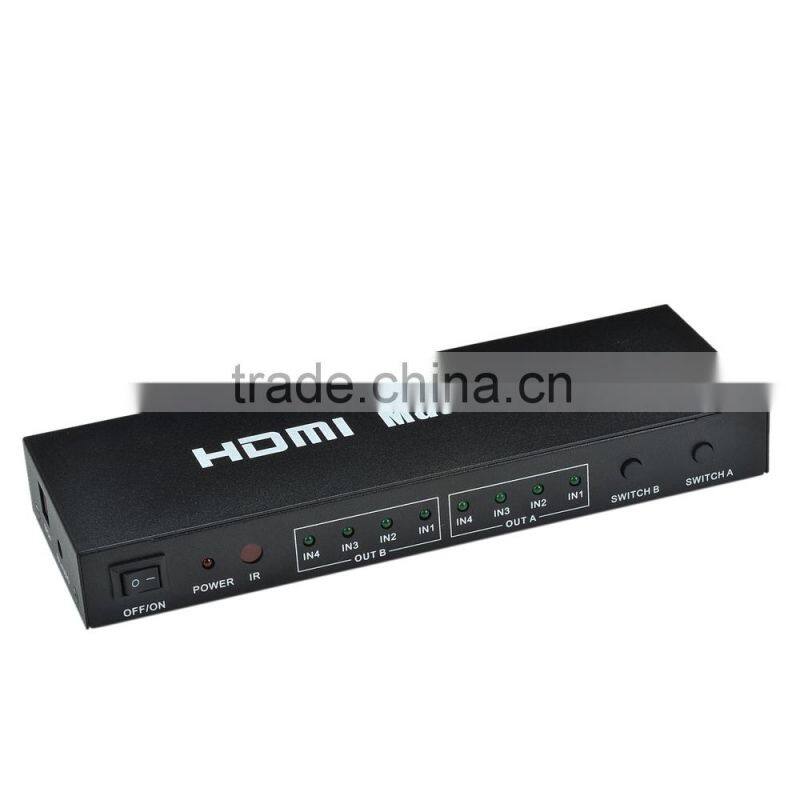

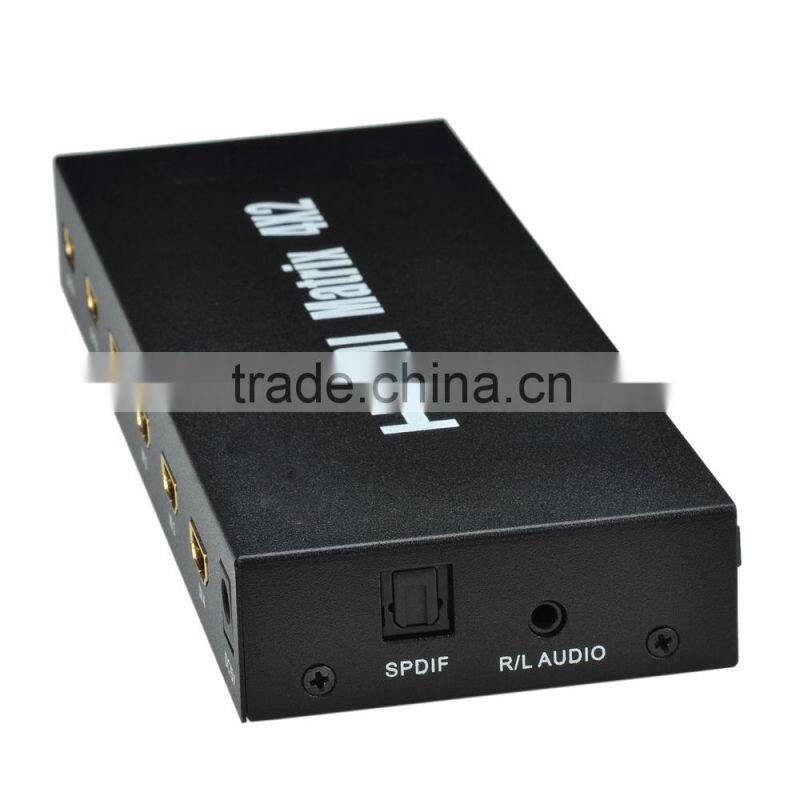

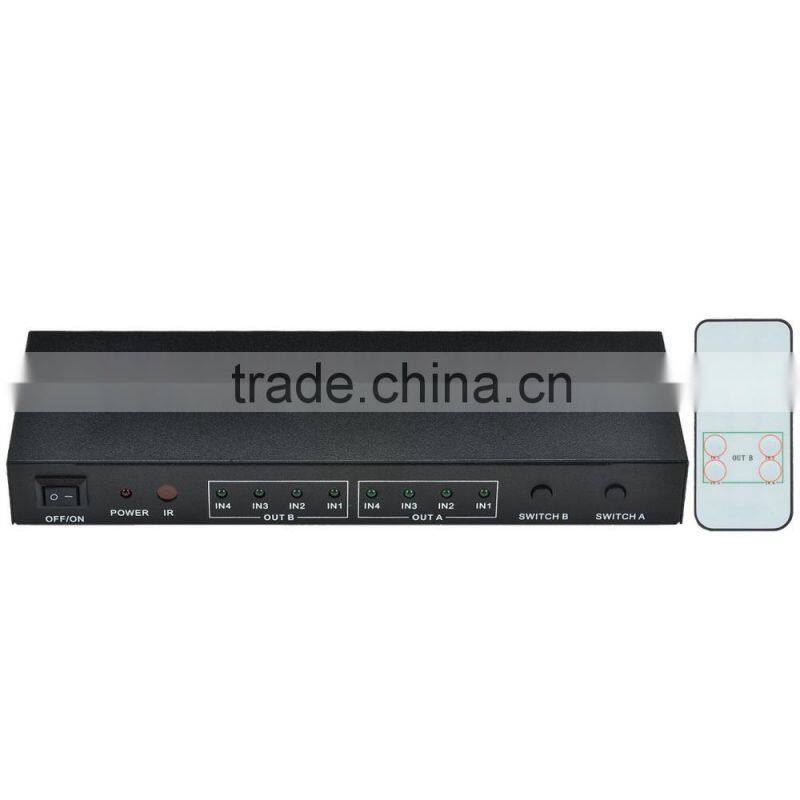

CHEERLINK HDMI True Matrix 4 in 2 Out Full High Fidelity V1.3 1080p - Black
Negotiable
/ Piece
100 Pieces(Min. Order)
- FOB Shenzhen
You May Like
-
CHEERLINK HDMI Matrix 4-In 4-Out Full 4K * 2K Router Type
-
CHEERLINK 3D Supported 1080P 4*4 HDMI True Matrix / Full HD HDMI Switcher 4X2 w/ RS232 Function
-
CHEERLINK HDMI 1.3 Matrix 4x4 w/ IR Remote Control Hdmi Switcher / Splitter
-
CHEERLNIK HDMI True Matrix 4-in 2-out Full 1080p Supported 3D V1.3 HDMI Matrix 4*2 w/ Remote Control - Black
-
CHEERLINK 4x4 Full HD 1080P HDMI V1.3 True Matrix RS232 w/ Remote Control - Black
-
CHEERLINK 4-In 2-Out Full HD 1080P HDMI True Matrix W/RS232 Control - Black
Product Details
| Brand Name | CHEERLINK | Model Number | HDMI0402 | |
| Place of Origin | Guangdong, China |
Product Description
Product Description
| General | |
|---|---|
| Brand | CHEERLINK |
| Model | HDMI0402 |
| Material | Aluminum alloy + electronic components |
| Color | Black |
| Quantity | 1Piece |
| Other Features | |
| Cable Length | 121cm |
| Connector | DC interface, SPDIF , HDMI , 3.5mm |
| Plug Specifications | EU Plug (2-Round-Pin Plug) |
| Power Supply | Input : 100V - 240V ~ 0.18A 50/60Hz; Output : 5V-1.5A |
| Certification | CE, FCC, RoHS |
| Other Features | Supports CEC; Supports deep color: 24/30/36 bit deep color; Supports blue-ray 24/ 50/ 60fs/ HD-DVD/ xvYCC; Supports resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i; Supports audio format: DTS- HD/ Dolby-true HD/LPCM7.1/ DTS/Dolby-AC3/DSD; By remote the optical audio format can be swatch to stereo sound or DTS- HD/ Dolby-true HD/LPCM7.1/ DTS/Dolby-AC3/DSD, The Hi-Fi audio format is decided by the source dfilm; Audio output by SPDIF or COAX with stereo equipment. Supports signal retiming; Inputs can be switch with the IR control or the two buttons on the panel.t TMDS signal: 0.5~1.5V p-p (TTL); DDC signal: 5V p-p (TTL); Max. bandwidth: 225MHz; Max band rate: 6.75Gbps; Input cable distance: <= 15M AWG26 HDMI standard cable; Output cable distance: <= 25M AWG26 HDMI standard cable; Operating Temperature: -15 ~ + 55'C; Operating Humidity: 5% ~ 90% RH (No condensation). |
| Dimensions & Weight | |
|---|---|
| Dimensions | 7.76 in x 2.68 in x 0.91 in (19.7 cm x 6.8 cm x 2.3 cm) |
| Weight | 10.77 oz (305.3 g) |
| Packing List |
|---|

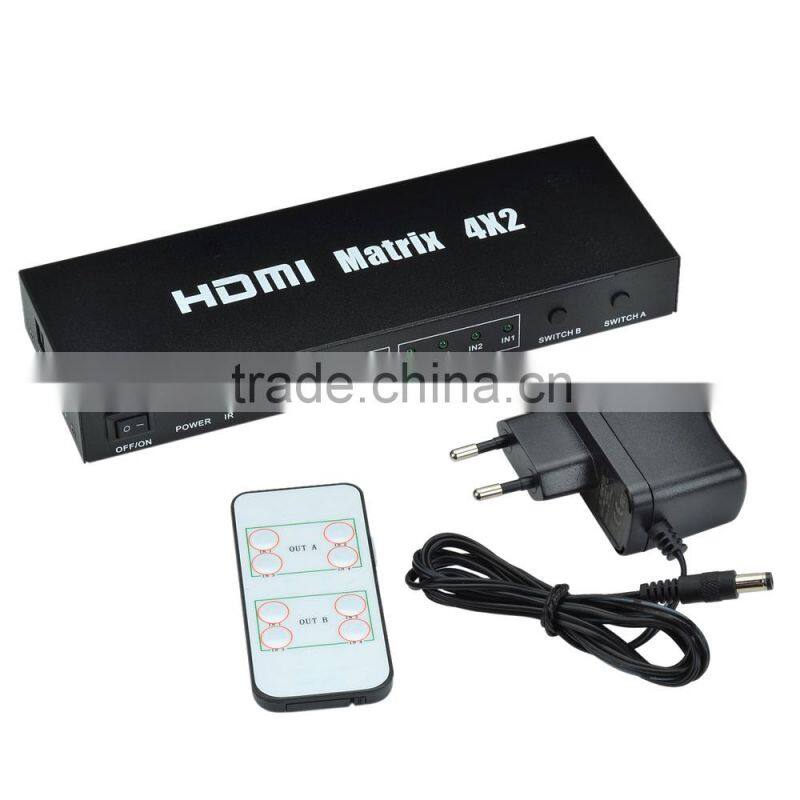

| 1 x HDMI Matrix 1 x IR Remote control (1 x CR2025 battery, included) 1 x Power adapter (121cm) 1 x English / Chinese user manual |
