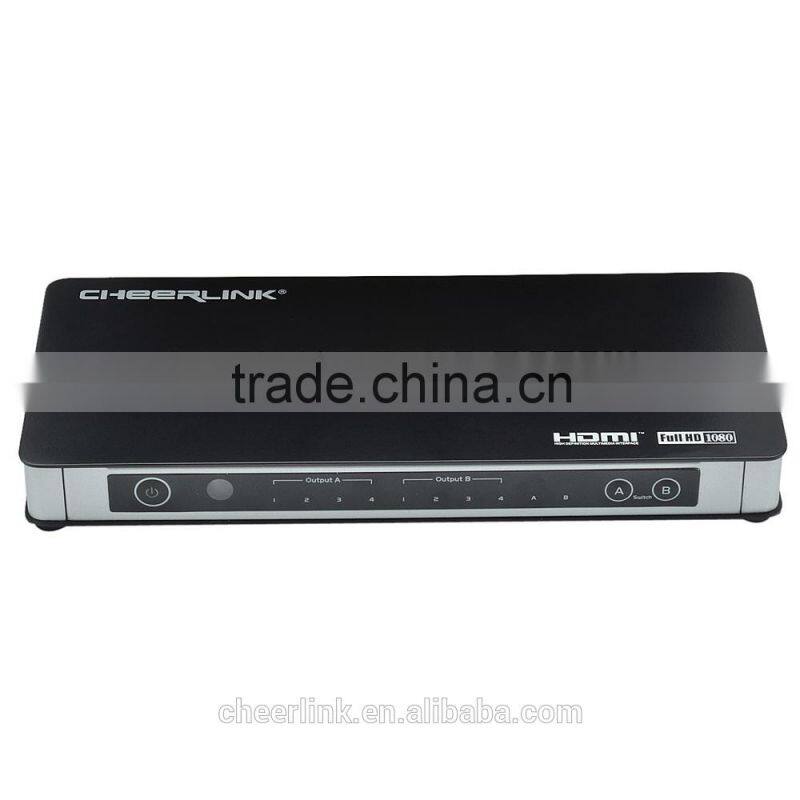

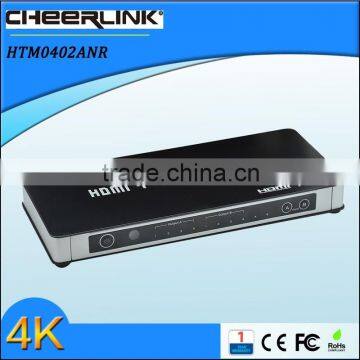

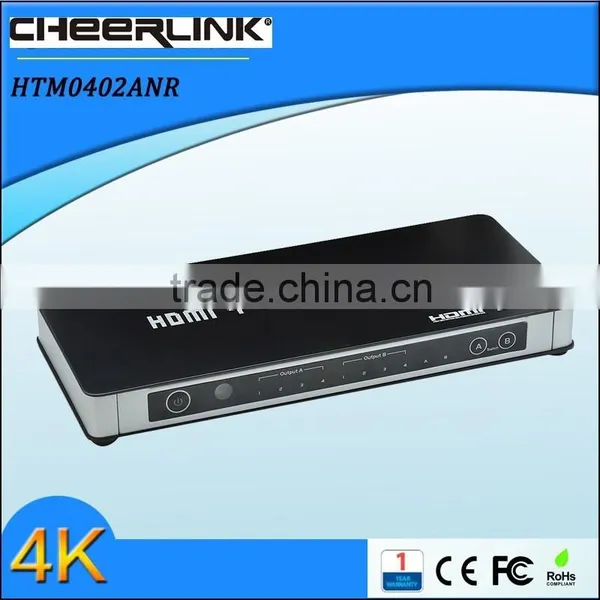

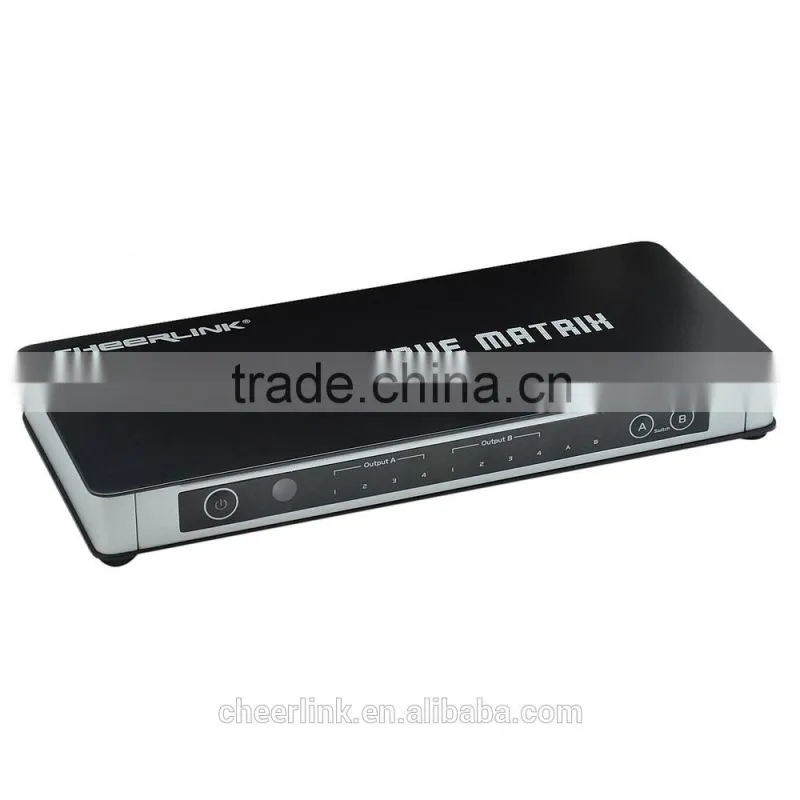

CHEERLINK 3D Supported 1080P 4*2 HDMI True Matrix / Full HD HDMI Switcher 4X2 w/ RS232 Function

Name: CHEERLINK 3D Supported 1080P 4*2 HDMI True Matrix / Full HD HDMI Switcher 4X2 w/ RS232 Function
Brand: CHEERLINK
Availability: InStock

FOB Price

US$ 45.99 - 49.99 / Case

50 Cases(Min. Order)

Port FOB Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CHEERLINK		Model Number	HTM0402ANR
Place of Origin	Guangdong, China

Product Description

Model Number: HTM0402ANR

4x2 HDMI Matrix

Sample available

The 4x2 CHEERLINK HDMI Matrix(Model No.HTM0402ANR) with RS-232 and IR Remote is designed to work as a switcher for multiple sources and displays. With a maximum bandwidth of 2.25Gbps, this device will support a sharp and highly defined video in multiple resolutions of up to 1080p. Because it is a matrix switcher, it allows any input to be routed to any output; or the same input to be routed to all outputs or any combination. It completely eliminates the need to constantly move around video input and output cables. RS-232 control allows the switcher to be controlled by systems like Crestron or any computerized software/hardware control system.

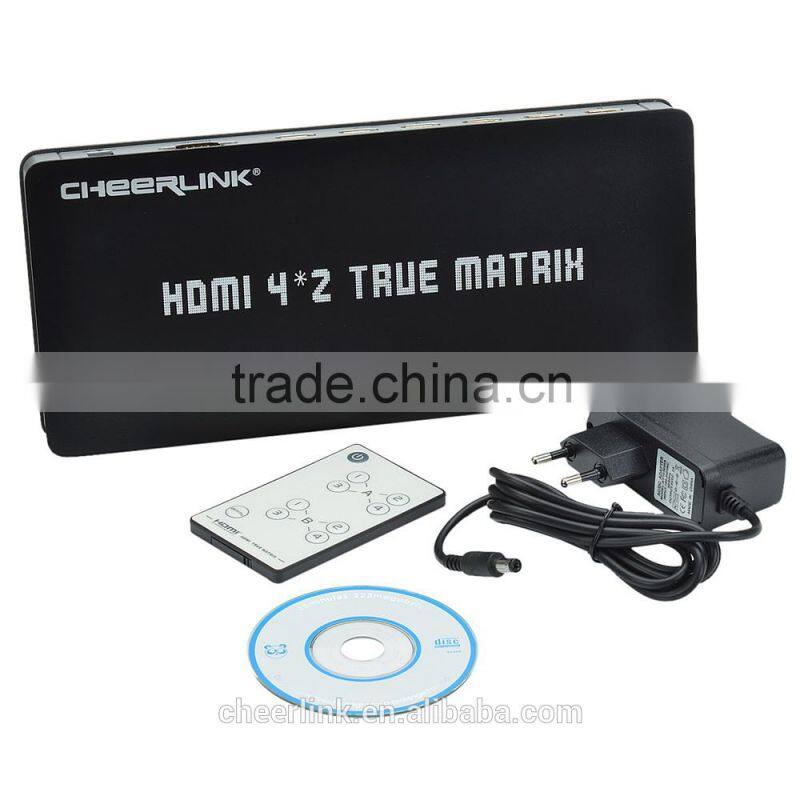

Package Includes:

1x HTM0402ANR
1x IR Remote control
1x 5V Universal Power Supply
1x User's Manual

FEATURES

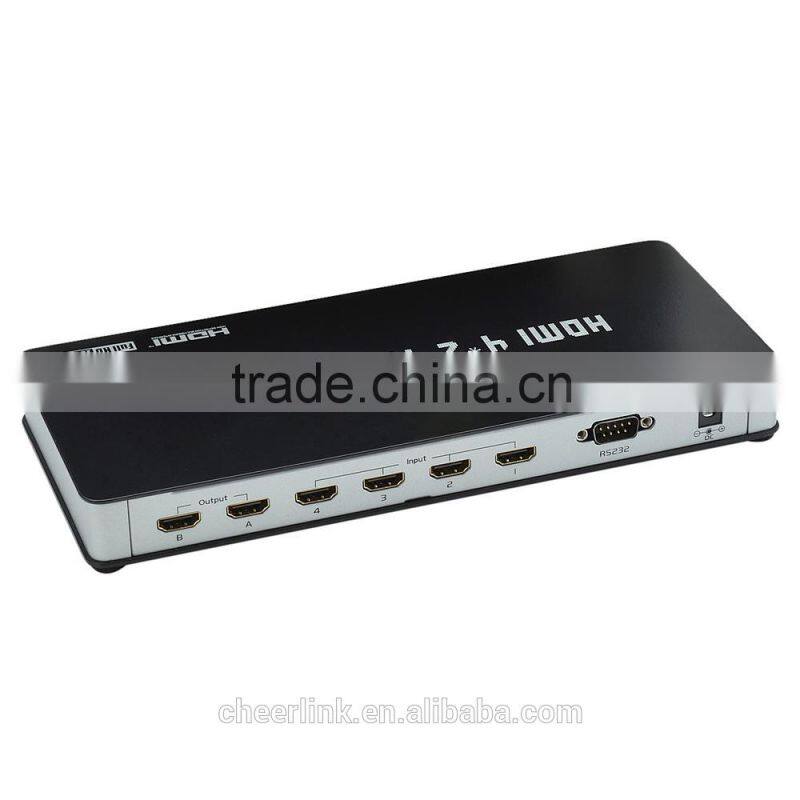

Support true matrix output,connecting 4 HDMI input and 2 HDMI output
Support Deep color 36bit.
Support HDMI audio format:LPCM/Dolby-AC3/DTS7.1/DSD/Dolby true HD/DTS-HD master Audio.
Remote control;manual operated and automatic selection function
Remote control function via Rs232
Favourite input source setting.
Perfect compatibility with any HDMI applications.
Great working stability.
Power Adapter included , plug and play.
HDCP 1.3 protocol compliant.

SMART FUNCTION INTRODUCTION

1.Sense the input source ports automatically ,and bypass the port without signal .
2.Remember the active input source port(s) while pressing "RESET" on the remote control, and select this input source port automatically when restart.

SPECIFICATIONS

Support 3DTV
Support resolution: 1080P/1080i/720P/576P/480P/576i/480i
Support audio format: LPCM, Dolby-AC3,DTS7.1,DSD/Dolby TrueHD/ DTS-HD Master Audio.
Support deep color up to 36bit
Support data transfer bitrates up to 2.25Gbps/per chennel
Tmds clock frequency range:25~225Mhz
Support input video signal volts:0.5Vp-p
Support DDCsignal volts:5Vp-p
Power supply:DC5V/2A
Power adapter format : Input AC(50HZ.60HZ) A100V-240V; Output DC5V/2A
HDMI output cable distance : ≤15m(if need longer,amplifier is needed )
Operating temperature range : -5 to +35oC(-41 to +95oF)
Operating humidity range : 5 to 90 % RH (no condensation)
