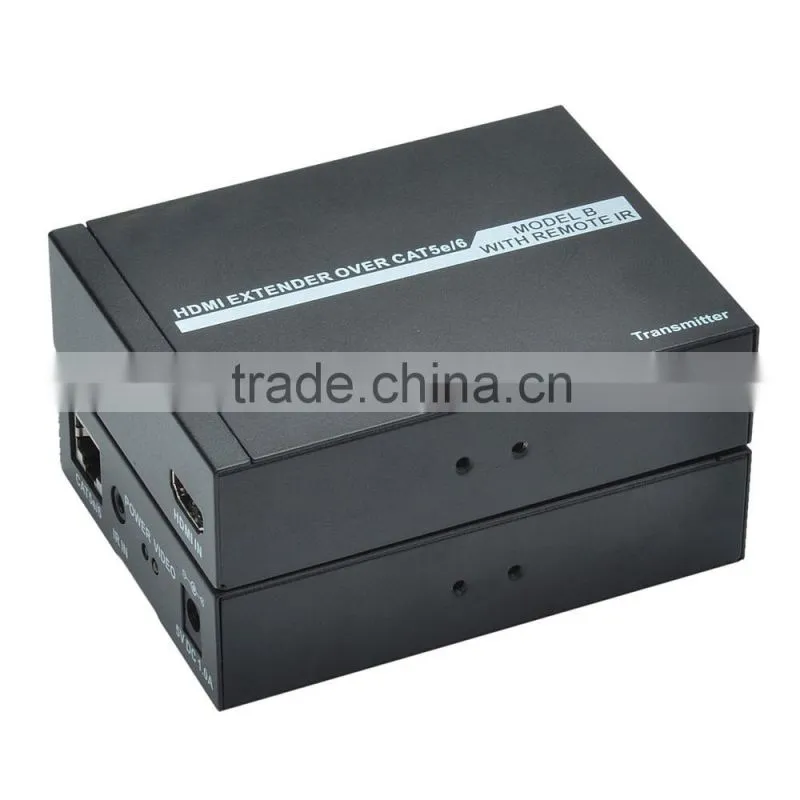

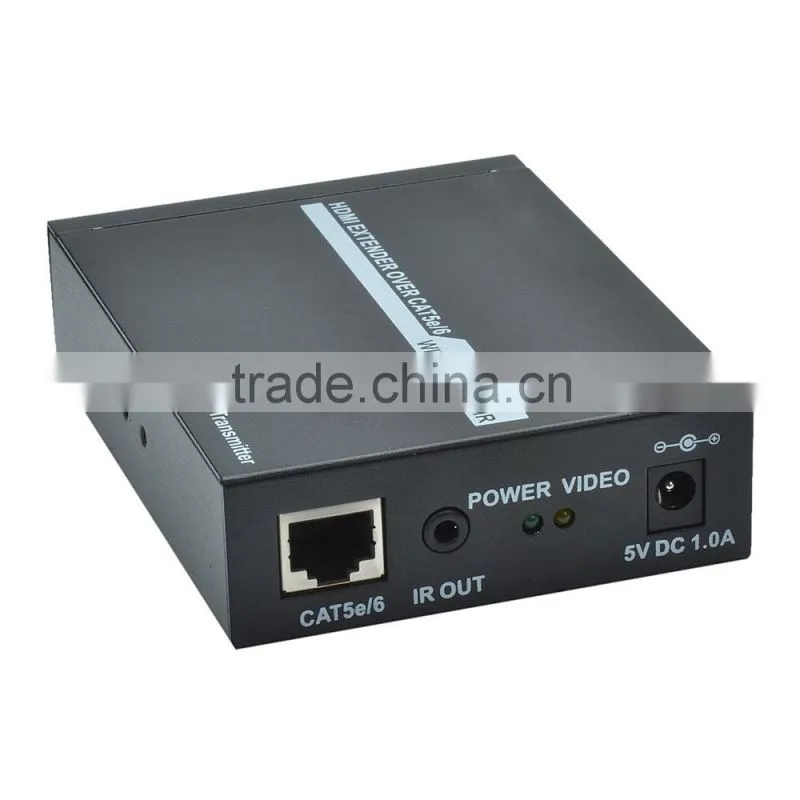

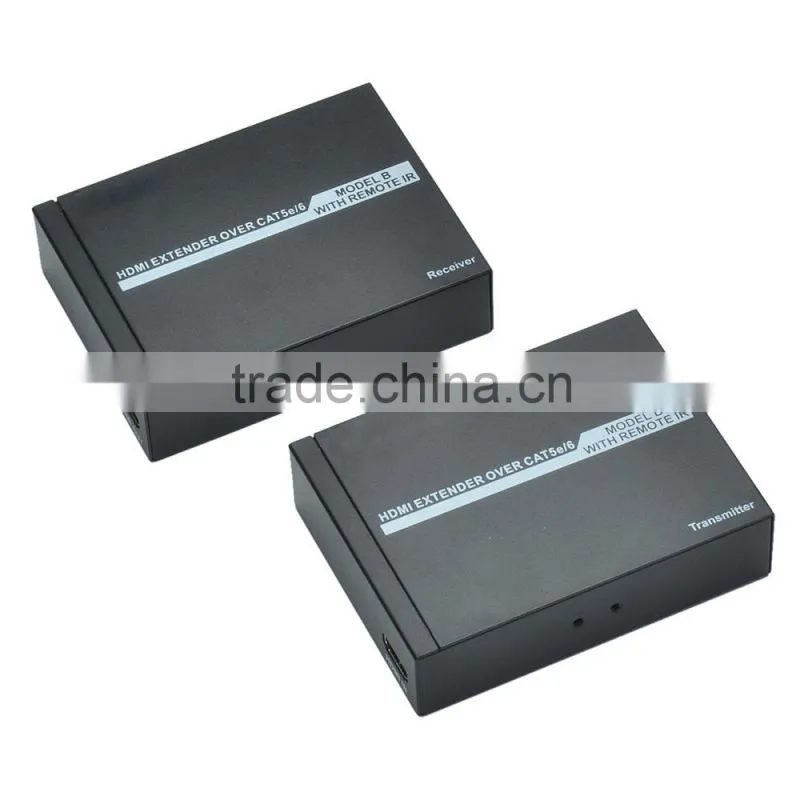

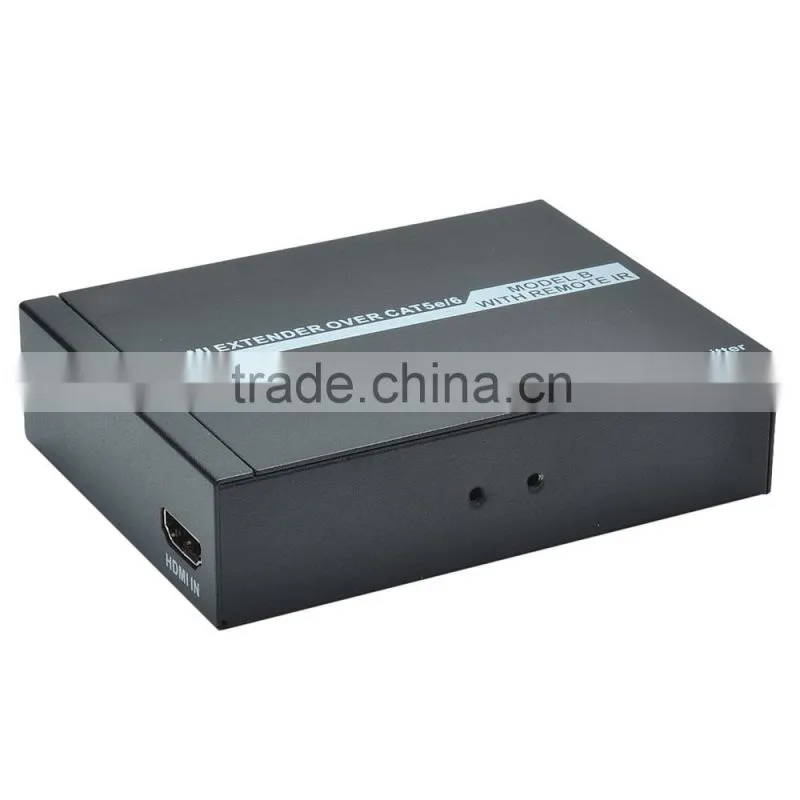

High Cost-effective HDMI Extender Over Cat 5e/6 With IR Remote Control

High Cost-effective HDMI Extender Over Cat 5e/6 With IR Remote Control photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
CHEERLINK
Model Number:
DX
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Brand Name CHEERLINK
Model Number DX
Place of Origin Guangdong, China

High Cost-effective HDMI Extender over Cat 5e/6 with IR Remote ControlHigh Cost-effective HDMI Extender over Cat 5e/6 with IR Remote ControlHigh Cost-effective HDMI Extender over Cat 5e/6 with IR Remote ControlHigh Cost-effective HDMI Extender over Cat 5e/6 with IR Remote ControlHigh Cost-effective HDMI Extender over Cat 5e/6 with IR Remote ControlHigh Cost-effective HDMI Extender over Cat 5e/6 with IR Remote Control



Product Description



HDMI + USB KVM extender includes transmitter and reviver. Transmitter combines HDMI video, audio and control signals, and then transmits them through single CAT5e cable. Receiver gets these signals, separates signals and rebuilds video/audio, output through HDMI interface.

General
Brand CHEERLINK
Material Steel + electronic components
Color Black
Quantity 1Piece
Other Features
Cable Length 145cm
Connector Cat 6 , Cat 5e , HDMI , 3.5mm
Plug Specifications US Plug (2-Flat-Pin Plug)
Power Supply Input: 100~240V, 50/60Hz 0.25A, Output: 5V 1000mA.
Certification CE / FCC / RoHS
Other Features Power: <2.5W TX, <1.5W RX; Video bandwidth: maximum TMDS clock frequency 225MHz, 6.75Gbps; Resolution and Distance: 1080P 50M-Cat5e / 80M-CAT6; 720P/1080i 80M-Cat5e / 100M-CAT6; Audio format: 8-Channel, support Dolby TrueHD and DTS Master; TMDS input signal: 1.2V point to point; DDC input signal: 5V point to point; HD interface standard: HDMI 1.3 standard (HDMI 1.4 3D function), HDCP 1.2, support CEC, EDID; Support 3D signal, all 7 formats; UART date rate: Support 4800bps, 9600bps, 19200bps, 39400bps, 57600bps; Remote IR: 38khz; USB interface: USB HID compatible devices, plug and play, no need to install software; Temperature range: Operation 0-40'C, stock -20-60'C.
Dimensions & Weight
Dimensions 4.17 in x 3.11 in x 1.02 in (10.6 cm x 7.9 cm x 2.6 cm)
Weight 7.87 oz (223 g)
Packing List
1 x Transmitter
1 x Receiver
2 x AC power adapter (2-flat-pin plug / 100~240V / 145cm-cable)
1 x IR input Cable (95cm)
1 x IR output Cable (92cm)
1 x English user manual
