Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Audio & Video Cable > CHEERLINK HDMI V1.4 Extender to CAT-6 Infrared Single Network Cable Extender Set w/ Dual IR Control - Black

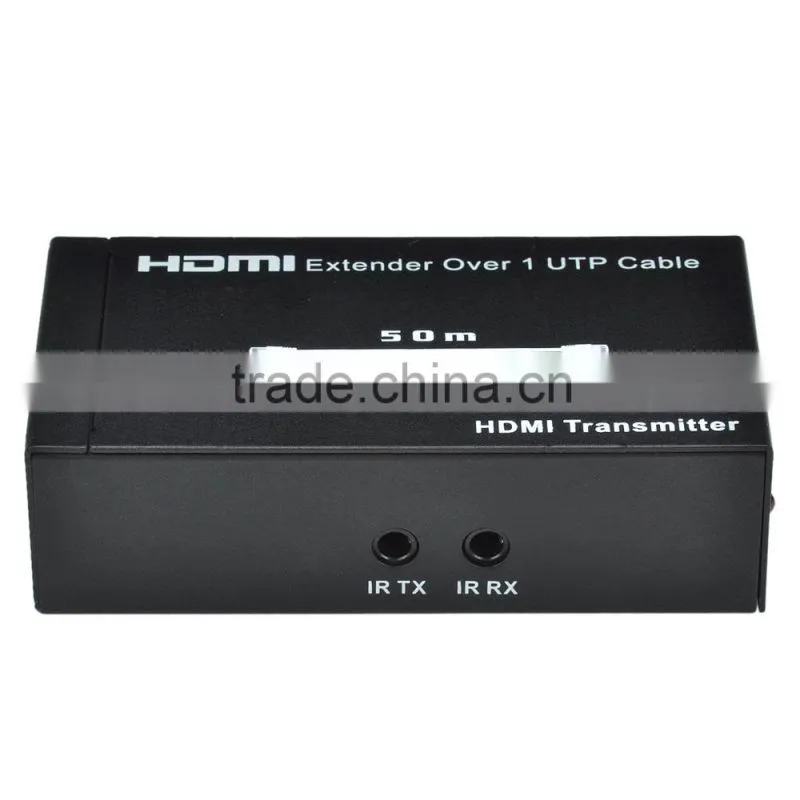

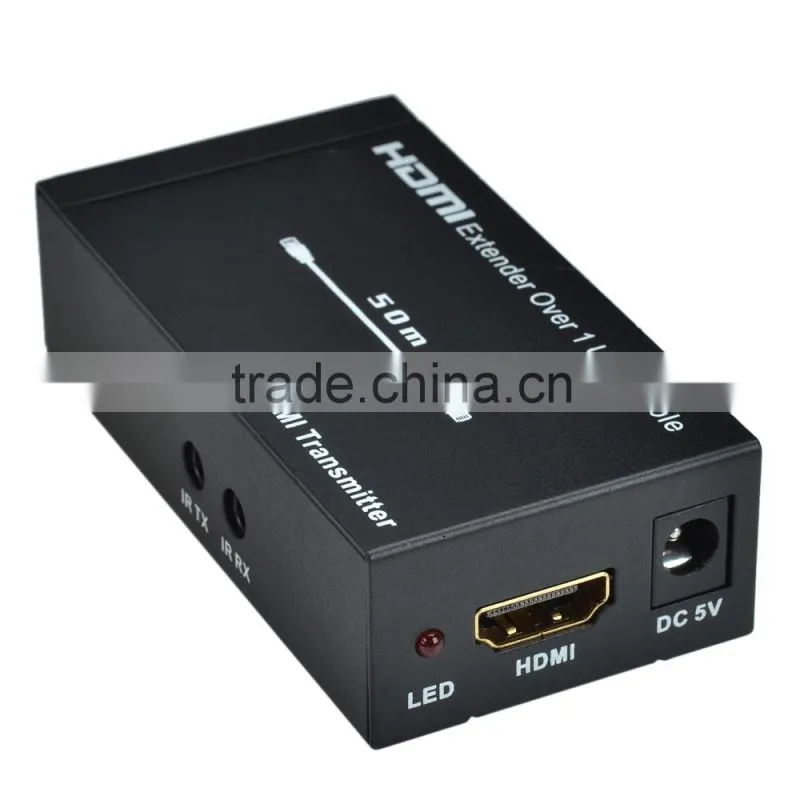

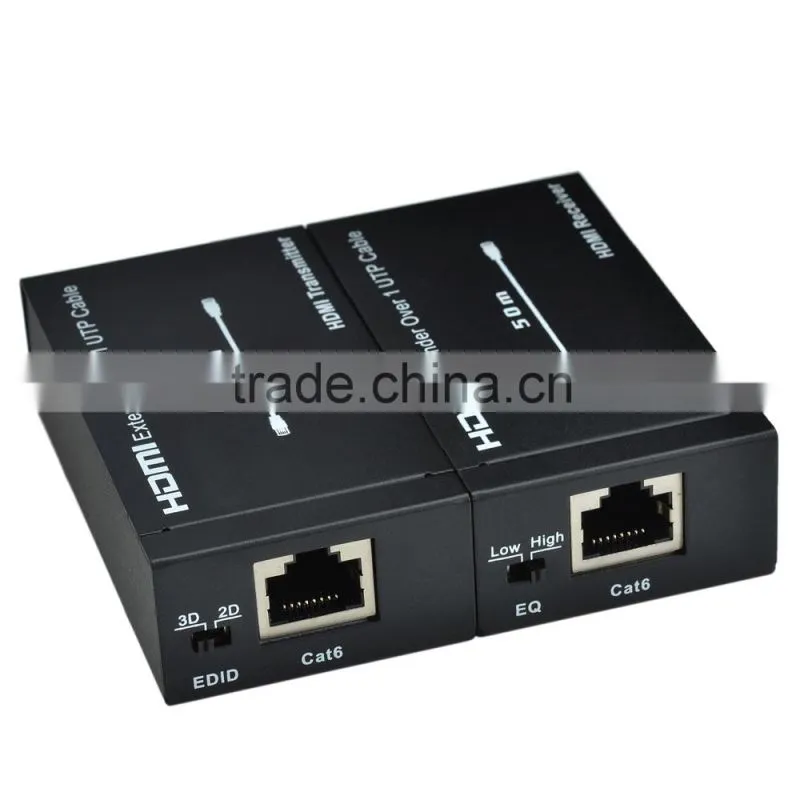

CHEERLINK HDMI V1.4 Extender to CAT-6 Infrared Single Network Cable Extender Set w/ Dual IR Control - Black
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
CHEERLINK
Model Number:
DX
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CHEERLINK Hot Sell Male to Female HDMI Extender / Repeater - BlackNegotiableMOQ: 100 Pieces -
CHEERLINK Hot New Products for 2015 HDMI Penis Extender tv TransmitterNegotiableMOQ: 50 Pieces
-
CHEERLINK Female to Male 1080P HDMI Extender / Repeater - Black + GoldenNegotiableMOQ: 100 Pieces
-
CHEERLINK A HDMI KVM Extender / Transmitter & Receiver Set - Black With IR ControlNegotiableMOQ: 100 Pieces
-
CHEERLINK HDMI / IR KVM Extender / Transmitter & Receiver SetNegotiableMOQ: 100 Pieces
Brand Name
CHEERLINK
Model Number
DX
Place of Origin
Guangdong, China
Product Description
- Connect the signal source such as Blue-Ray Player, Play Station 3, audio/video receiver, cable or satellite receivers and computers equipped with HDMI output interfaces with a high-speed HDMI cable to the HDMI transmitter input. HDMI cable length should not exceed 16ft.
- Connect the HDMI Transmitter output RJ45 ports using single Cat 5e or Cat 6 UTP cables to included Receiver. It is strongly recommended that factory terminated cable assemblies be used and their length shall not exceed 164 ft respectively for the 50m extenders.
- Connect the HDMI output from the Receiver to high-definition display devices such as HD-LCD, HD-DLP and HD projectors with HDMI input interfaces. High-speed HDMI cables that are recommended for the distances that are required for each connection. HDMI cable length should not exceed 16 ft.
- Connect the HDMI Transmitter output RJ45 ports using single Cat 5e or Cat 6 UTP cables to included Receiver. It is strongly recommended that factory terminated cable assemblies be used and their length shall not exceed 164 ft respectively for the 50m extenders.
- Connect the HDMI output from the Receiver to high-definition display devices such as HD-LCD, HD-DLP and HD projectors with HDMI input interfaces. High-speed HDMI cables that are recommended for the distances that are required for each connection. HDMI cable length should not exceed 16 ft.
| General | |
|---|---|
| Brand | CHEERLINK |
| Material | Aluminum alloy + electronic components |
| Color | Black |
| Quantity | 1Piece |
| Other Features | |
| Cable Length | 150cm |
| Connector | DC/IR , Cat 6 , Cat 5e , HDMI |
| Plug Specifications | US Plug (2-Flat-Pin Plug) |
| Power Supply | Input: 100V~240V, 0.15A, 50/60Hz; Output: 5V / 1A |
| Certification | CE FCC RoHS |
| Other Features | - Compliant with HDMI 1.3, HDCP 1.1 and DVI 1.0 standards - Supports digital video formats in 1080p and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio - Equalizes and recovers incoming TMDS data before re-transmitting it in high quality, regardless of the incoming signal quality - Supports HDMI 1.4 with 3D function - Super IR control system, IR transport channel can be forward or backward - HDMI Transmitter EDID Switch: Select 3D or 2D EDID - HDMI Receiver EQ Switch: Low: for 0~20m Cat 5e/6 cable; High: for 20~50m Cat 5e/6 cable - Bandwidth: up to 165MHz - Support resolution: 480i~1080p 50/60, VGA~UXGA - HDMI transmitter ports: HDMI, IR TX, IR RX, Cat 5e/6 - HDMI receiver ports: HDMI, IR TX, IR RX, Cat 5e/6 - ESD protection human body model: ±8kV(air-gap discharge), ±4kV(contact discharge) - Operating temperature: 0 'C~ 40 'C/32'F~104'F - Storage temperature: -20'C~60 'C/-4'F~140'F - Humidity: 20~90% RH (Non-condensation) |
| Dimensions & Weight | |
|---|---|
| Dimensions | 3.07 in x 1.65 in x 0.83 in (7.8 cm x 4.2 cm x 2.1 cm) |
| Weight | 6.37 oz (180.7 g) |
| Packing List |
|---|
| 1 x Transmitter 1 x Receiver 1 x IR TX cable (153.5 cm) 1 x IR RX cable (159 cm) 2 x Power Adapter (2-flat-pin plug; 150cm; Input: 100V~240V, 0.15A 50/60Hz; Output: 5V-1A) 1 x English user manual |
