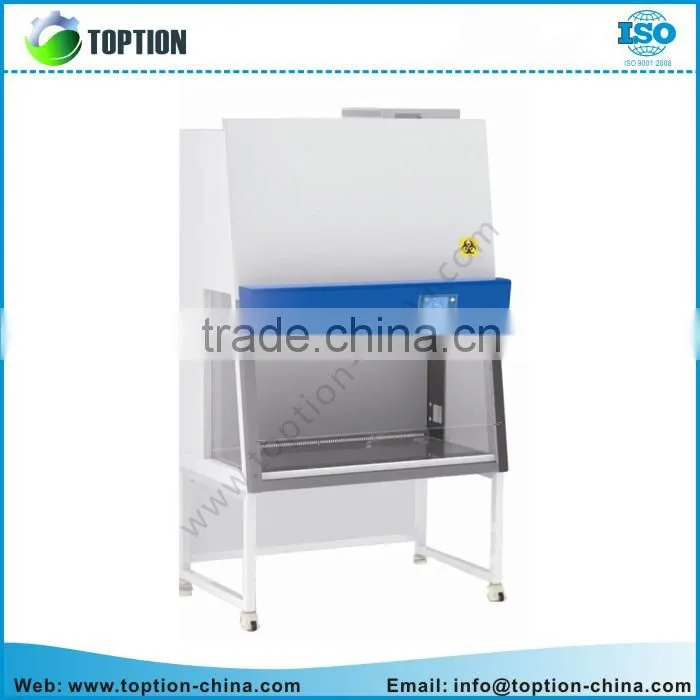

Biosafety Cabinet-11237BBC86
l Introduction

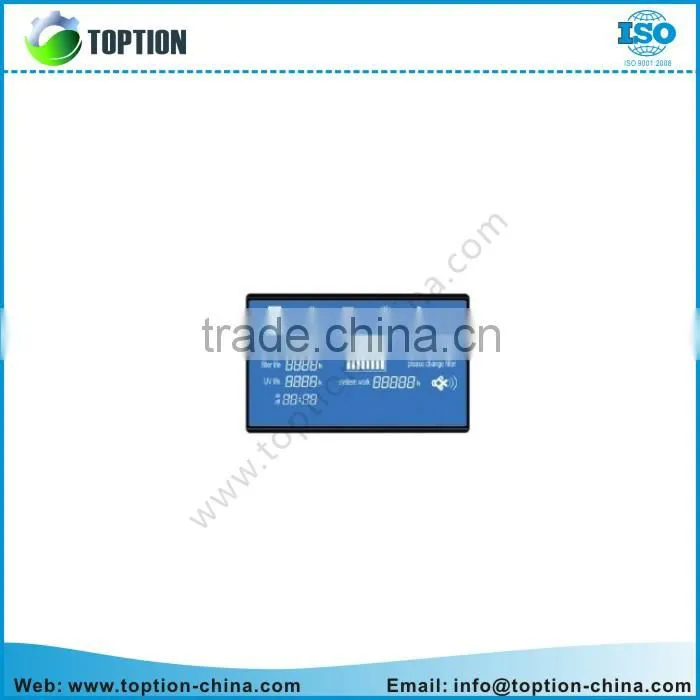

- 1. LCD display----Large Digital LCD display is easy to monitor all the safety parameters at a glance and ergonomically sized control panel improves user interface.
- 2. Work Zone----Work zone is made of 304 stainless steel work stable.

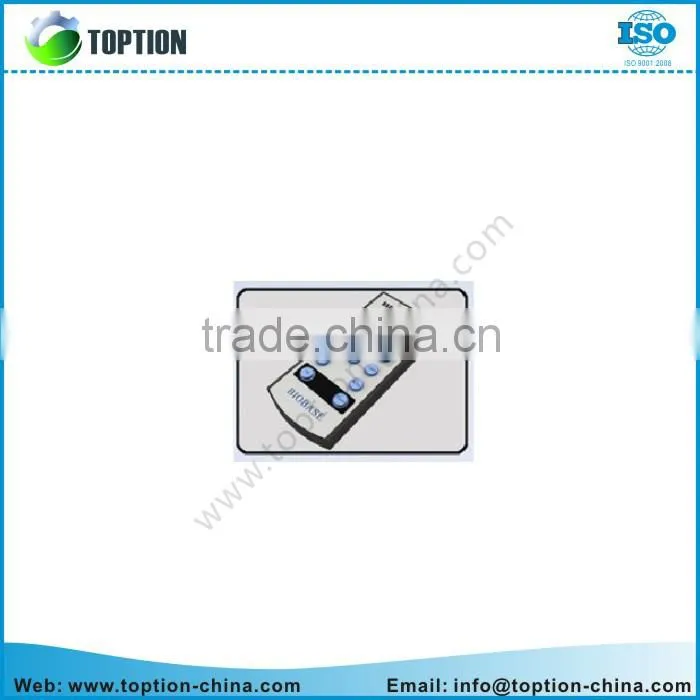

- 3. Remote Control--- Remote control for convenient operation.
- 4. UV Lamp---Emission of 253.7 nanometers for most efficient decontamination.

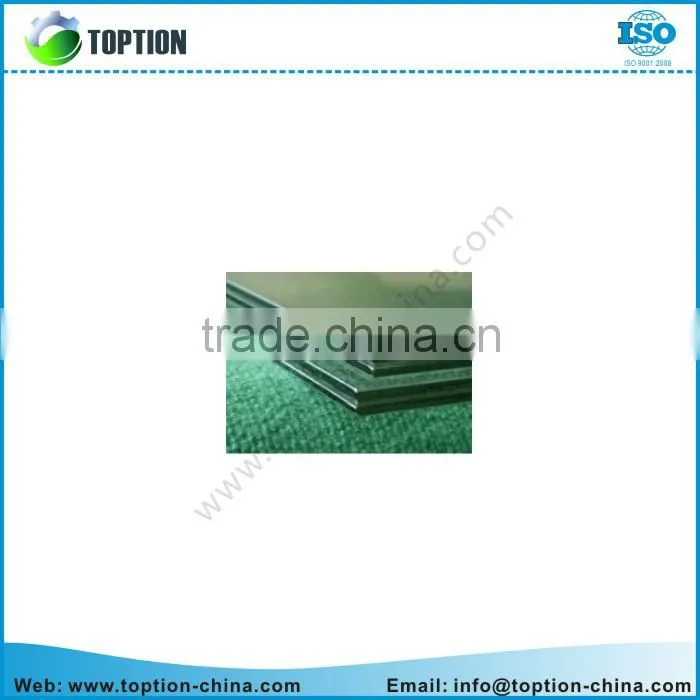

- 5. Front Window---Two-layer laminated toughened glass>5mm, anti UV.
- 6. Waterproof Socket
l Advantage
1. The transparent side glass windows maximize light and visibility inside the cabinet, providing a bright and open working environment.
2. The 10° sloped front allows an ergonomic, fatigue-free working posture.
3. The front window is motorized for convenient, one-hand operation. The window control is mounted on the front control panel.
4. When fully lowered the front window, it seals automatically against a closed-cell peripheral gasket to isolate the interior and prevent escape of contaminants during decontamination.
5. Front window can be closed manually in case of power failure.
l Technical Parameters
Model |
11237BBC86 |
||||
External Size (W×D×H) |
1300*790mm*2310mm |
Internal Size (W×D×H) |
1200*600*770mm |
||
Work Surface Height |
750mm |
Max Opening |
480mm |
||
Tested Opening |
Safety height ≤200mm |
Noise |
EN12469: ≤60dB |
||
HEPA filter |
Two,99.999% efficiency at 0.3 um; filter life indicator |
Illumination |
≥1000lux |
||
Average airflow velocity |
Inflow: 0.5±0.025m/s (98.4fpm), Downflow: 0.36±0.025m/s (71fpm) |
||||
Airflow volume |
Inflow: 430m3/h(270cfm), Downflow: 720m3/h(430cfm) |
||||
Exhaust: 360m3/h(220cfm) | |||||
UV lamp (Optional) |
30W germicidal UV lamp. Emission of 253.7 nanometers for most efficient decontamination; UV life indicator |
||||
Alarm |
Abnormal airflow velocity; Filter change; Front Window over height |
||||
Material |
Main body: Cold-rolled steel coated with anti-bacteria powder |
||||
Work surface: 304 Stainless steel, three pieces | |||||
Side and front window: Two-layer laminated toughened glass | |||||
|
Electrical (220-240V, AC, 50Hz) |
Cabinet consumption/Amp: 430W/2.1A; BTU/Hr : 1466 |
||||
Total load of 4 sockets : ≤500W; Socket amp fuse : 6.3A | |||||
Standard Accessory |
waterproof sockets *4, Base stand, Remote control, Fluorescent lamp, Drain valve |
||||
Optional accessory |
Armrest, airflow tester, Formalin fumigation sterilizer, infrared sterilizer, |
||||
Gross weight |
300KG |
Package Size(W*D*H) |
1480*1000 |
||
