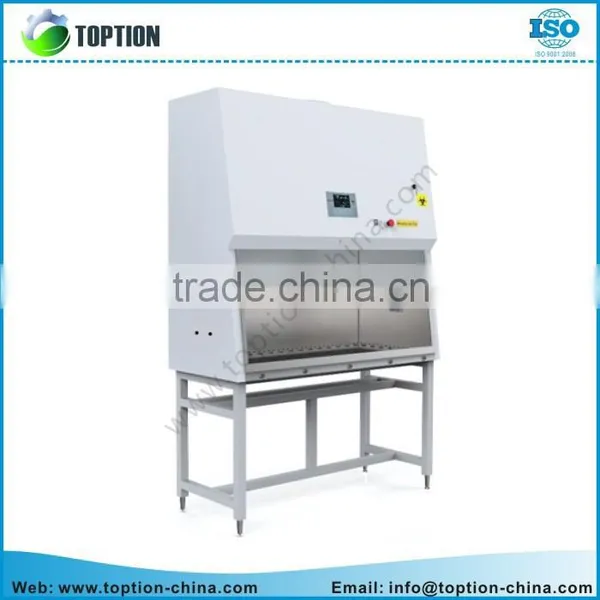

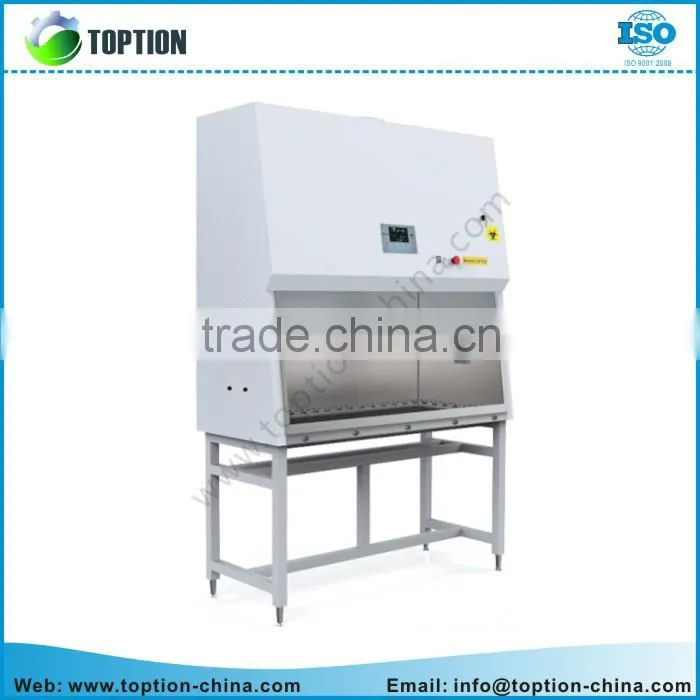

NSF certified Biosafety Cabinet(4')
l Introduction
- 1. VFD Display---Demonstrate various colors with high bright, work no less than 30,000 hours continually.
- 2. Taps---Stainless steel water and gas taps.
- 3. Front Window---Two-layer laminated toughened glasses ≥ 5mm, anti UV.
- 4. Waterproof Socket
- 5. UV Lamp (optional) ---Emission of 253.7 nanometers for most efficient decontamination.
- 6. Air pattern
l Advantage
1. VFD Display: it shall demonstrate various colors with high bright, even in the evening. It shall work no less than 30, 000 hours continually.
2. Optional adjustable base stand, height range:635-845mm
3. One-piece removable worktable, easy to clean.
4. Filter, Blower and Fluorescent lamp working time inquiry.
5. Work area surrounded by Negative pressure, it can ensure maximum safety in work area.
l Technical Parameters
Model |
11228 BBC86 (4’) |
|||
External Size(W*D*H) |
1421×850×2180mm 55.9" ×33.4" ×85.8" |
|||
Internal Size(W*D*H) |
1220×665×650mm 48" ×26.1" ×25.6" |
|||
Work Surface Height |
750mm |
Max Opening |
450mm (18’’) |
|
Tested Opening |
Safety height ≤200mm (8’’) |
Front Window |
Motorized, anti UV |
|
HEPA filter |
Two, 99.999% efficiency at 0.3um, filter life indicator |
Noise |
NSF 49≤61 dB/EN 12469≤58 dB |
|
Illumination |
>850Lux |
Display |
VFD Display |
|
Waterproof socket |
2, Total consumption:500W |
Tap |
Water tap*1, Gas tap *1 |
|
Filter guard Type |
Aluminium Alloy frame |
Ground Resistance |
≤ 0.10Ω |
|
Power supply |
AC 110V±10%, 60Hz ±1Hz, Full load Amps: 9A, BTU/Hr: 1689 |
Consumption |
400W |
|
Alarm |
Abnormal airflow velocity; Filter change; Front Window over height |
|||
Motors |
One ECM motor, 110V& 220V acceptable, Speed adjustable, high efficiency and low power consumption |
|||
Average Airflow Velocity |
Inflow velocity:0.53±0.025m/s(105fpm); Downflow velocity :0.33±0.025m/s(66fpm) |
|||
Airflow Volume tubem()iaanlocitytected Aeratrol |
Inflow:465m3/h(275cfm); Downflow 67%: 956 m3/h (571cfm); Exhaust, 33%: 465 m3/h (275cfm) |
|||
Material |
working area: 304stainless steel/ Frame and Decorative Plate: cold-rolled steel with anti-bacteria power coating |
|||
UV lamp |
30W germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination |
|||
Standard Accessory |
Fluorescent lamp, UV lamp *2, Base stand, SS water & gas taps, Drain valve, Waterproof sockets |
|||
Optional Accessory |
Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Adjustable base stand |
|||
Package size (W*D*H) |
1600*1050*1870mm |
Gross weight |
330kg |
|
