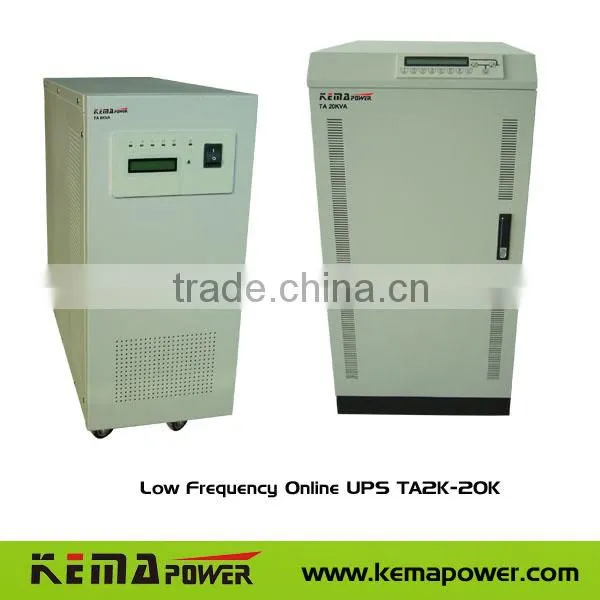

Help CenterSingle Phase UPS TA 2K-20K
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guizhou, China
Brand Name:
KEMAPOWER
Model Number:
TA 2K-20K
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sine Wave UPS 3C 10KVA 15KVA 20KVA (3:1)NegotiableMOQ: 1 Piece -
TC10K-120K Heavy Duty Industrial UPSNegotiableMOQ: 1 Piece
-
AT 500VA -800VA Offline UPSNegotiableMOQ: 1 Piece
-
Low Frequency Online UPS TA2K-20KNegotiableMOQ: 1 Piece
-
High Frequency Online Sine Wave Rack Mounted UPS (RC1K(S))US$ 120 - 180MOQ: 1 Piece
Place of Origin
Guizhou, China
Brand Name
KEMAPOWER
Model Number
TA 2K-20K
Phase
Single Phase
Protection
Other
Output Voltage
220VAC ±1% or 110VAC ±1%
Type
Other, Low-frequency
Key Features
1.Single phase in, single phase out
2.Microprocessor control
3.True on-line double conversion design.
4.Sine wave pulse width modulation.
5.Isolated output
6.IGBT inverter design
7.Wide Input voltage windows
8.Pure sine wave output with less than 3% THD
9.Expandable backup time
10.Generator compatible
11.Cold start
12.Load/Battery power meter display
13.Overload, on-line, battery status LED/LCD
14.Advanced Battery Management
TA SERIES TECHNOLOGY SPECS
| MODEL | TA2K | TA3K | TA4K | TA6K | TA8K | TA10K | TA12K | TA15K | TA20K | |
| Power capacity | 2KVA | 3KVA | 4KVA | 6KVA | 8KVA | 10KVA | 12KVA | 15KVA | 20KVA | |
| 1.6KW | 2.4KW | 3.2KW | 4.8KW | 6.4kW | 8KW | 9.6KW | 12KW | 16KW | ||
| Input | Voltage Range | 220V or 110V+-20% | ||||||||
| Frequency | 50/60Hz±5% | |||||||||
| Phase | Single phase + GND | |||||||||
| Output | Voltage Range | 220VAC ±1% or 110VAC ±1% | ||||||||
| Frequency | 50/60Hz ± 0.3% | |||||||||
| Phase | Single phase + GND | |||||||||
| THD | < 3% (linear load), < 5%( nonlinear load) | |||||||||
| Power Factor | 0.8 | |||||||||
| Short Circuit Protection | Current limit, turn off automatically, Switch protect | |||||||||
| Overload Capacity | Overload 125% for 10 Mins, 125%-150% for 30s .automatically resume when load become | |||||||||
| normal | ||||||||||
| Battery | Type | Sealed lead acid, maintenance free | ||||||||
| DC Voltage | 48VDC | 96VDC | 192VDC | |||||||
| Charge current | 6A | 6A | 6A | 6A | 6A | 6A | 6A | 6A | 6A | |
| Panel indication | LCD | Input,oupt,battery voltage,frequency,load rate,UPS state, temperature | ||||||||
| LED | Main input , bypass,Inverter,Battery,Over load,Fault | |||||||||
| Efficiency | Whole unit | 85% | ||||||||
| Communication | 1.Power status 2.UPS shutdown 3.monitor UPS status 4.UPS self test 5.auto-save files | |||||||||
| Protection | Surge Protection | IEEE527B | ||||||||
| Noise | FCC.A | |||||||||
| Audible Noise | <55db (at 1 meter) | |||||||||
| Environment | Temperature | 0--40 °C | ||||||||
| Humidity | 0%-95% | |||||||||
