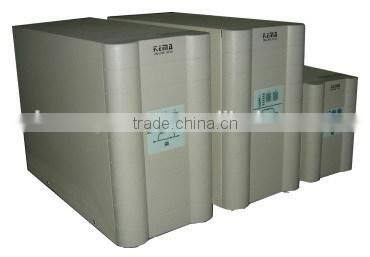

Help CenterC1KVA 2KVA 3KVA Online UPS
US$ 50 - 180
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
kemapower
Model Number:
C
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Modified Sine Wae UPS AT 1000-1500NegotiableMOQ: 1 Piece -
10KW-120KW Low Frequencec Online UPSNegotiableMOQ: 1 Piece
-
AT 500VA -1500VA Offline Line Interactive UPS Quality ChoiceUS$ 10 - 20MOQ: 300 Pieces
-
TB10K-30K Low Frequency Online UPSUS$ 200 - 400MOQ: 30 Pieces
-
TC10K-120K Low Frequency Online UPSUS$ 200 - 600MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
kemapower
Model Number
C
Phase
Single Phase
Protection
Unbalanced Loads
Weight
2KG
Output Voltage
220/110VAC±2%
Type
Line Interactive
Application
Telecommunications
C series Online UPS
Key Features
1. High frequency and double conversion online UPS
2. Single phase
3. Fully digitized microprocessor control
4. Wide input voltage range
5. Advanced PFC technology
6. Self-testing when UPS startup
7. Advanced battery management
8. Automatic battery charging in UPS off mode
9. Lightning and surge protection
10. Short circuit and overload protection
11.Smart RS232 communication with monitoring software
TECHNOLOGY SPECS
| Item | Model | C1K/C1KS | C2K/C2KS | C3K/C3KS |
| Capacity | VA / Watts | 1KVA / 0.7KW | 2KVA / 1.4KW | 3KVA / 2.1KW |
| Input | Normal voltage | 220VAC/ 110VAC | ||
| 220V Voltage range | a) (118±5 ~ 300±5) VAC when Load≤50% | |||
| b) (140±5 ~ 300±5) VAC when Load>50% | ||||
| 110V Voltage range | 80-150VAC | |||
| Frequency range | 40~60Hz(adjustable) | |||
| Output | Voltage range | 220/110VAC+-2% | ||
| Frequency range | 50Hz/60Hz+-0.5% (Battery mode) | |||
| Wave form | Pure Sine Wave | |||
| Transfer between AC mode and battery mode | 0 ms | |||
| Transfer between AC mode and bypass mode | Transfer time: 4ms (typical 2.5ms) | |||
| Distortion (Full Load) linear load | ≤3% | ≤4% | ≤4% | |
| Degree of distortion (Full Load) nonlinear load | ≤6% | ≤7% | ≤7% | |
| Overload capacity | >110% 30s turn to bypass mode; >150%, 200ms turn to bypass | |||
| Load peak ratio | 3:1(max) | |||
| Battery For C1K/2K/3K | Type | Maintenance free valve regulated lead acid (VRLA) battery | ||
| Battery voltage | 36VDC/24VDC | 96VDC/72VDC/48VDC | 96VDC/72VDC/48VDC | |
| Battery number (standard type ) | 3*12V*7AH | 8*12V*7AH | 8*12V*7AH | |
| Backup time (Full load) | 6Mins | 9.5Mins | 7.5Mins | |
| Backup time (Half load) | 14Mins | 21Mins | 17.5Mins | |
| Recharge time | 90%capacity after 8 hrs charging | |||
| Long backup | C1KS/2KS/3KS | 36VDC, External | 96VDC, External | |
| Display | LED | Load level / Battery level / Battery mode / Line mode / Inverter , Bypass ,Over load , Fault | ||
| Audible Alarm | Battery Mode | Beeping every 4 seconds (re-settable) and every second when battery low | ||
| Overload | Beeping twice every second | |||
| Fault | Beeping Continuously | |||
| Communications | RS-232 Interface | With monitoring software | ||
| Working Environment | Surge protection | RJ-45 I/O port available for network or Fax/Modem | ||
| Working temperature | - 20°C~40°C | |||
| Humidity | 0-95% non-condensing | |||
| Product size | WxDxH (mm) | 405*145*220 | 455*195*330 | 455*195*330 |
| package dimension | WxDxH (mm) | 505*485*345 | 595*335*495 | 595*335*495 |
| package weight | Kg | 30/18 | 32/15 | 35/18 |
| REMARK | C*K --- Standard Type, C*KS---- Long Time Type. The 24VDC,72VDC and 48VDC are not normal model | |||
Product show
