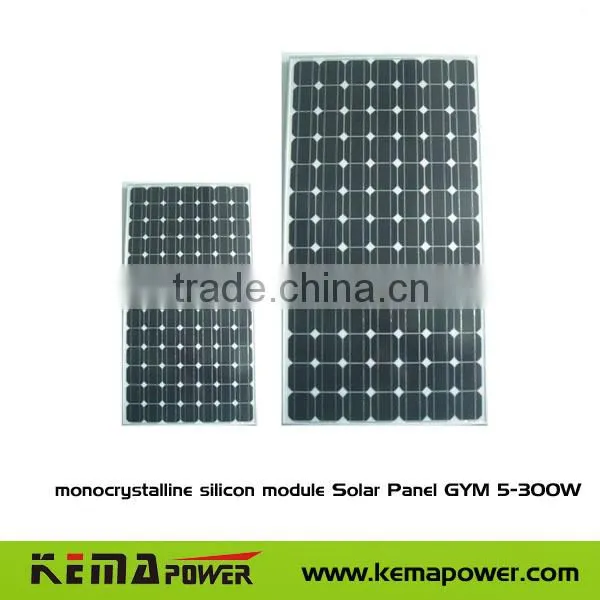

PV Module GYM 220-300W

Name: PV Module GYM 220-300W
Brand: KEMAPOWER
SKU: 112010221
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

KEMAPOWER

Model Number:

GYM 220-300W

Foshan Kemapower Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name KEMAPOWER

Model Number GYM 220-300W

Material Monocrystalline Silicon

GYM SERIES TECHNOLOGY SPECS

Temperature Coefficients of Isc(%)°C	0.04	Allowable Hail Load	23m/s ,7.53g
Temperature Coefficients of Voc(%)°C	-0.38	Junction Box Type	Pass the TUV Certificate
Temperature Coefficients of Pm(%)°C	0.047	Bypass Diode Rating(A)	12
Temperature Coefficients of Im(%)°C	0.04	Caple & Connector Type	Pass the TUV Certificate
Temperature Coefficients of Vm(%)°C	-0.38	Backing (Brand Type)	TPT
Temperature Range	-40eC to +85eC	Warranty	90% of 10 years,80% of 25 years.
Tolerance Wattage(e.g.+/-5%)	±5%	Standard Test Conditions	AM1.5 1000W/ 25 +/-2°C
Surface Maximum Load Capacity	2400Pa	FF (%)	70-76%

Model	Max power	Cell Size	Cell Array	Cell Efficiency	Max	Max	Short	Open	Dimension	Weight
	(W)	(mm)		(academic)	Power	Power	Circuit	Circuit	(mm)	(K)
					Current(A)IMP	Voltage(V) VMP	Current(A)ISC	Voltage(V)VOC
GYM220-60	220	156X156	6X10	15.50%	7.38	29.82	8.53	35.88	1650X992X45	21
GYM225-60	225	156X156	6X10	15.80%	7.44	30.24	8.55	36.12	1650X992X45	21
GYM230-60	230	156X156	6X10	16.10%	7.55	30.48	8.57	36.75	1650X992X45	21
GYM235-60	235	156X156	6X10	16.40%	7.69	30.54	8.58	36.84	1650X992X45	21
GYM240-60	240	156X156	6X10	16.70%	7.81	30.7	8.73	36.9	1650X992X45	21
GYM245-60	245	156X156	6X10	17.00%	7.9	31	8.82	37	1650X992X45	21
GYM250-60	250	156X156	6X10	17.30%	8.03	30.93	8.97	44.5	1650X992X45	21
GYM260-72	260	156X156	6X12	15.20%	7.46	34.9	8.18	43.7	1956X992X50	26
GYM265-72	265	156X156	6X12	15.50%	7.53	35.2	8.23	43.8	1956X992X50	26
GYM270-72	270	156X156	6X12	15.80%	7.6	35.4	8.26	43.9	1956X992X50	26
GYM275-72	275	156X156	6X12	16.10%	7.7	35.7	8.29	44	1956X992X50	26
GYM280-72	280	156X156	6X12	16.30%	7.73	35.9	8.32	44.2	1956X992X50	26
GYM285-72	285	156X156	6X12	16.50%	7.83	36.4	8.38	44.4	1956X992X50	26
GYM290-72	290	156X156	6X12	16.90%	7.86	36.9	8.42	44.8	1956X992X50	26
GYM295-72	295	156X156	6X12	17.20%	7.93	37.2	8.48	45	1956X992X50	26
GYM300-72	300	156X156	6X12	17.40%	7.98	37.6	8.52	45.3	1956X992X50	26
ATTENTION	OEM/ODM is welcome
ATTENTION	the specs are subject to change without notice at anytime
